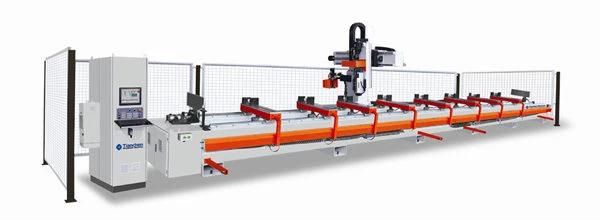

Aluminum Milling Machine Automatic Cutting Machine Facade Making Machine CNC Window Door Machine
Jinan Tianchen Smart Machine Co., Ltd.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Product Name：Aluminum Window Door Curtain Wall 3 Axis CNC Milli
- Material Type：Aluminium Profile
Base Info
- Model NO.：GCGZ-7000
- CNC Axis Numbers：3
- Control System：Siemens
- Cam Software：Mastercam
- Function：Milling Drilling Holes Slots
- Application：Curtain Wall Window Wall Fabrication
- Transport Package：Pallet
- Specification：11300x2350x2550mm
- Trademark：TIANCHEN
- Origin：China
- HS Code：8461409000
- Production Capacity：2000sets,Year
Description
Basic Info.
Model NO. GCGZ-7000 CNC Axis Numbers 3 Control System Siemens Cam Software Mastercam Function Milling Drilling Holes Slots Application Curtain Wall Window Wall Fabrication Transport Package Pallet Specification 11300x2350x2550mm Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/YearProduct Description
Aluminum Milling Machine Automatic Cutting Machine Facade Making Machine CNC Window Door Machine
Main Features ★ Applicable for milling and cutting processing for various irregular holes of aluminum window and door curtain
wall or industrial aluminum profile, and non-ferrous metal profile.
★ Able to realize milling and cutting for the upper surface multi-type of holes and slots
★ Adopting SIEMENS high quality CNC system and HSD high speed electrical spindle, with reliable performance.
★ Able to realize the three-axis simultaneous motion and two-axis separately interpolation.
★ Adopting cooling spraying system for cooling the tools, for improving the cutting tool service life and roughness
of the work parts.
★ The follow-up tool magazine supply 12 positions, able to change tools as the program requested.
★ Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.

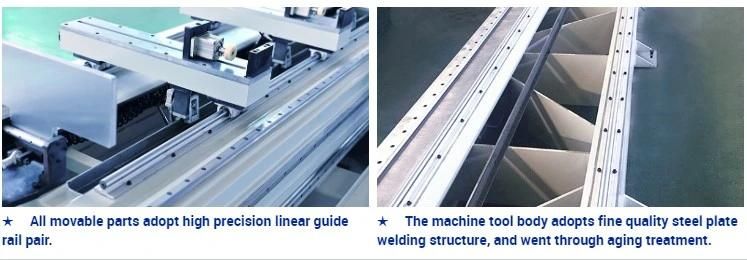

★ The machine tool body adopts fine quality steel plate welding structure, and went through aging treatment.
★ All movable parts adopt high precision linear guide rail pair.
★ A 9 meter extra length model can be customized
Technical Parameters| X-axis Range | 7000mm |
| Y-axis Range8 | 800mm |
| Z-axis Range | 320mm |
| X-axis Speed | 0~60m/min |
| Y-axis Speed | 0~24m/min |
| Z-axis Speed | 0~16m/min |
| Main shaft Rev./power | 0~18000rpm/7.5kw |
| Cutter Magazine | 12 cutter positions, cutters auto-change is available in the program |
| Cutter Max length | 135mm |
| Total Power | 12KW |
| Clamp Station | 8 |
| Work Area(W x H x L) | 500x250x7000mm |
| Contour Dimension (W x H x L) | 11300x2350x2550mm |
| Weight | about 4500kg |
