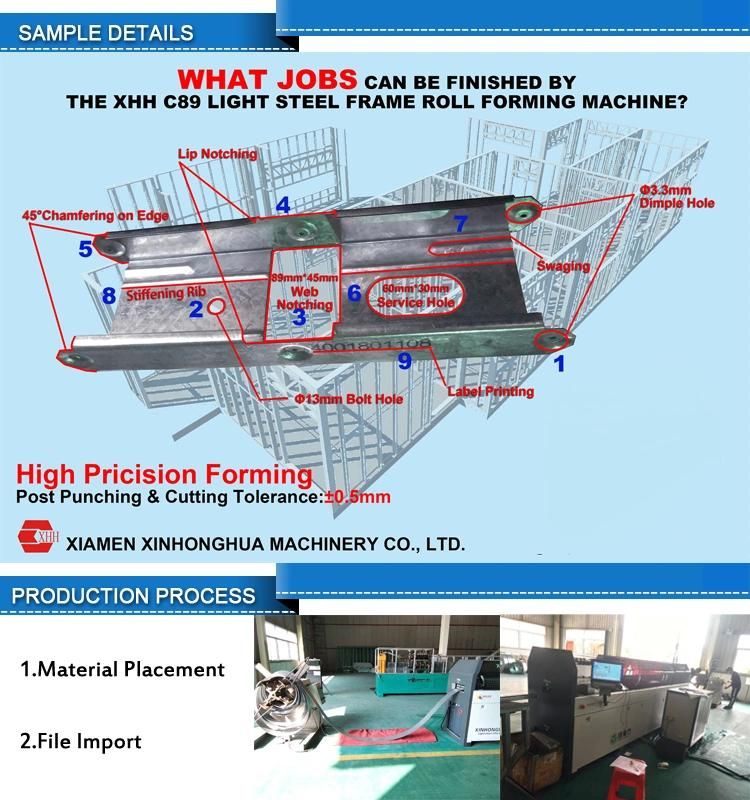

Light Gauge Steel Framing Machine for Prefabricated House
Xiamen Xinhonghua Machinery Co., Ltd.- Warranty：1 Year
- Certification：CE
- Customized：Customized
- Condition：New
- Control Type：CNC
- Automatic Grade：Automatic
Base Info
- Model NO.：C89
- Machine Color：Blue or as Your Request
- Name：Light Gauge Steel Framing Machine for Prefabricate
- Servo Motor Power：5.5kw
- Material Width：174mm
- Height of Purlin：38mm
- Effective Width：89mm
- Voltage：380V,50Hz,3pH
- Control System：PLC(Imported Brand)
- Material Thickness：0.55-1.2mm
- Material of Rollers：SKD-11
- Transport Package：Standard Packed for Export
- Specification：SGS
- Trademark：XHH
- Origin：Fujian, China (Mainland)
- HS Code：84552290
- Production Capacity：20sets,Moths
Description
(1) .Main Forming Machine;
(2) .Hydraulic Strip Uncoiler;
(3) .Hydraulic Punching Device;
(4) .Hydraulic Motor System;
(5) .PLC Computer Controlling System With Touch Screen;
(6) .Hydraulic Forming Cutter;
(7) .Automatic Printing Device;
(8) .Design Software;
(9) .Run Out Table;
(10) .Tools;
(11) .Operation Manual.
