Hydrostatic Testing Machine, Hydraulic Pressure Testing for Spiral Welded Pipe
Taiyuan Huaye Equipment Research Institute (Co., Ltd.)- After-sales Service:Available
- Warranty:1 Year
- Pipe Material:Carbon Steel
- Condition:New
- Customized:Customized
- Application:Industry
Base Info
- Type:Pipe Mill
- Pipe O.D.:508-1220mm
- Length:8-12m
- Capacity:75kw
- Max. Testing Pressure:1000t
- Pipe Wall Thickness:Max. 12mm
- Pipe Weight:Max 25 T
- Tensioning Beam Type:Rectangle Section Four-Stretching Beam
- Transport Package:Nude
- Trademark:HUAYE
- Origin:China
- Production Capacity:5-10sets,Year
Description
Basic Info.
Type Pipe Mill Pipe O.D. 508-1220mm Length 8-12m Capacity 75kw Max. Testing Pressure 1000t Pipe Wall Thickness Max. 12mm Pipe Weight Max 25 T Tensioning Beam Type Rectangle Section Four-Stretching Beam Transport Package Nude Trademark HUAYE Origin China Production Capacity 5-10sets/YearProduct Description

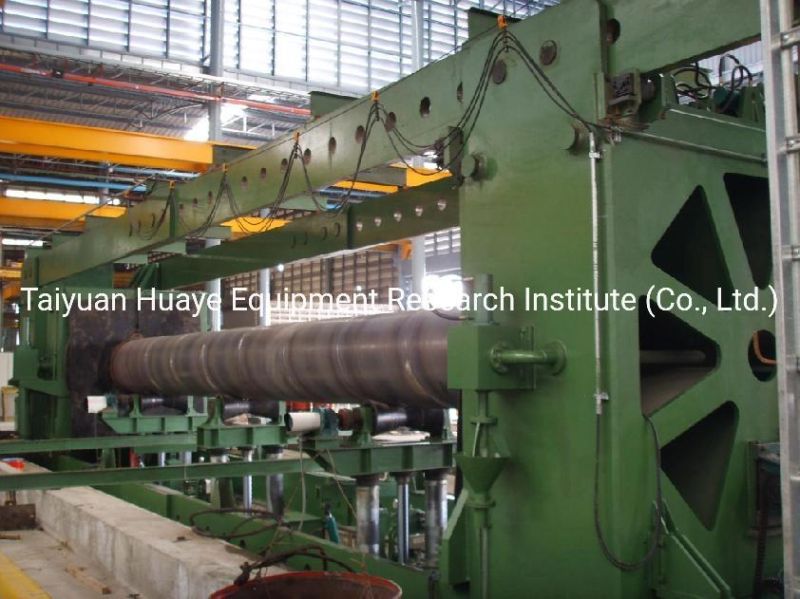

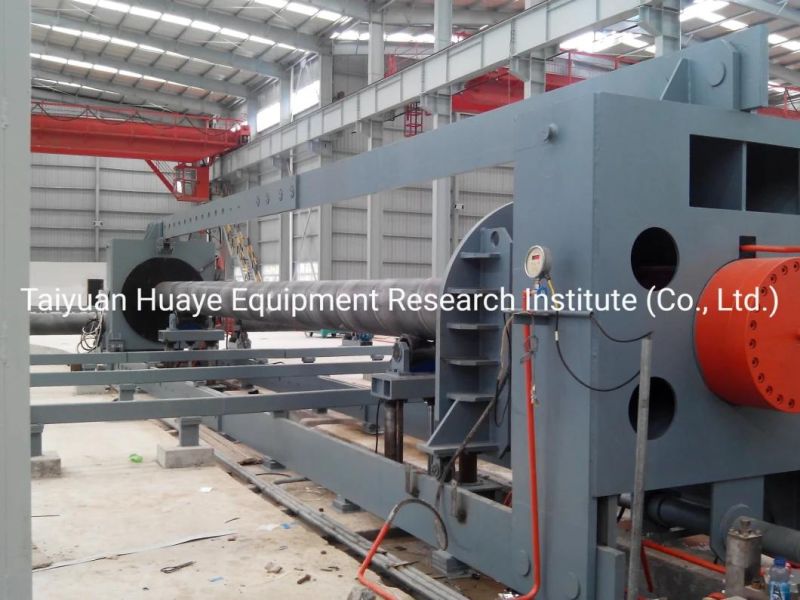

Hydrostatic testing machine for spiral welded pipeIntroduction
Hydrostatic testing machine for spiral welded pipe is mainly used to have a pressure test on spiral welded pipe or straight seam welded pipe. This hydrostatic tester uses water to inspect whether the steel has been welded properly or not, whether the steel is flawed or not and also what will be the maximum pressure that the stainless steel can sustain. There are three different testing sizes as light size for small tube, medium size and heavy size for large diameter pipe.
Equipment List
Hydraulic tester body
Main hydraulic cylinder
Hydraulic system
High & low pressure water systems
Electrical control system
Pre-buried and anchor bolt
Recording system with computer
Socket and spigot sealing mould
(Sealing and expanding)

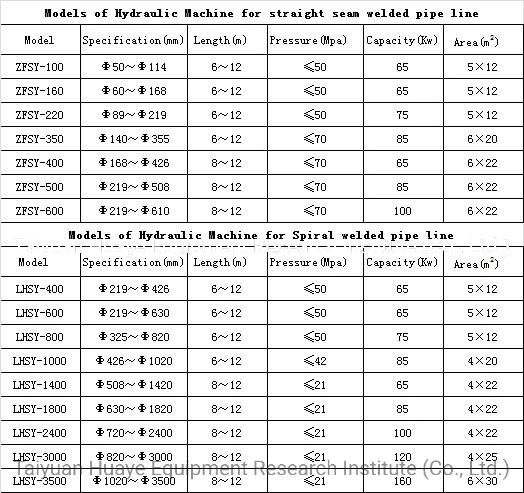

The major factors to determine the model a hydrostatic tester is listed as below.
Pipe diameter range
Max test pressure
Max test pressure at maximum pipe diameter
Pipe wall thickness
Pipe end finish (plain or beveled)
With these information, our experienced engineers will be able to determine the machine type, max hydraulic power, sealing type etc.
HUAYE has rich and deep technical accumulation to design various types of hydrostatic tester for the customer. No matter it's for extra large diameter, extra high pressure, extra-long length, or extra fast speed, HUAYE provides satisfying solution at most budgetary price.
