Qt4-25 Qt4-18s Hydraulic Concrete Block Machinery Paver Solid Hollow Brick Making Machine
Linyi Raytone Machinery Imp&Exp Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Certification：CE, ISO
- Customized：Non-Customized
- Automatic Grade：Semiautomatic
- Type：Hydraulic Shock
Base Info
- Model NO.：QT4-25 block making machine
- Mixer：Jq500
- Vibration Force：35.5kn
- Pallet Size：850*550*25mm
- Mould Period：25s
- Color：as Requested
- Weight：3t
- Mould：Heat Treated
- Welding：Carbon Dioxide Welding
- After-Sale Service：Engineer Avaible to Service
- Transport Package：Nude
- Specification：3700*2100*2330mm
- Trademark：raytone
- Origin：Shandong Linyi
- HS Code：84748090
- Production Capacity：20 Set,Month
Description

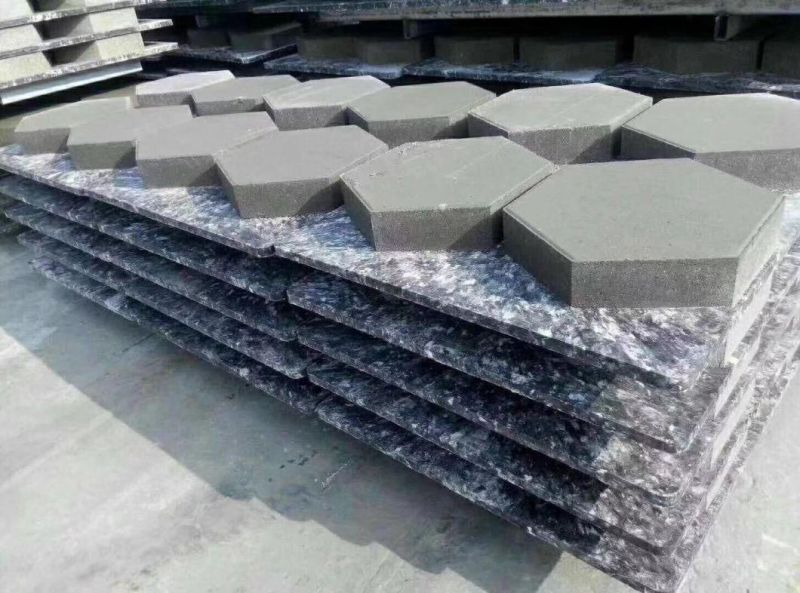

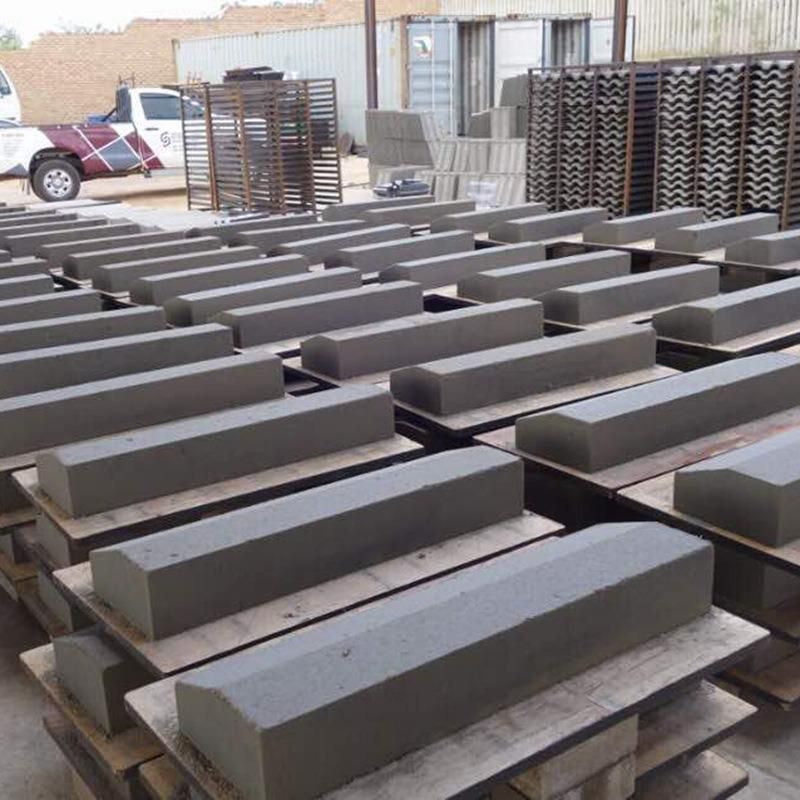

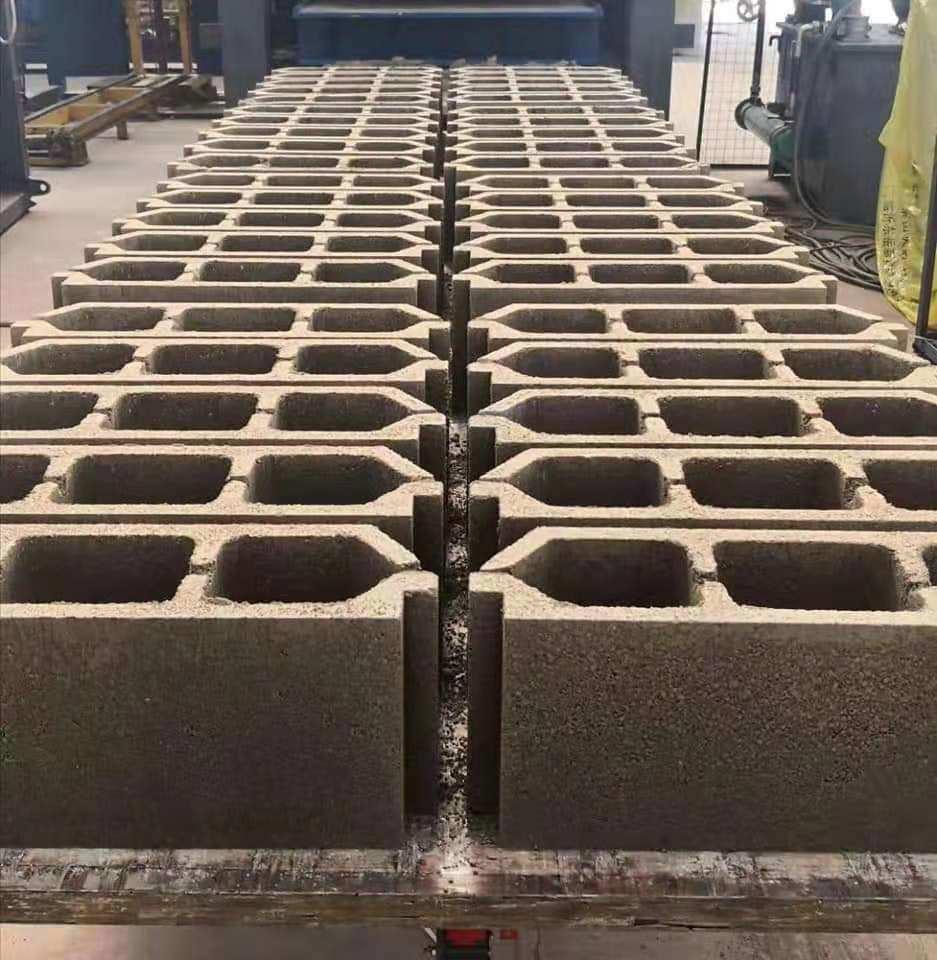

Theoretical production capacity Size(LxWxH) (mm) Forming Period (S) Pcs/ Mould Pcs/Hour Pcs/ 8 hours (1) hollow block 400*250*200 25 3 432 3456 (2) hollow block 400*200*200 25 4 576 4608 (3) hollow block 400*150*200 25 5 720 5760 (4) hollow block 400*100*200 25 7 1008 8064 (5) Solid Brick 240*53*115 25 26 3744 29952 (6) Porous Brick 240*115*90 25 12 1728 13824 (7) Curbstone 500*200*300 25 2 288 2304 (8) "I" shape paver brick without color 200*163*60 25 8 1152 9216 (9) "S" Shape Paver Brick without color 225*112.5*60 25 12 1728 13824 (10) Holland Brick without color 200*100*60 25 14 2016 16128 (11) Square Paver without color 250*250*60 25 3 432 3456
What is the diesel generator capacity for this QT4-25 automatic cement block machine line ?
It needs 50 KVA diesel generator;
How many workers are needed for this automatic QT4-25 block machine line?
Normally 6 workers are needed: 1 worker feeds raw materials into the concrete mixer. 1 worker feed brick pallets and operate the host brick machine; 2 workers carry the finished blocks to curing area; 2 workers watering the blocks and stack them after dry;
What is the main electric cable size from the electricity transformer:
Need to use copper 3*25+1*16mm electric cable for 380V 3 phase;
Or 3*35+1*16mm electric copper cable for 220V 3 phase;
What is the basic raw materials proportion for concrete blocks?
Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
Welcome contact us if you are interested in our block machine.
6. FAQ about QT4-25 automatic Cement Block Machine
What is the diesel generator capacity for this QT4-25 automatic cement block machine line ?It needs 50 KVA diesel generator;
How many workers are needed for this automatic QT4-25 block machine line?
Normally 6 workers are needed: 1 worker feeds raw materials into the concrete mixer. 1 worker feed brick pallets and operate the host brick machine; 2 workers carry the finished blocks to curing area; 2 workers watering the blocks and stack them after dry;
What is the main electric cable size from the electricity transformer:
Need to use copper 3*25+1*16mm electric cable for 380V 3 phase;
Or 3*35+1*16mm electric copper cable for 220V 3 phase;
What is the basic raw materials proportion for concrete blocks?
Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
Welcome contact us if you are interested in our block machine.
