• Model NO.：QT4-15 brick making machine
• Product：Concrete Block Solid Brick Color Paver Brick
• OEM Service：Provided
• Capacity：7500PCS for 400*200*200mm Hollow Block
• Power of Host Machine：68.4kw
• Viberating Force：55-75kn
• Pallet Size：960*550*25
• Mould Period：15-20 S,Mould
• Moulding Area：1016*600
• Forming Method：Hydraulic Pressing and Table Vibrating
• Processing：Brick Molding Machine
• Dimension of Host Machine：4000*1800*2800
• Weight of Host Machine：5510kg
• Workshop Area：250-300m2
• Land Area：1200-2500m2
• Water Consumption：5-8t,Day
• Transport Package：Container
• Specification：QT4-15
• Trademark：Raytone Machinery
• Origin：Linyi, China
• HS Code：84748090
• Production Capacity：7500PCS,Day for 400*200*200mm Hollow Block

Basic Info.

Model NO. QT4-15 brick making machine Product Concrete Block Solid Brick Color Paver Brick OEM Service Provided Capacity 7500PCS for 400*200*200mm Hollow Block Power of Host Machine 68.4kw Viberating Force 55-75kn Pallet Size 960*550*25 Mould Period 15-20 S/Mould Moulding Area 1016*600 Forming Method Hydraulic Pressing and Table Vibrating Processing Brick Molding Machine Dimension of Host Machine 4000*1800*2800 Weight of Host Machine 5510kg Workshop Area 250-300m2 Land Area 1200-2500m2 Water Consumption 5-8t/Day Transport Package Container Specification QT4-15 Trademark Raytone Machinery Origin Linyi, China HS Code 84748090 Production Capacity 7500PCS/Day for 400*200*200mm Hollow Block

Product Description

                                         QT4-15 Automatic Concrete hollow block Making Machine
1.QT4-15 hollow block Making Machine Generally Description
QT4-15 automatic hollow block making machine is a popular hollow block machine, it makes different hollow blocks, paver bricks, curbstones, under different hollow block moulds, paver brick moulds, the hollow block mould is changeable, the hollow block machine line is automatic, it is fit for middle investors for starting concrete hollow block factory.
QT4-15 hollow block machine Capacity: 7680 pieces of 8 inch hollow hollow blocks per shift of 8 hours;
QT4-15 automatic hollow block machine line Price Range: 16100USD - 29300USD, the hollow block machine price is as per the extra hollow block moulds quantity and brick pallets quantity, etc;

2. QT4-15 Automatic hollow block Machine line Basic requirements for Production Start:
the following information for the QT4-15 hollow block machine is theoretically for reference, the real site production data may be small different as per different raw materials etc.

land area	1200-2500 Square Meters	Water Consumption	4.8 T/day
Workshop area	200 Square Meters	Electricity Voltage &Frequency	220V/380V/415V; 50HZ/60HZ
Labors Quantity	5 workers	Power Consumption	68.4KW*8 Hours= 547.2KWH;
Cement Consumption	12.6 Tons per day	Sand consumption	50.4 tons per day
		Crushed stones consumption	62.4 tons per day

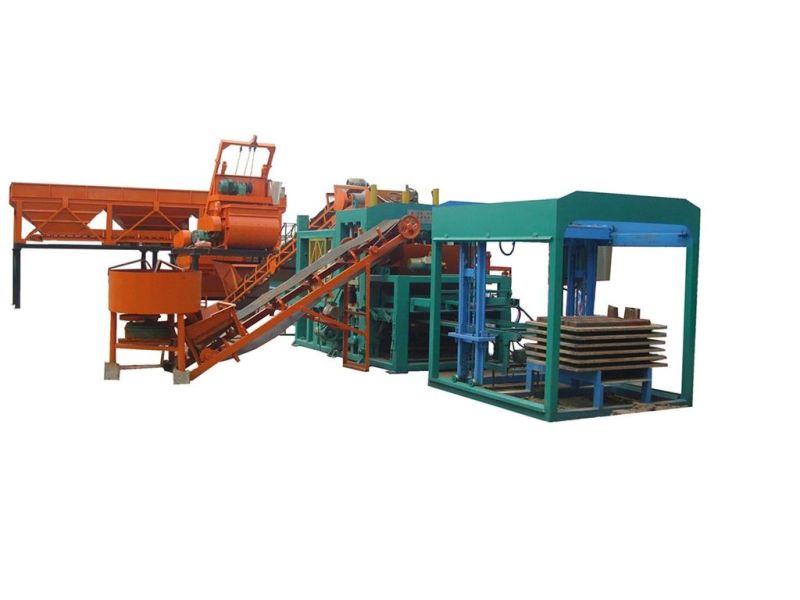

3. Detailed Introduction of each single machine from QT4-15 Automatic Concrete hollow block Machine Line

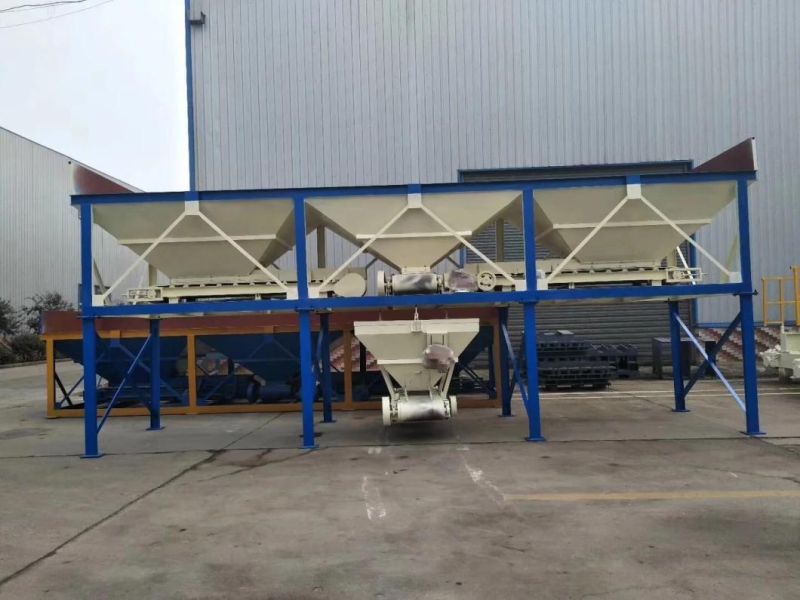

(1) PLD1200 batching machine of TWO hoppers for QT4-15 hollow block machine

dimension	6500*2050*2900mm	weight:	2800kg
scale capacity	1200L	productivity:	60m3/h
hopper volume	2*3m3	power: 9kw	3*3kw
max weighing value	2000kg	Aggregate types:	2 types
feeding height	2600mm	Belt conveying speed:	1.25m/s
Batching accuracy	±2%

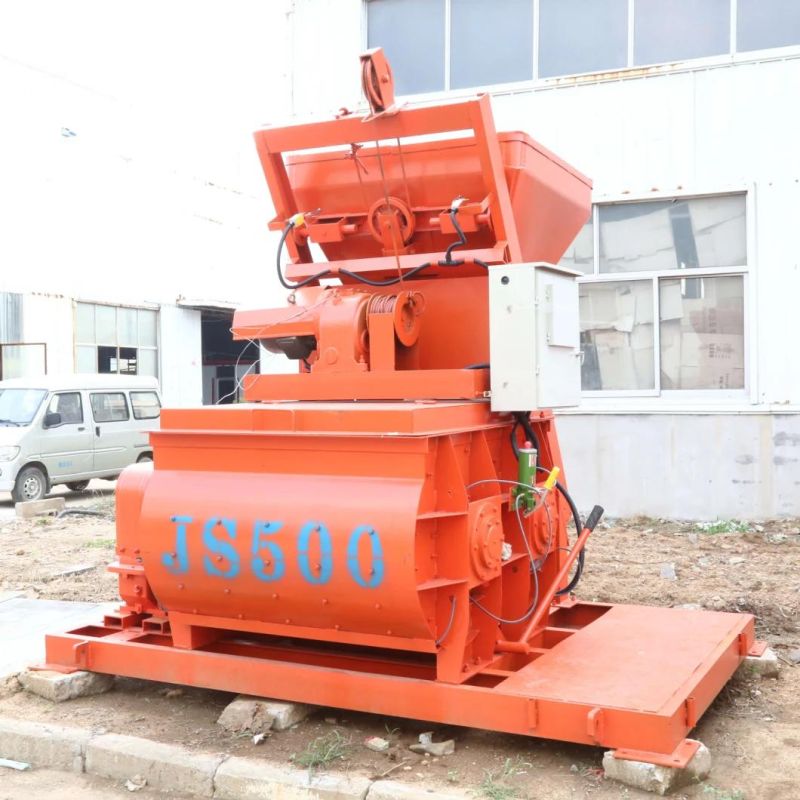

(2) JS500 Twin Shaft Concrete Mixer for QT4-15 hollow block machine line

Discharging Volume	500L	Capacity	25 M3/h
Charging Volume	800L	Aggregate Size	≤60/80mm
Working Circle	60S	mixing motor	18.5KW,
Mixing Speed	35R/M	pump motor	0.75kw
Mixing Blade	2*7	Dimension	3030*2300*2680mm
		Machine weight	4000kg

There are two models of JS500 concrete mixer for QT4-15 hollow block machine:
This is the first one with elevator hopper, this is mainly used for the hollow block machine line without cement silo, workers can put cement in bags into the elevator hopper by manual.

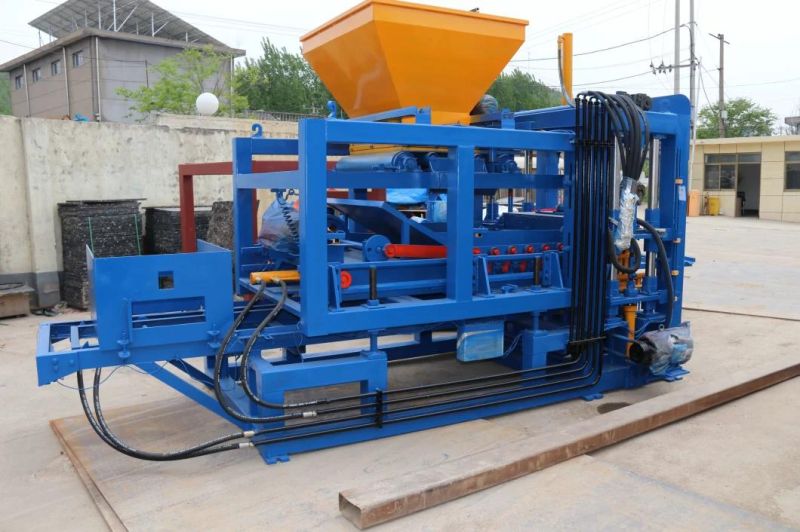

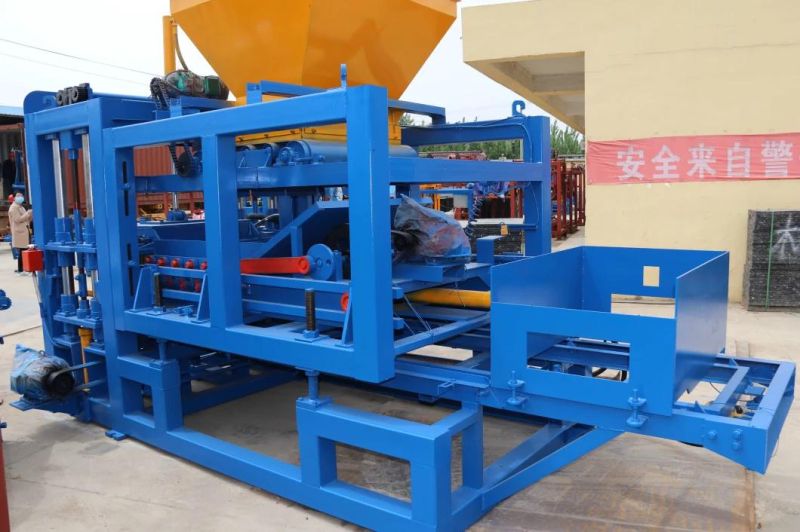

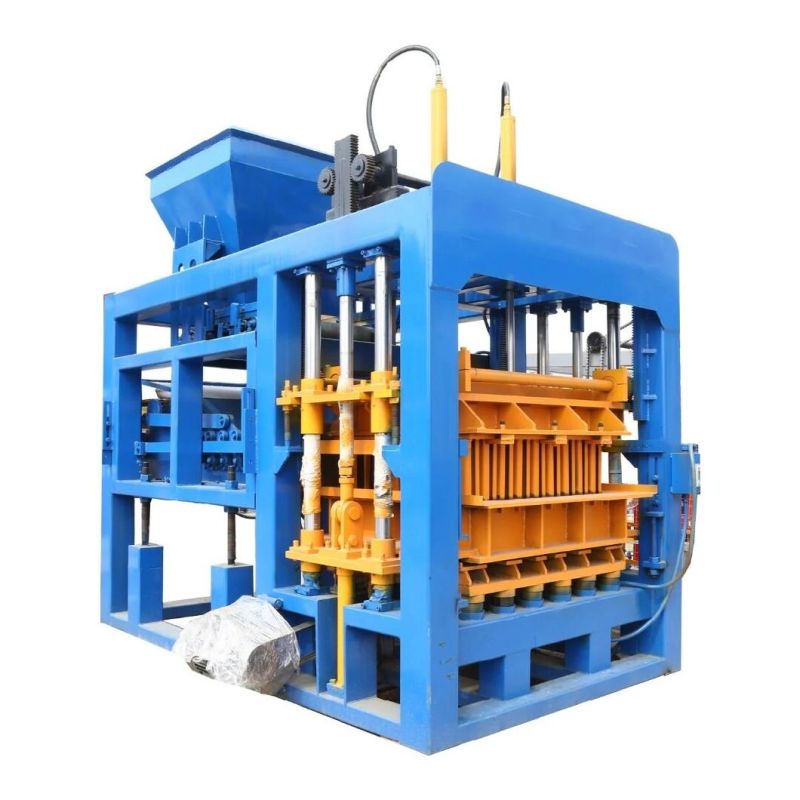

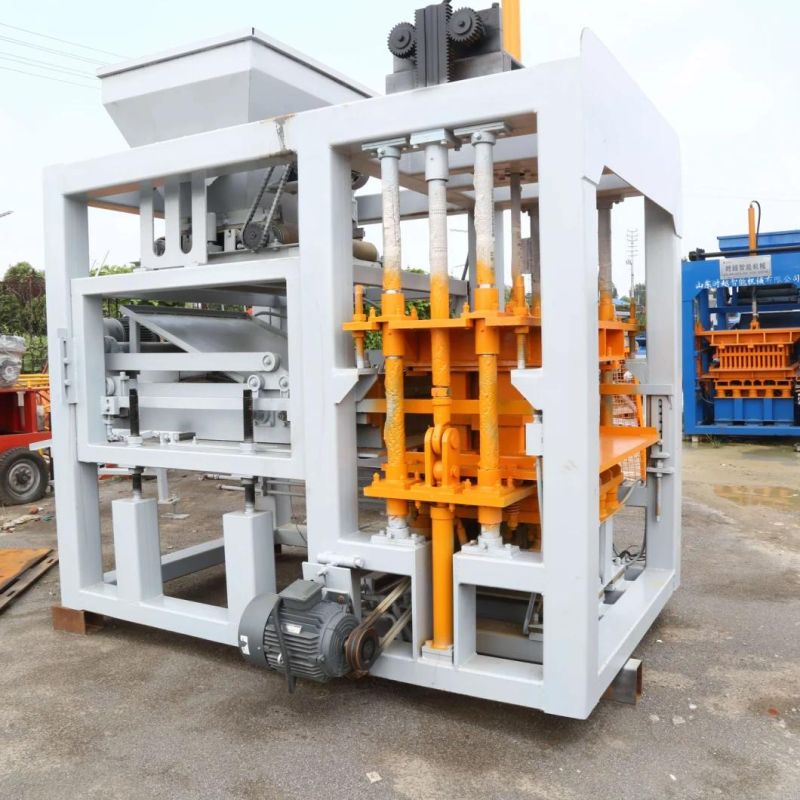

(5) Model: QT4-15 Host Brick Machine
For QT4-15 hollow block making machine, the main structure is using 15CM square steel tube, thickness is 8 mm; strong structure makes the hollow block machine more stable and durable.
The following is QT4-15 automatic hollow block machine main specifications:

Dimension of host machine	3650*1560*2400mm	water Consumption	4.8 T/day
Weight of the host machine	5.5T	Voltage	customized
Moulding period	12-20S	Total required machine power	68.4
pallet size	960*550*25mm	Diesel Generator capacity	75-100KVA
Vibration force	55-75KN	workshop area	200-300 m2
labour	5	Land Area	1200-2500 m2

(6) PLC control Panel for QT4-15 Host Brick Machine
The PLC control system is combined by complete logic control, production program, malfunction diagnosis system, also it can be added a remote control device to help the client to set some figures on the PLC control panel;
(7) Model: Hydraulic Station for QT4-15 hollow block Machine line
The electric motors of QT4-15 block machine hydraulic station is using 11KW;
The electromagnetic valve is a unique proportional valve multi-channel control system, all-round adjustment of any action, so that the machine is running more reliable and sensitive, it is made from Taiwan CYLCA brand.

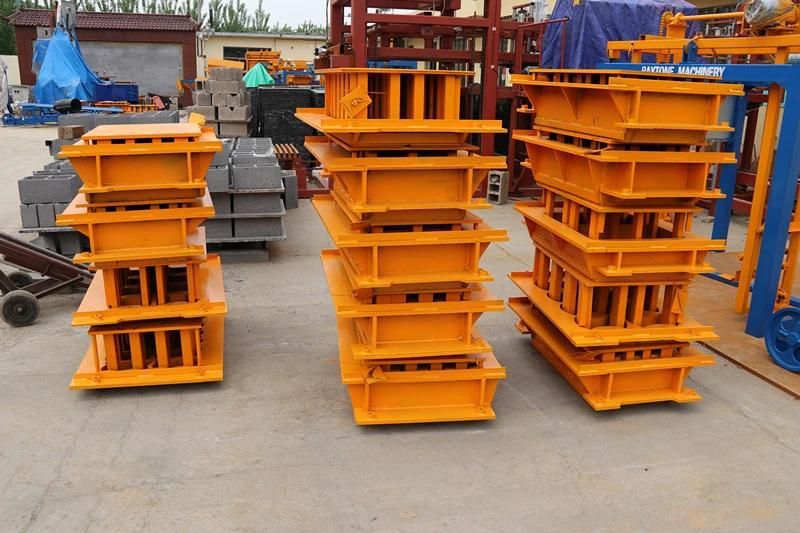

(8) Block moulds for QT4-15 automatic hollow block machine
All RAYTONE automatic hydraulic block machine moulds are using 65 # manganese steel, via heat treatment, linear cutting for paver bricks, and carburization, the block mould life cna reach ten thousand times.
10) Model: double hollow block Pallets Stacking Machine for QT4-15 hollow block Machine
Power: 3.0KW
Function: to Stack the finished hollow blocks to several layers, make hollow blocks are ready for transport by diesel forklift or electric forklift, except the double pallet stacking machine, there is also three pallet stacking machine for choice;
4. RAYTONE hollow block machine manufacture advantages
(1) Guarantee: RAYTONE hollow block machine factory gives two years guarantee for the hollow block machines except easy wearing parts;
(2) RAYTONE block machine factory is very professional in block machines making, has 20 years more experience; also started the block machine export since the year of 2014.
(3) RAYTONE block machine factory is aim to provide competitive price to the users to help the investors to develop their business.
(4) After-sales service: RAYTONE hollow block machine manufacture provides good after-sale service with patience.
