C Purlin Roll Former Metal Cold Roll Forming Machine

Hangzhou WILLING INTERNATIONAL CO., LTD.
  • Warranty：1 Year
  • Certification：CE
  • Customized：Customized
  • Condition：New
  • Control Type：Artificial
  • Automatic Grade：Semi-Automatic

Base Info

  • Model NO.：Purlin Roll Former
  • Type：C Purlin Roll Forming Machine
  • Thickness：1.5-3.0
  • Material：Steel Strip
  • Transport Package：Sea Worthy Fixed by Wire Rope, Wooden Blocks
  • Specification：as required
  • Trademark：WILLING INT′L
  • Origin：China
  • HS Code：84552210
  • Production Capacity：20 sets,month

Description

Material specificationgalvanized steel and carbon steel.Thickness2.0mm to 3.0mm.Main Motor Power15 kw.Hydraulic Power5.5 kw.Web WidthChangeable.Yield stress235 Mpa~550MpaRoll Forming Speed12 -15 m/minute.Cutting Tolerance+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).Manual UncoilerMax. capacity: 4000kgs.Coil Inner Diameter508mm.Voltage380V, 3 phase, 50HZ; or as per customer's requirement.Numbers of Stations17 stations, with 4+5 straightening rollers.Type of CuttingStop to Cutting, Post Cut, no blanking cut
Material of Main Equipment
 Roller MaterialGCr15 bearing steel, with quenching treatment.Active Shaft MaterialHigh grade S45C carbon wrought steel, diameter 80mm.Electric ElementsPLC control console, touch screen and transducer, from Mitsubishi, Japan.
Other elements, from Schneider, Germany.Cutter BladesCr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.Punching DieCr12 mold steel with quenching treatment.
Working Flow
Uncoiling---Sheet Guiding---Straightening & Levelling---Hole Punching---Measuring Length &Shearing---Roll Forming---Sheet to support table

Standard Equipment of Machine1)Manual Uncoiler, 4-ton1 set2)Infeed Guide1set3)Straightening Device  1set4)Hole Punching Device1set5)Pre-cut Device   1set6)Roll Forming Station1set7)Rectification Device1set8)Hydraulic Station  1set9)PLC Control Console1set10)Product Support Table2 sets11)Other Spare Parts1 box

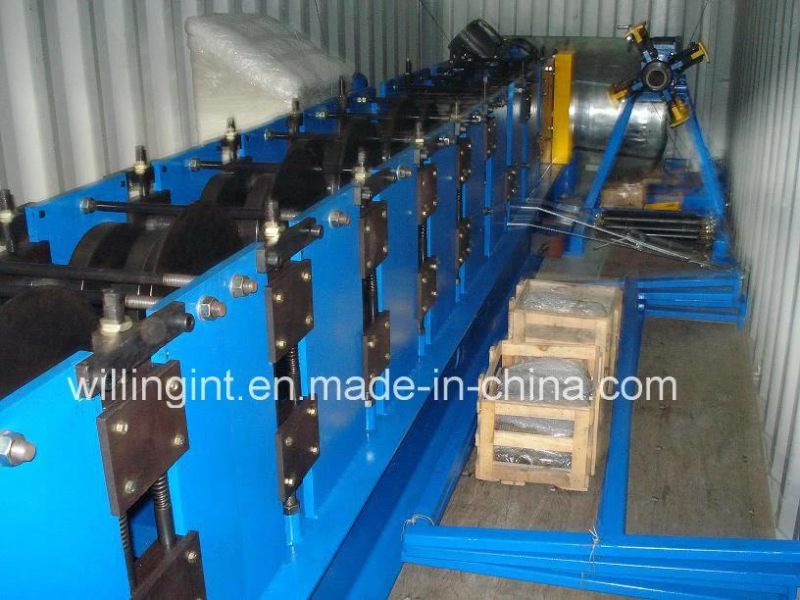

Packaging & Shipping
1.One 40ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.
C Purlin Roll Former Metal Cold Roll Forming Machine

FAQ

  1. Q:Are you a manufacturer?
  2. A:Yes absolutely. Welcome a lot for your visiting to us.

  3. Q:What's the delivery time?

    A:Normaly will take 60days

  4. Q:Do you have after-sale support?

    A:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

  5. Q:Is there quality control when manufacturing the lines?

    A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

  6. Q:What's your strength comparing to the other supplier?

    A:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
