Aluminum Window Door Frame Profile End Milling Machine
JINAN YUEFENG MACHINERY CO., LTD.- Condition:New
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:not CNC
- Voltage:380V
- Model:Lxdb-250
Base Info
- Model NO.:LXDB-250
- Input Voltage:380V 50Hz
- Input Power:6.6 Kw
- Air Pressure:0.5~0.8MPa
- Air Consumption:150L,Min
- Motor Rotation Speed:2800r,Min
- Worktable Range:0~1050mm
- Max Processing Hole:40mm
- Milling Cutter Diameter:250mm
- Adjustment Range:0~85mm
- Transport Package:Plastic Film or Depends on Customers
- Specification:2300*1200*1700mm
- Trademark:Yuefeng
- Origin:Jinan Shandong, China
- HS Code:8477800000
- Production Capacity:25 Sets,Month
Description
Basic Info.
Model NO. LXDB-250 Input Voltage 380V 50Hz Input Power 6.6 Kw Air Pressure 0.5~0.8MPa Air Consumption 150L/Min Motor Rotation Speed 2800r/Min Worktable Range 0~1050mm Max Processing Hole 40mm Milling Cutter Diameter 250mm Adjustment Range 0~85mm Transport Package Plastic Film or Depends on Customers Specification 2300*1200*1700mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 25 Sets/MonthProduct Description

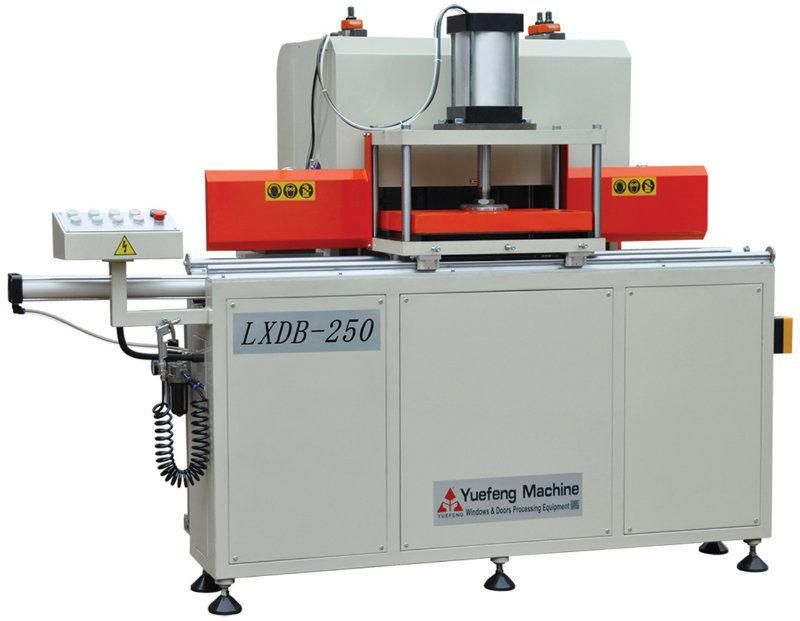

LXDB-250 End Milling Machine> Used for end milling of transom and door frames in aluminum and PVC profiles.
> Process multi-piece profiles in one clamp results high efficiency.
> Convenient tool guard adjustment, can be meet different processing requirement.
> Can install vertical end miller according to customer requirements.
> Airdraulic damping cylinder adopted in feeding system, gives stable velocity.
> It has features of easy operation, reliable performance, advanced technique and convenient maintenance.
Technical Parameter:
Model | LXDB-250 |
Input voltage | 380V 50Hz |
Input power | 6.6 Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 150L/min |
Motor rotation speed | 2800r/min |
Worktable range | 0~1050mm |
Max processing hole | 40mm |
Milling cutter diameter | φ250mm |
Adjustment range | 0~85mm |
Overall dimension | 2300×1200×1700mm |
