Export Standard Steel Sheet Roof Tile and Wall Panel Roll Forming Making Machine

Botou Huikeyuan Engineering Control Co., Ltd.
  • Certification：ISO9001: 2000, Ce, SGS
  • Condition：New
  • Main Motor Powe：5.5kw
  • Voltage：380V
  • Roller Station：13-16stations
  • Diameter of Principal Axis：80mm

Base Info

  • Model NO.：HKY-roll Forming Machine
  • Thickness of Material：0.2mm-1.0mm
  • Type：Steel Tile Roll Forming Machine
  • Transport Package：Export Packing
  • Specification：9.2*1.5*1.4M
  • Trademark：HKY
  • Origin：China
  • HS Code：8474801000
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. HKY-roll Forming Machine Thickness of Material 0.2mm-1.0mm Type Steel Tile Roll Forming Machine Transport Package Export Packing Specification 9.2*1.5*1.4M Trademark HKY Origin China HS Code 8474801000 Production Capacity 500sets/Year

Product Description

Export standard steel roof tile and wall panel roll forming machine, cold roll formig machine, steel profile roll forming machine

Components:
The De-coiler
Coil Sheet Guiding and Adjusting Equipment
Film Covered Device
Main Roll Forming System
Cutting Device
Hydraulic Station
PLC Control System
Run-out Table

Technical Parameters
1 Main motor power:5.5KW
2 Hydraulic station power:4KW
3 Hydraulic oil pump:CB-E310
4 Sprocket chain: P-25.4
5 Roller station: 16
6 Material of Main Shaft: High Grade #45 Steel, Heat Treatment
7 Diameter of principal axis: 80MM (add a key between axle and roller to fix)
8 Material of roller: C45steel hard chrome plating
9 Processing speed: 15m/min
10 Thickness:0.2-1.0mm
11 Installation dimension about(L*W*H):9.2*1.5*1.4M
12 Total weight: about 6.6T
13 Equipment parts includes: decoiler (capacity 8t), roll forming system, hydraulic system, PLC frequency conversion control system, the sensor of length, cutting system.
14 The temperature range of working line: -35--50

We can also design and produce as per your request!

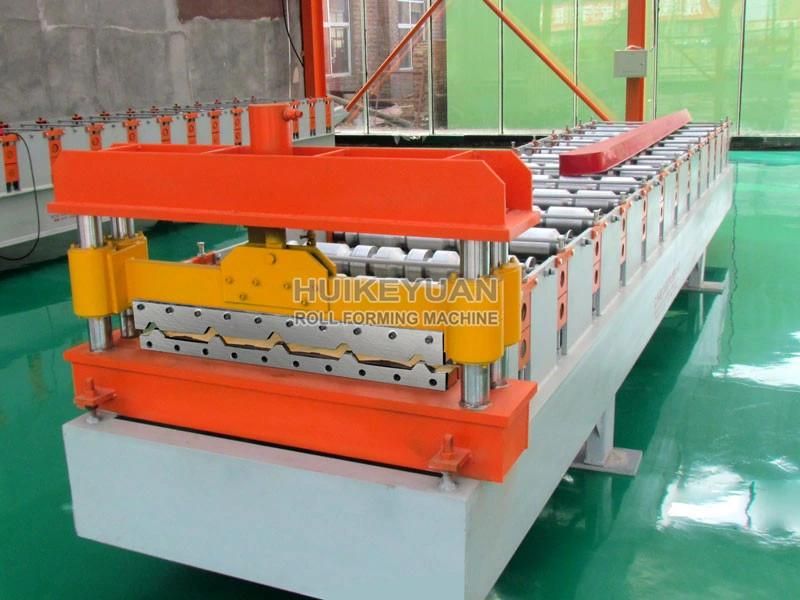

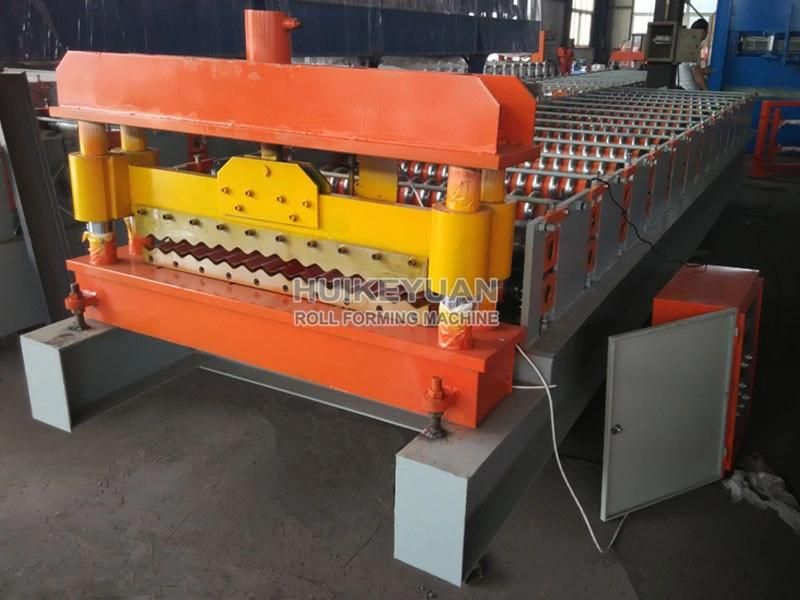

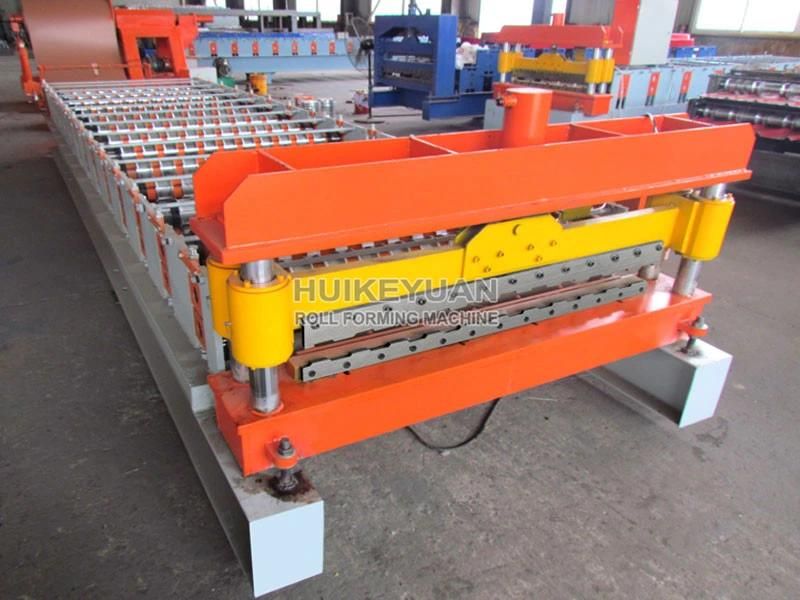

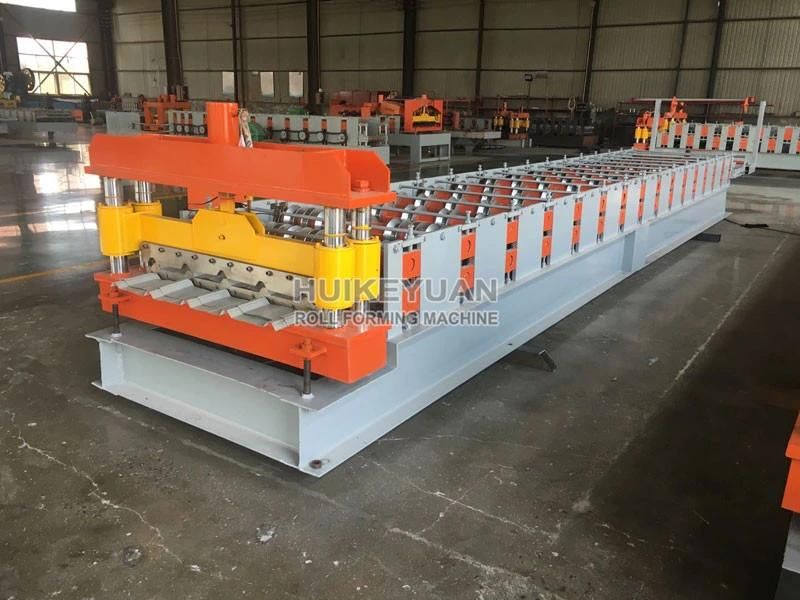

Pictures of HKY Roll Forming Machine

Export Standard Steel Sheet Roof Tile and Wall Panel Roll Forming Making Machine
Export Standard Steel Sheet Roof Tile and Wall Panel Roll Forming Making Machine
Export Standard Steel Sheet Roof Tile and Wall Panel Roll Forming Making Machine
Export Standard Steel Sheet Roof Tile and Wall Panel Roll Forming Making Machine

Welcome your enquiries and visit!

Advantage of our roll forming machine machine
High quality
Lower cost
Durableness
High efficiency
Reliable working
Low failure rate
Low energy consumption
Trouble free after sales service
