• Model NO.：HGM
• Motor Type：AC Motor
• Application：Mine
• Condition：New
• Type：Grinding Mill
• Motor Power：145-430(Kw)
• Rotationl Speed：135-240(r.p.m)
• Materials：Mineral
• Brand Name：Clirik
• Capacity(T/H)：0.5-30t,H
• Model Number：Hgm
• Color：as Request
• Control System：PLC
• Motor Brand：Siemens
• Customer Visit：Warmly Welcome
• Market：Global
• Transport Package：Standard Container
• Specification：CE
• Trademark：CLIRIK
• Origin：Shanghai
• HS Code：84742090
• Production Capacity：0.5-45t,H

ModelHGM80HGM90HGM100HGM125HGM168LRing Diameter(mm)800900100012501680Ring Number (PCS)33-444     4Roller Number(PCS)18-2124-2928-3630-4430-40Main Shaft Speed (r. p. min)230-240 200-220180-200135-155120-130Input Size (mm)≤10≤10≤15≤15≤20Finished Size (um/mesh)74-5
(200-2500)74-5
(200-2500)74-5
  (200-2500)100-6
 (150-2000)100-9
(150-1500)Capacity (t/h)0.4-4.50.6-6.51-92-163.8-30Outlet Size L*W*H (m)13.9*4*6.214.7*4.8*7.218*4.6*8.614*9*10.2526.3*7.5*11.9 Application of  Powder Grinding Mill Stone Powder Making MachineHGM Series powder grinding mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

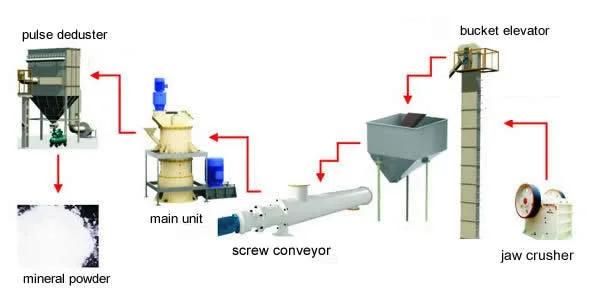

Work Principle of Powder Grinding Mill Stone Powder Making MachineHGM series Quartz grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.                       Features of Powder Grinding Mill Stone Powder Making MachineHigh EfficiencyUnder the same finished final size and the same motor power, the capacity of powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.Long lifecycle of spare partsThe ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.High safety and reliabilityAs no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.High fineness, flexible adjustmentThe final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.Environment-friendlyThe application of pulse bag filter and muffler greatly alleviates dust pollution and noise.Advanced intelligent speed control deviceConvenient adjusting, more uniform particle size.

About Shanghai Clirik

We are a creative team. Since the establishment, Clirik Machinery has regarded " All is for clients" as its service goal and has provided high-quality, high-taste, high-efficient and all-around-way service for its clients.

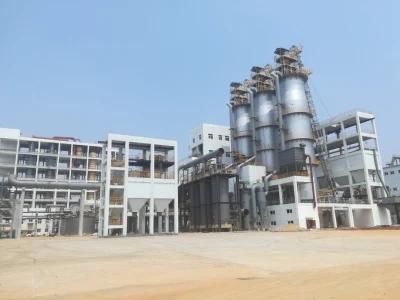

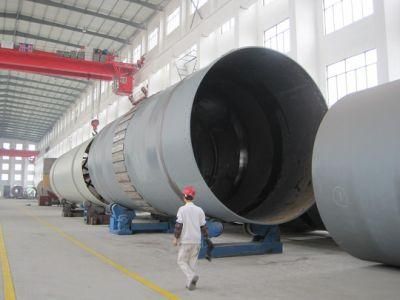

Our Work Site


Customer Visit


Q&A

1. What advantages does your grinding mill have?
-The main advantage of our gypsum grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your grinding mill?
---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

3.How many years have you been manufacturing the machine?
---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
