• Model NO.：CZ Purlin Machine
• Usage：Roof, Wall, Floor, Building Material
• Transmission Method：Chains
• Material：Gi PPGI Aluminum
• Thickness：2.0-3.0mm
• Type：CZ Purlin Forming Machine
• Roller Material：Bearing Steel
• Shaft Material：45#
• Voltage：380V 50Hz, 3pH or as Request
• Speed：8-12m,Min
• Control：PLC Control
• Screen：Text or Touch
• Serivice：Engineer Installing
• Size：C 80-300 Z :100-300
• Frame：350h
• Side Plate：14mm
• Control Box Brand：Delta
• Service：Online Teach
• Transport Package：Fit for Container
• Specification：CZ purlin machine
• Trademark：RFM
• Origin：Hebei China
• HS Code：84552210
• Production Capacity：20set,Month

Overview Drawing /Profile

Product Description

Metal Steel CZ Purline Roll Forming Machine

1

Suitable raw material

PPGI/PPGL/GI/GL Steel Coils

2

Thickness of coil sheet

2-3mm

3

Punching device

round hole or elliptical hole

4

Effective width

C:80-300mm
Z:100-300mm

5

Under frame

350H-beam

6

Diameter of Soild shaft

80mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway

7

Roller

Gcr15, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8

Thickness of middle plate

18mm

9

Forming stations

16

10

Drive type

By chain(1.5 inch) link bearing model 6212

11

Power of main motor

11kw with Cycloidal reducer,

12

Power of pump station

5.5kw,

13

Forming speed

About 15-20m/min

14

Hydraulic cutting

Controlled by PLC

15

PLC

DELTA, TAIWAN / Mitsubishi, Japan

16

Material of cutting blade

Cr12Mov, quenching 58-62ºC

17

Frequency converter

It has the advantage of slowing down before cutting,

to ensure thelength accuracy(±1mm, far better than

industrialstandard ±3mm).

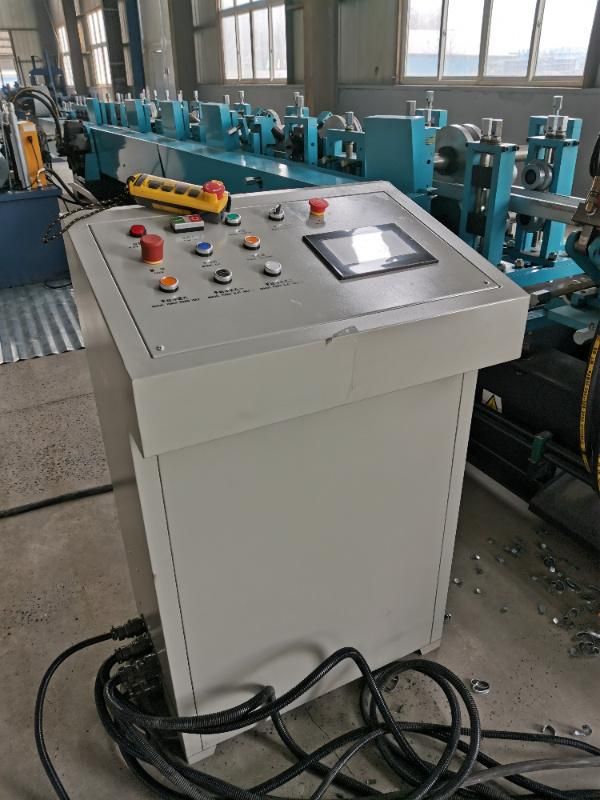

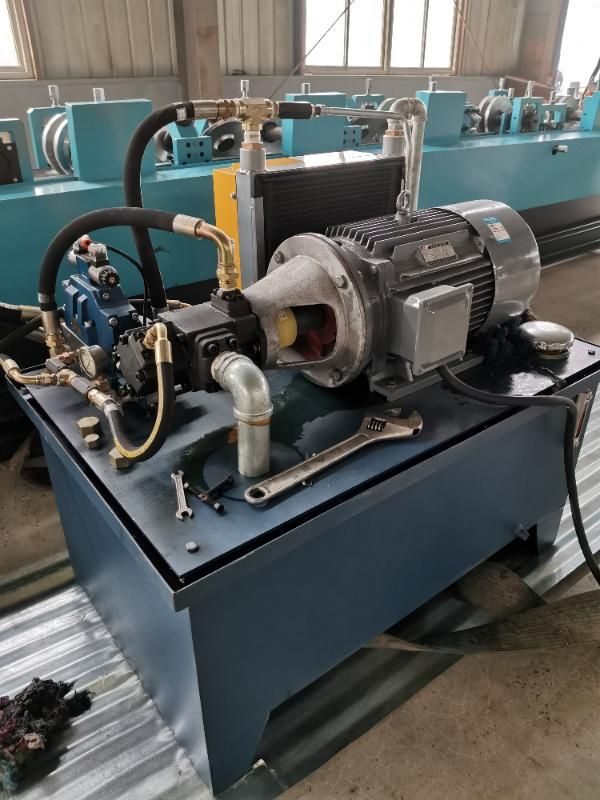

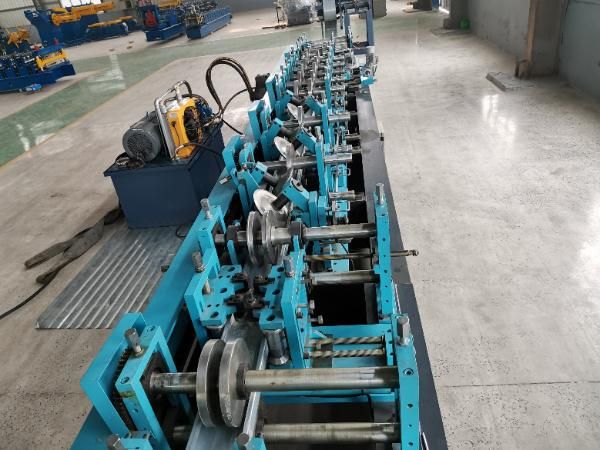

            Feeding                                    Forming                                                    Cutting Control BOX                                                                    Oil pump




3)After-Sales Service

1. we can produce the special machine,send your drawing to us,we can design for you.



2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.



3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.



The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.



4. engineers available to service machinery overseas.



5. if you come to visit our factory,we can book the room for you, car pick up to send.



Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!



The real data, the most professinal foreign trade team, your best trustable partner.
