Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：DX 820,840
  • Name：Double Layer Glazed Tile and Ibr Sheet Roll Formin
  • .Weight Capacity of Decoile：5 Ton
  • .Raw Material /Feeding Sheet Material：Colored Steel & Galvanized Steel
  • Roller Material：45# High Grade Steel
  • Kind of Drive：Chain Drive
  • Cutting System：Automatic Hydyaulic Cutting
  • Cutting Blade Material：Cr 12 High Grade Steel
  • Frame Material：350 H-High Grade Steel
  • Control System：PLC Control System with Touch Screen
  • Total Power：4+4 Kw
  • Roller Stations：13+13
  • Speed of Production：2-4m,Min
  • Thickness of Colored Steel：0.3-0.8mm
  • Feeding Width：1000mm
  • Effectiv Width：820mm, 840mm
  • Transport Package：Nude
  • Specification：6800*1400*1400mm
  • Trademark：dixin
  • Origin：China, Hebei, Botou
  • HS Code：84552210
  • Production Capacity：1000sets,Year

Description

.Weight capacity of decoiler4.5T2.Appearance Size(L*W*H)6500*1400*13003.Raw material /feeding sheet material colored steel & galvanized steel4.Roller material45# high grade steel5.Shaft material45# high grade steel  6.Kind of drivechain drive7.Cutting systemautomatic hydyaulic cutting8.Cutting blade materialCr 12  high grade steel9.Frame material350 H-high grade steel10. Control systemtotally automatic PLC control system with touch screen11.Total power 4+4 kw12.Roller stations 13 rows13.Speed of production 2-4m/min 14.Thickness of colored steel0.3-0.8mm15.Feeding width1000mm16.Effectiv width820mm,840mm15.Frame material300 H-steel

4.Components of production line

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1



Technical process:
Automatic un-coiling →feeding guide →pinching and leveling device→main roll forming → hydraulic cutting →outputting → box interlocking machine

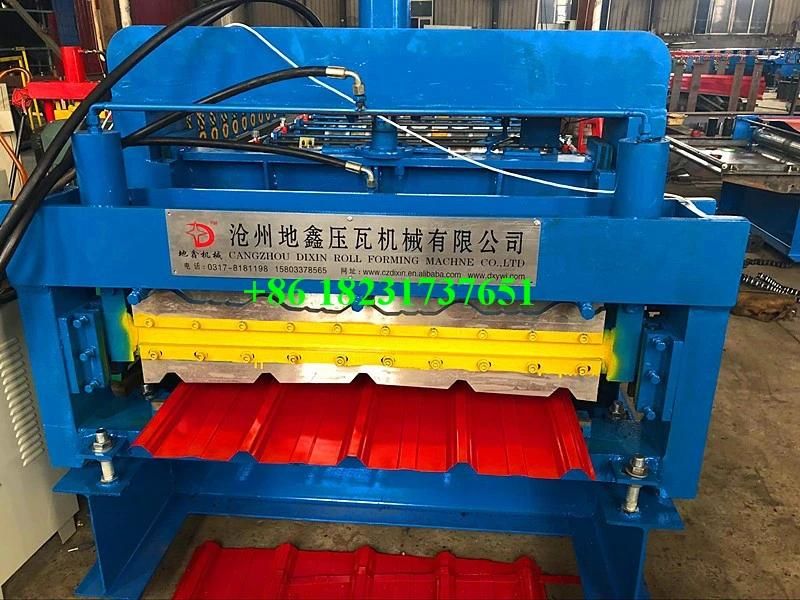

4.Some machine pictures for your reference.

Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine
Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine
Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine

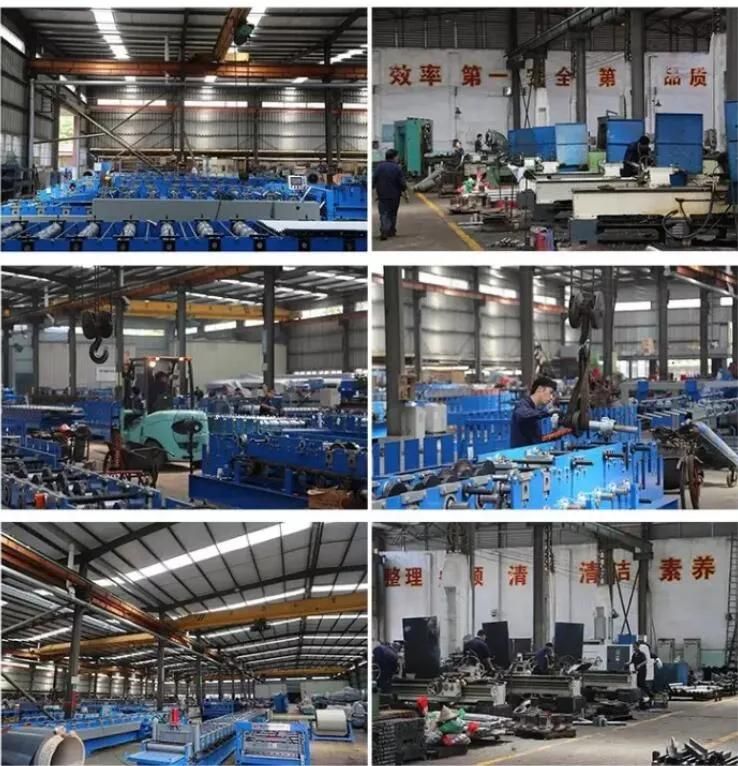

Our factory:
Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine
Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine
Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine
Zimbabwe Customer Order Double Layer Glazed Tile and Ibr Sheet Roll Forming Machine

If you want to know about more  details about our machine ,Please Contact Bella Mobile  :8618231737651

Quality first, service first, your satisfaction is the driving force of our progress.(I can provide you a top quality with a good price )
