• Model NO.：QTJ4-25
• Shaping Cycle：20-25 Seconds
• Material Feeding：Automatic
• Rated Power：21kn
• Mixer：Jq500
• Capacity for 240*115*53mm Brick：21-26PCS , Mould
• Machine Weight：3t
• Pallet Size：850*550mm
• Shift Capacity：70m3
• Pallet Feeding：Automatic
• Material Discharging：Automatic
• Shipping Method：in 20FT Full Container
• Operator：5-6
• Aftersale Service：Full Instruction, Engineers Service on Buyer Site
• Transport Package：Nude Package in 20FT Container
• Specification：235 steel for machine frame
• Trademark：CYUN
• Origin：China
• HS Code：8474802000
• Production Capacity：5760-28800PCS , Year

Basic Info.

Model NO. QTJ4-25 Shaping Cycle 20-25 Seconds Material Feeding Automatic Rated Power 21kn Mixer Jq500 Capacity for 240*115*53mm Brick 21-26PCS / Mould Machine Weight 3t Pallet Size 850*550mm Shift Capacity 70m3 Pallet Feeding Automatic Material Discharging Automatic Shipping Method in 20FT Full Container Operator 5-6 Aftersale Service Full Instruction, Engineers Service on Buyer Site Transport Package Nude Package in 20FT Container Specification 235 steel for machine frame Trademark CYUN Origin China HS Code 8474802000 Production Capacity 5760-28800PCS / Year

Product Description

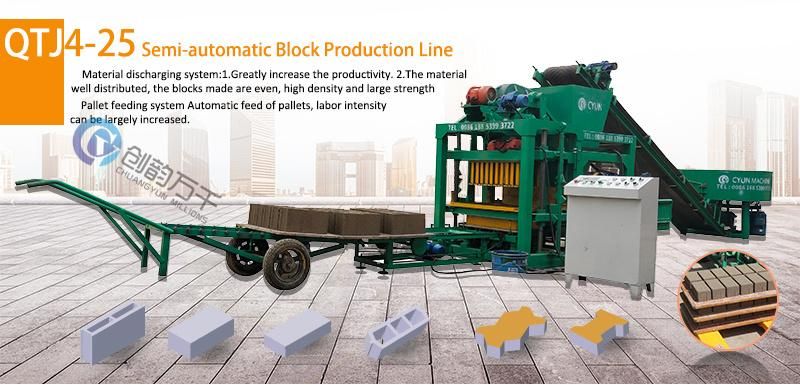

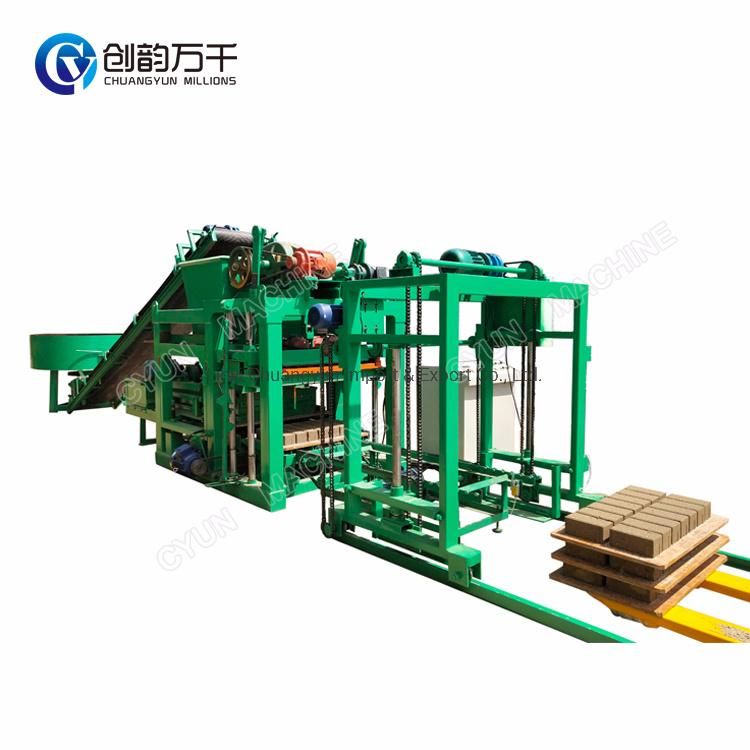

Qtj4-25 Industries Hollow Block Machine Concrete Block / Paving Block Making Machinery


Machine description:

1. QT4-25D is one of kind of automatic block machine, which is developed on the basis of small and medium model. The position-setting of the mold and the discharge head are more accurate. The down-mould adopts the vertical, directional vibrating device while the up-mold uses the pressure vibrating. So the blocks made by this machine are even, high in density and strengh. Also the automatic material distributing system greatly increase the productivity.

2. This machine is with automatic control system, it is easy to operate and can work reliably.

3. This machine is with high vibrating frequency and strong vibrating force to insure that the strengh of the finished block is strong enough to meet the international standard and the industry standard.



1. Advantages:

1. Automatic PLC Opeation, Reduce Lobor Cost
2. Produce sizes of hollow block, solid brick, hourdis, interlocking paver and curbstone by changing molds
3. Small Investment, Big Capacity
4. Suitable For Medium and Small-Scale Block Factory











B:Photos and Working Video of QT4-24 concrete block making machine are available








Products

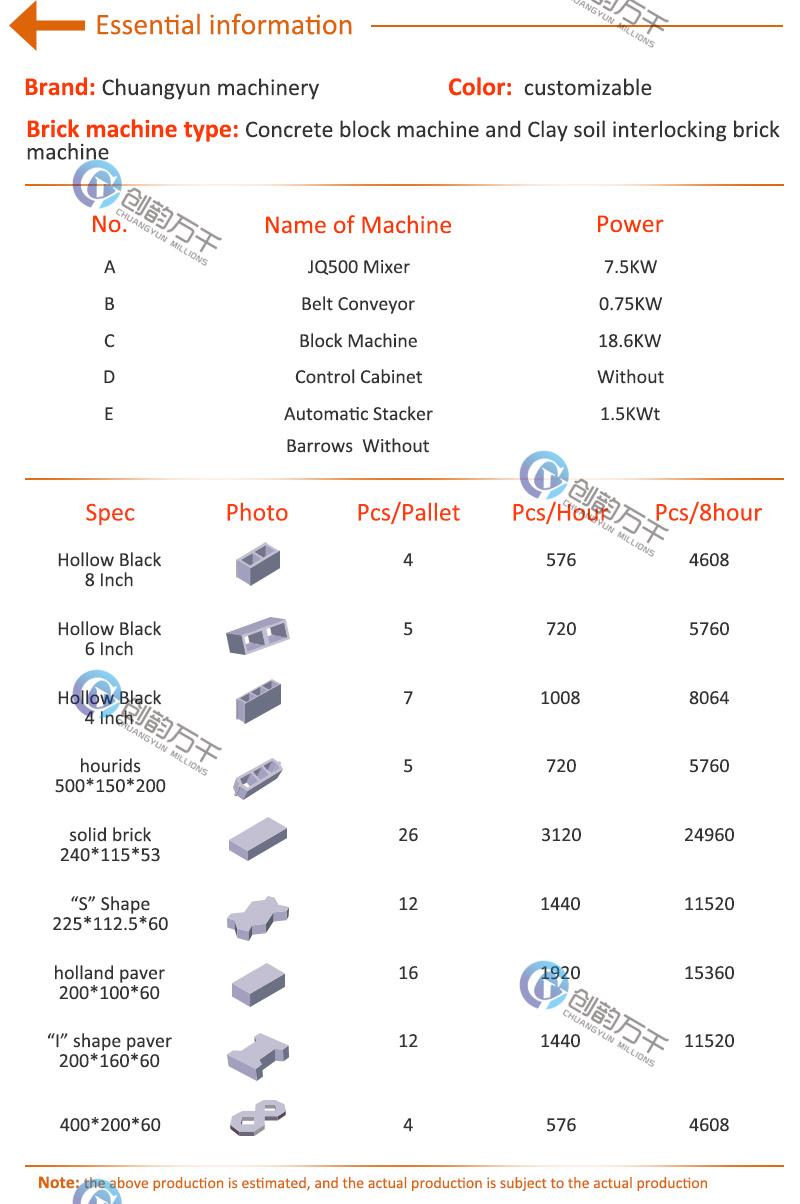

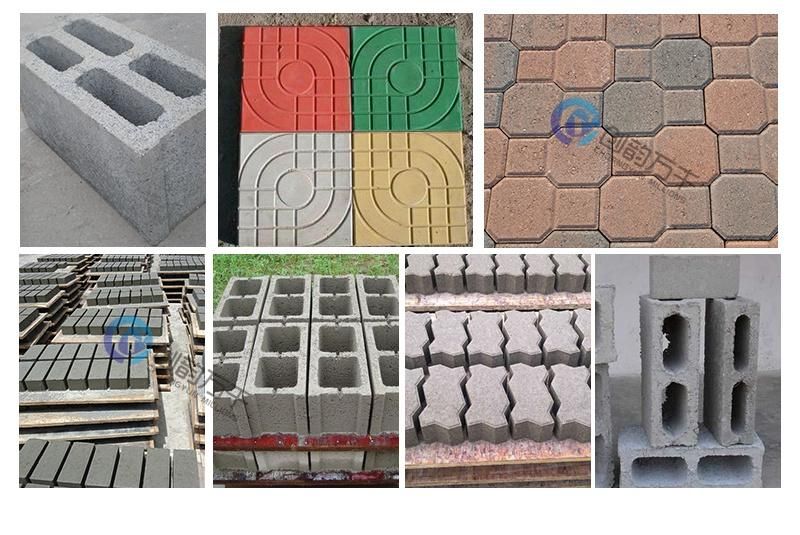

QT4-25 automatic cement block machine can produce different sizes of concrete hollow blocks, solid blocks, pavers, hourdis and curbstones by changing molds.

Customize available by customer drawings, irregular design of blocks molds with high accuracy.








 Contact us for some designs of block and pavers for your reference

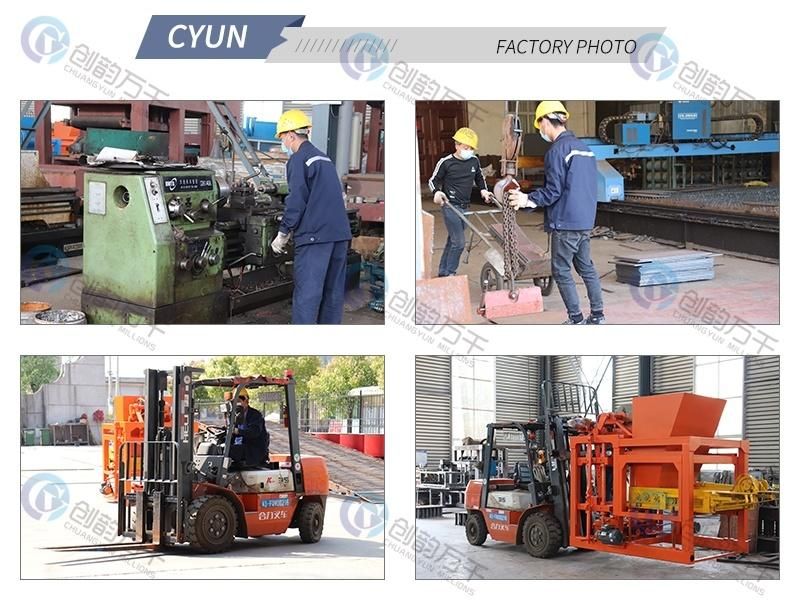

About us












Installation, commissioning and training:


1. CYUN company will provide detail manual for install and operate guidance.
2. If needed, engineers can be dispatched to your site for machine installation, commissioning, training.

1. Installation & training fee: 75$ / Day.
2. Buyer also responsible for round-tickets, visa cost, accommodation.

Warranty & Support

1. All machines will be covered with 18 months warranty from our factory.
2. Our factory will provide you with operation support for one to three months, and also train your people/ operators/ plant manager at our site before arrives your place.
3. One year common spare parts will be provided free of cost.
4. We maintain a good inventory of critical spares, you can get support of spares and service from China factory at any time.
5. Project execution like workshop preparation, early stage layout and site visit are available.
6. Import & Export Guidance, the machine will be delivered to your country with no worries.
7. Machine inspection at China side.
