• Model NO.：HKY-purlin roll forming machine
• Voltage：380V
• Thickness Range：0.3mm-2.5mm
• Transport Package：Export Packing
• Specification：6364mm*1220mm*1400mm
• Trademark：HKY
• Origin：China
• HS Code：8474801000
• Production Capacity：500sets,Year

Basic Info.

Model NO. HKY-purlin roll forming machine Voltage 380V Thickness Range 0.3mm-2.5mm Transport Package Export Packing Specification 6364mm*1220mm*1400mm Trademark HKY Origin China HS Code 8474801000 Production Capacity 500sets/Year

Product Description

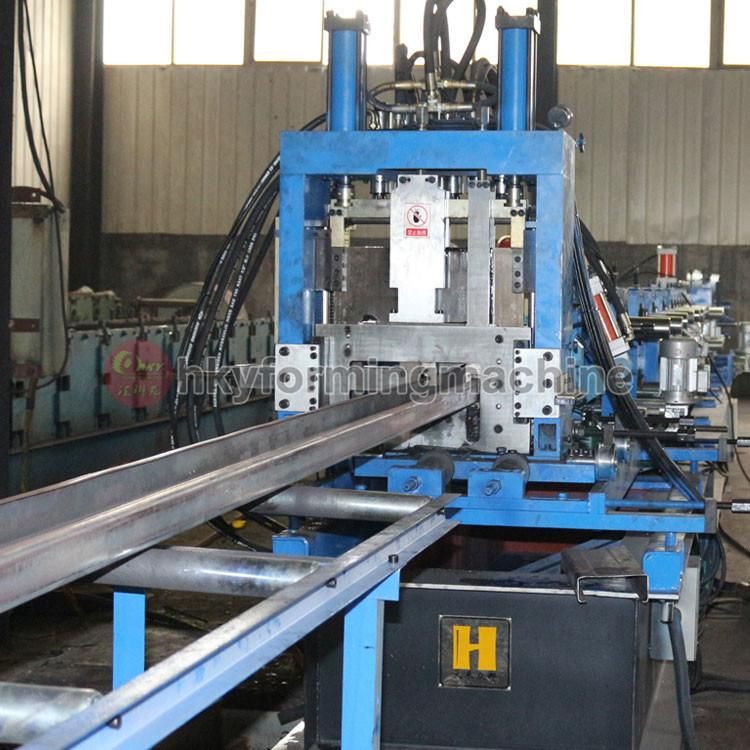

C purlin roll forming machine, C channel forming machine, C/z purlin roll forming machine, purlin forming machine, C Z interchangeable purlin forming machine







Components of whole set C Z purlin roll forming machine:
The De-coiler
Coil Sheet Guiding and Adjusting Equipment
Film Covered Device
Punching system

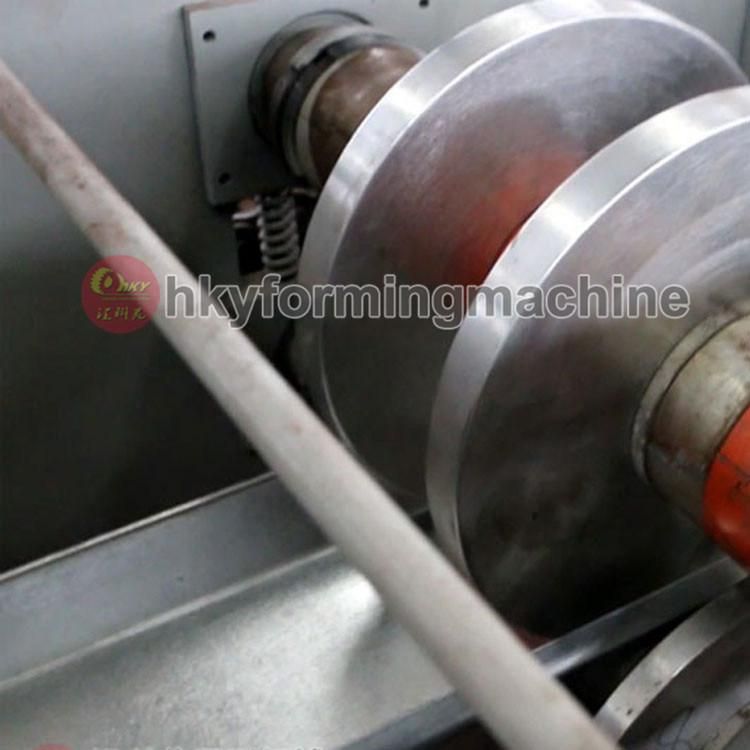

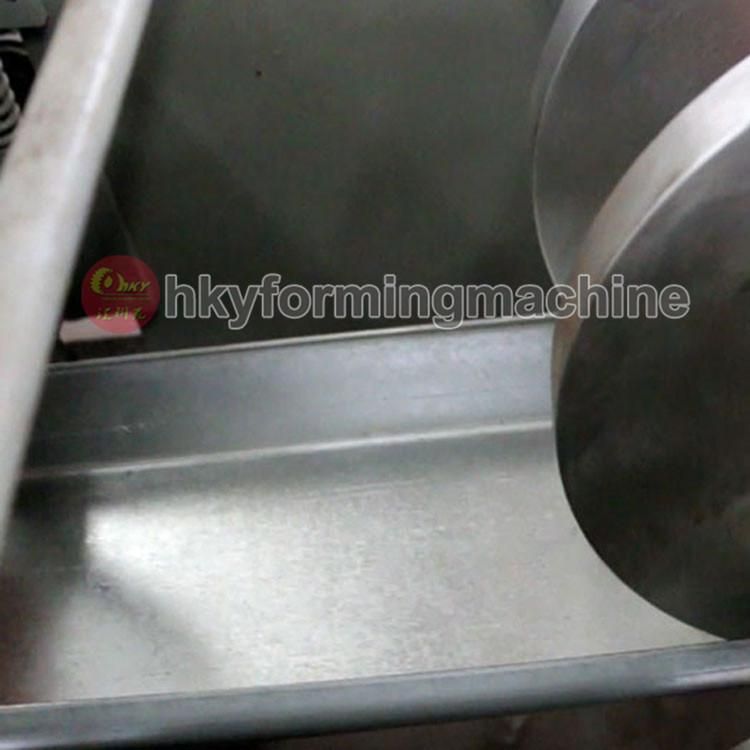

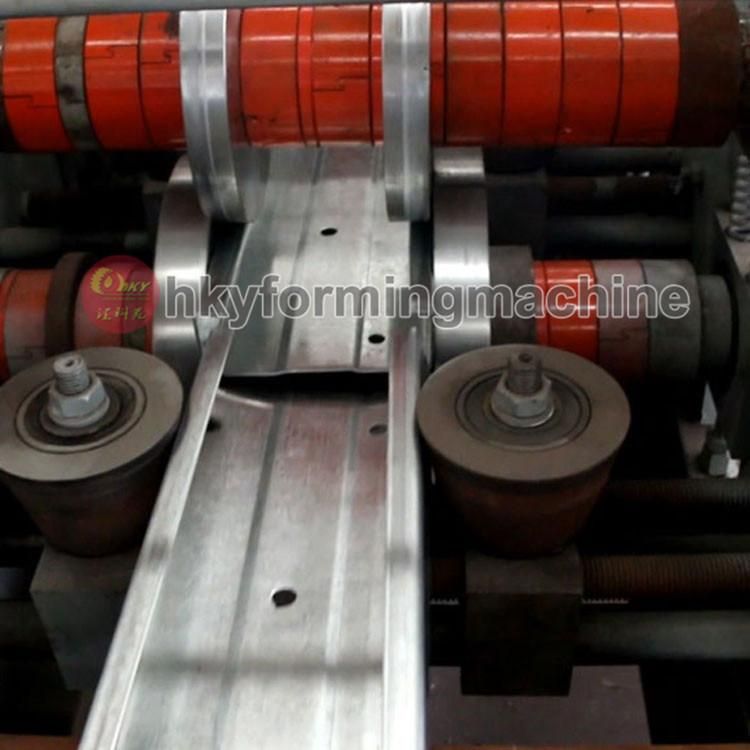

Main Roll Forming System
Post-Cutting Device
Hydraulic Station
PLC Control System
Support Table

Technical parameters of export standard C Z purlin roll forming machine:

A. Capacity: 0.3-2.5mm G. I
B. Power: 7.5KW servo motor
C. Hydraulic power: 5.5kw hydraulic system. _380__volt 3 phase
D. Measuring accuracy: +/- 0.5 mm/M.
E. Control system: HMI & PLC control panel.
F. Run-out table: Roller type. Length 4000mm
G. Shearing blade: Material: Cr12 with heat treatment(HRC60), hydraulic operated.
H. The machine base is assembled and welded by high quality steel.
I. Feeding speed: 15 M/min.
J. Roller material: C45 steel, chrome coated.
K. Transmission: Chain and gear
L. Material of punching mould: Cr12 with heat treatment
M. Forming station: 14stations.
N. Machine dimension: 6364mm*1220mm*1400mm
O. Total weight of machine: 5800Kgs
P. Production speed: 1500 pieces/per 8 hours

Packing & Delivery
> Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.
> By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.

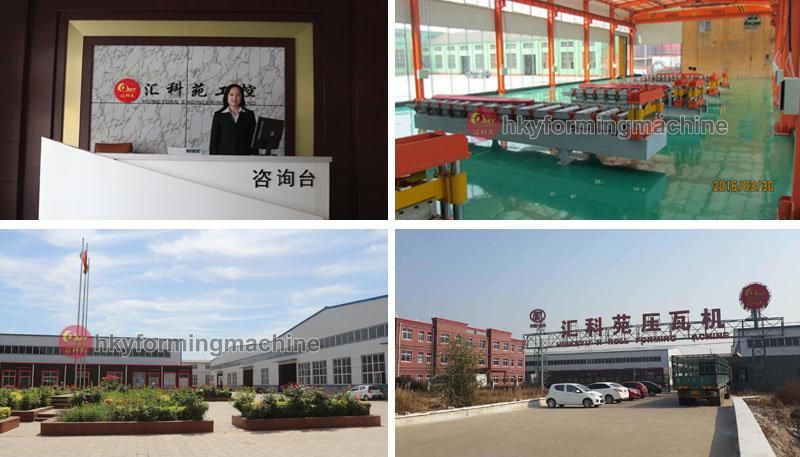

Our Company

Botou Huikeyuan Engineering Control Co.,Ltd was founded in 1989 and has become a recognized leader in the manufacture of Cold Roll forming machines and equipments
Our excellent reputation for sound and innovative engineering and 20 years of experience have brought us recognition for offering our customers the ultimate in efficiency for roll forming equipments and toolings


Why choose us?
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
Our customers
HKY, as a well known brand name of a roll forming equipments manufacturer in China, has exported its equipments and machines to more than 60 countries and areas over the world, such as Russia, India, UK, Australia, USA, KZ, TJK, Malaysia, Nigeria, Romania, Albania and it has received excellent reputation. In the future, we are committed to better equipments and sales service and meeting customers' requirements when and where they need.

FAQ
Q: How can I contact you?
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machineries?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.

Our Service
> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.
>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: good for 30days
