G550 High Grade PPGI PPGL Deck Floor Roll Forming Machine

Hangzhou WILLING INTERNATIONAL CO., LTD.
  • Tile Type：Glazed Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Floor
  • Transmission Method：Machinery

Base Info

  • Model NO.：as to your request
  • Controller：PLC
  • Total Weight：About 18000kg
  • Max. Forming Speed：8-12 M,Min
  • Roller Material：45#Steel with Chrome Treatment
  • Transport Package：Wrap with Foam Film
  • Specification：CE Standard, ISO 9001
  • Trademark：WILLING INT′L
  • Origin：China
  • Production Capacity：150 Sets Per Year

Description

Material SpecificationAluzinc steel and galvanized steel.ThicknessWLFM51-326.5-980, 0.75 mm to 1.5mm;
WLFM75-300-900, 0.75mm to 1.50mm.Main Motor Power22kw (two sections of machine, each secton has one motor with 11kw).Hydraulic Station Power7.5kw.Feeding Width1000mmCover Width832mmSteel StressG450 ~ G550.Roll Forming Speed12 m/minute.Cutting Tolerance+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).Hydraulic UncoilerMax. capacity: 8'000kgs.Coil Inner Diameter508mm.VoltageAs per customer's request.Numbers of Stations26 stationsType of CuttingRoll-formed and length-set profile cutting.
 Material of Main EquipmentRoller MaterialHigh grade S45C forged steel, coated with hard chrome; some important roller wheels are chosen Cr12 mold steel, coated with hard chrome.Active Shaft MaterialHigh grade S45C carbon wrought steel, diameter 85mm.Electric ElementsPLC control console, touch screen and transducer, from Mitsubishi, Japan.
Other elements, from Schneider Electric, Germany.Cutter bladesCr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.
Process Sketch
Uncoiling the sheet -Infeed guiding -Roll forming -Measure length - Cutting the panel - Panels to the supporter (option: automatic stacker).
Standard Equipment of Machine
 1)Manual Uncoiler1 set2)Infeed Guide1 set3)Embossing Roller1 set4)Roll Forming Station1 set5)Post-cut Equipment1 set6)Hydraulic Station1 set7)PLC Control Console1 set8)Product Support Table2 sets9)Spare Parts1 box

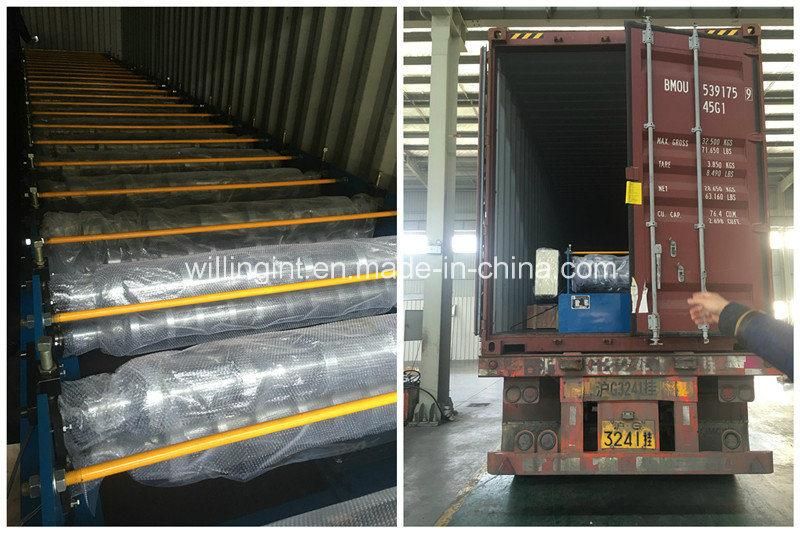

Packaging & Shipping

1.One 40ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.G550 High Grade PPGI PPGL Deck Floor Roll Forming Machine

Company
G550 High Grade PPGI PPGL Deck Floor Roll Forming Machine
FAQ

  1. Q:Are you a manufacturer?
  2. A:Yes absolutely. Welcome a lot for your visiting to us.

  3. Q:What's the delivery time?

    A:Normaly will take 60days

  4. Q:Do you have after-sale support?

    A:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

  5. Q:Is there quality control when manufacturing the lines?

    A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

  6. Q:What's your strength comparing to the other supplier?

    A:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
