Building Material Making Machinery

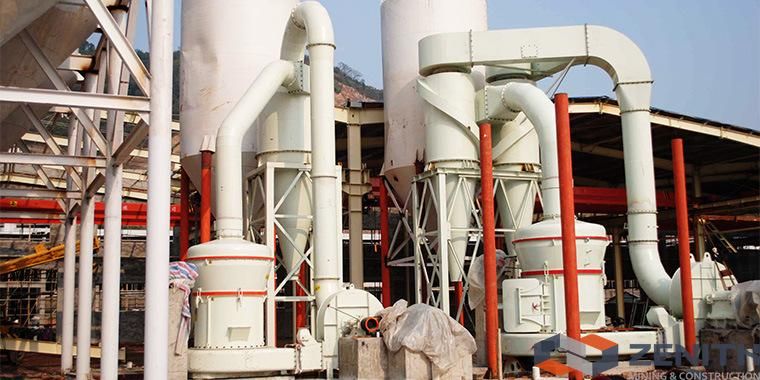

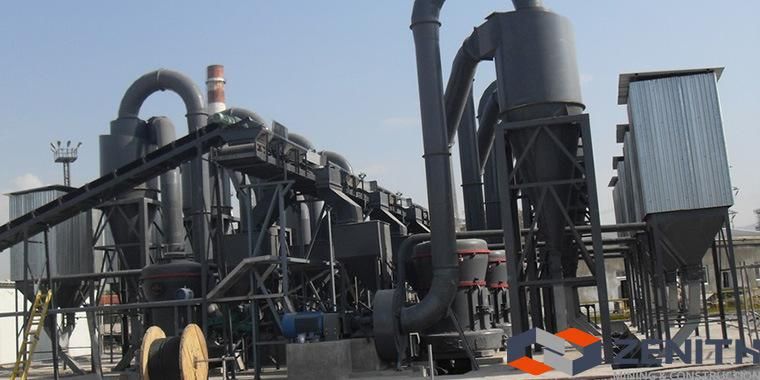

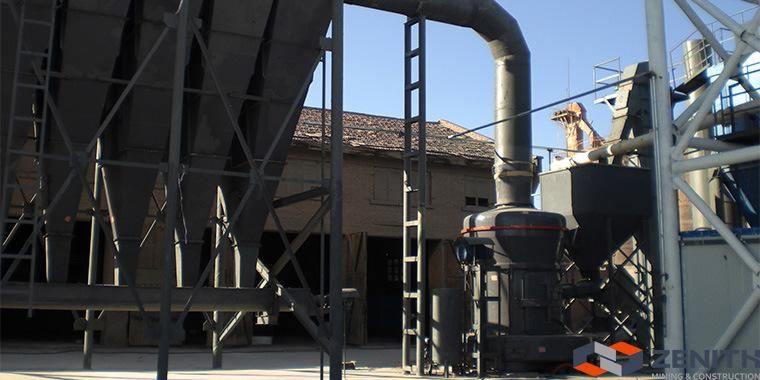

Zenith Large Capacity Gypsum Powder Production Line

Shanghai Zenith Mineral Co., Ltd.
  • Warranty:12 Months
  • Certification:ISO 9001:2008, ISO 9001:2000, CE

Base Info

  • Model NO.:MTM100, MTM130, MTM160
  • Control Type:Artificial
  • Crushing Degree:Ultra-Fine Mill
  • Automatic Grade:Automatic
  • Mining Object:Grinding Machines
  • Spare Parts Supply:for Whole Year
  • After-Sale Service:for Whole Using Year
  • Test&Installation:Engineer Assigned
  • Transport Package:Container, Nude Packs, in Bulk
  • Specification:ISO9001: 2000
  • Trademark:Zenith
  • Origin:China
  • HS Code:8474209000
  • Production Capacity:3-20tph
  • Package size per unit product:700.00cm * 300.00cm * 400.00cm
  • Gross weight per unit product:10000.000kg

Description

NameMTM100MTM130MTM160Ring roll number(pcs)456Major diameter of roller(mm)Φ310X170Φ410X210Φ440X270Inner diameter of roller(mm)Φ950X170Φ1280X210Φ1600X270Revolving Speed(rmin)13010382Max feed size(mm)<25<30<35Final size(mm)1.6-0.045
fineness can reach to 0.0381.6-0.045
fineness can reach to 0.0381.6-0.045
fineness can reach to 0.038Output(th)3-86-119-22Complete physical size(mm)7100×5900×79009200×7250×970012550×5700×8355Main unit motorModelY225S-4Y280S-4Y315M-4Power(kw)3775132Rotate speed(rmin)148014801480Centrifugal induced draft fan motorModelY225S-4Y280S-4Y315M-4Power(kw)3775132Rotate speed(rmin)148014801480Classifier speed regulating motorModelYCT200-4AYCT200-4BYCT250-4APower(kw)5.57.518.5Rotate speed(rmin)125-1250125-1250132-1320ElevatorElevator modelTH210TH210TH315Motor modelY100L2-4Y100L2-4Y112M-4Power(kw)334Rotate speed(rmin)143014301440Jaw CrusherJaw Crusher ModelPE200×350PE250×400PE250×750Main unit motorY160M-6Y180L-6Y200L2-6Power(kw)7.51522Rotate speed(rmin)970970970Magnetic vibrating feederMain unit motorGZ2FGZ3FGZ3FPower(kw)0.150.20.2Zenith Large Capacity Gypsum Powder Production LineZenith Large Capacity Gypsum Powder Production LineZenith Large Capacity Gypsum Powder Production LineZenith Large Capacity Gypsum Powder Production Line
