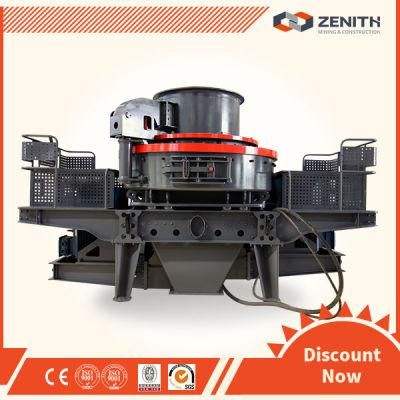

200tph VSI Crusher/Stone Crushing Machine/Vertical Shaft Impact Crusher/Washing Machine Sand Making Machine Sand Production Line with Low Price
Shanghai Zenith Mineral Co., Ltd.- After-sales Service：for Whole Using Year
- Warranty：12 Months
- Certification：CE, ISO
- Theory：Granule Grinder
- Crushing Level：Crushing
- Application：Railroad, Construction
Base Info
- Model NO.：B-7615DR, B-8522DR, B-9532DR, B-1145DR
- Structure：Vertical
- Spare Parts Supply：for Whole Year
- Test&Installation：Engineer Assigned
- After-Sale Service：for Whole Using Life
- Export Markets：Global
- Transport Package：Container, Nude Packs, in Bulk
- Specification：ISO9001: 2000
- Trademark：Zenith
- Origin：China
- HS Code：8474209000
- Production Capacity：50-850tph
Description
Overview
Product Description
Our Sand Production Line is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand. Zenith B Series Sand Production Line is one of the most advanced impact crushers nowadays. Personalized design is used in upper cap, Sand Production Line is easy and convenient to maintain and replace spare parts. Sand Production Line is our sole patent using central feeding & central cascade feeding, which can be changed based on customers' needs.
200tph Sand Making Machine Sand Production Line working principle

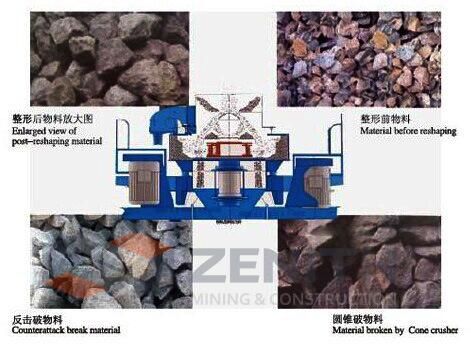

The entire center feeding: Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then Sand Production Line is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity of sand making machinery for sale in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.
200tph Sand Making Machine Sand Production Line Features:
1. The structure is simple, and the operating cost is low.
2. High efficiency, and low consumption.
3. Sand Production Line is slightly influenced by the humidity of material, and the max humidity is 8%.
4. Sand Production Line is more suitable for crushing mid-hardness materials and high-hardness materials.
5. Its product is cubic, and the density of piling up is high and the iron pollution is low.
6. The working noise is less than 75 decibels and dust pollution is little

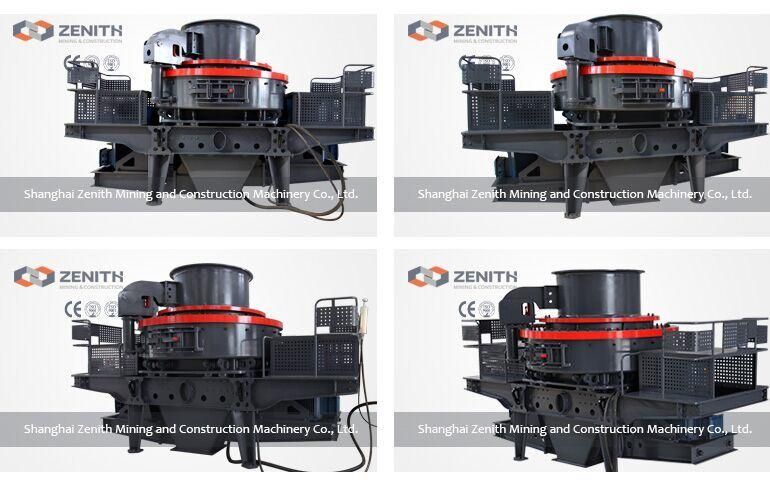

B Series Sand Production Line Technical Data:
Model B-7615DR B-8522DR B-9532DR B-1145DR Throughput Capacity (t/h) Cascade and central feeding 150~280 240~380 350~540 500~640 Central feeding 70~140 120~200 180~280 250~360 Max.Feeding dimension (mm) Soft material <35 <40 <45 <50 Hard material <30 <35 <40 <45 Rotation speed(r/min) 1700~1900 1500~1700 1300~1510 1100~1310 Double motor power (kw) 110~150 180~220 260~320 400~440 Overall dimension (LxWxH)(mm) 4100×2330 ×2300 4140×2500 ×2700 4560×2600 ×2900 5100×2790 ×3320 Weight(t) 8.6 11.8 17.5 27.5 Power 380v,50Hz Labrication System Double pump motor power 2X0.31kW Safety Altemative double pump oil supply;machine stops automatically without oil flow or oil pressure.water cooling,motor warm start in winter. Overall dimension (LxWxH) 820X520X1270 Gasoline tank heating power
2KW
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email, our sales manager will contact you within 1 hours .
200tph VSI Crusher/Stone Crushing Machine/Vertical Shaft Impact Crusher/Washing Machine Sand Making Machine Sand Production Line with Low Price
Our Sand Production Line is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand. Zenith B Series Sand Production Line is one of the most advanced impact crushers nowadays. Personalized design is used in upper cap, Sand Production Line is easy and convenient to maintain and replace spare parts. Sand Production Line is our sole patent using central feeding & central cascade feeding, which can be changed based on customers' needs.
200tph Sand Making Machine Sand Production Line working principle
The entire center feeding: Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then Sand Production Line is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity of sand making machinery for sale in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.
200tph Sand Making Machine Sand Production Line Features:
1. The structure is simple, and the operating cost is low.
2. High efficiency, and low consumption.
3. Sand Production Line is slightly influenced by the humidity of material, and the max humidity is 8%.
4. Sand Production Line is more suitable for crushing mid-hardness materials and high-hardness materials.
5. Its product is cubic, and the density of piling up is high and the iron pollution is low.
6. The working noise is less than 75 decibels and dust pollution is little
B Series Sand Production Line Technical Data:
2KW
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE&ISO.Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email, our sales manager will contact you within 1 hours .
