4X60m Rotary Kiln in Cement Production Line

Jiangsu Pengfei Group Co., Ltd.
  • Application：Construction
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Transport Package：Seaworthy Packing
  • Specification：Chinese

Base Info

  • Trademark：Pengfei

Description

Basic Info.

Trademark Pengfei

Product Description

4x60m Rotary Kiln in Cement Production Line

 1. Production capacity: 2500t/d

   2. Rotary speed of main driving: 0.41-4.07r/min; Inclination: 4%

   3. Rotary speed of auxiliary driving: 8.2r/h

   4. Support number: 3

   5. Sealing type: Steel sheet sealing for kiln head;

             Kiln tail: sealing with cylinder compacting end face (The user can adopt the other type.).

   6. Cooling type for kiln head: Air cooling

   7. Driving type: Single driving

   8. Type of thrust roller: Hydraulic thrust roller

9. Model of main driving motor: ZSN4-355-092; Power 315kW; Rated rotary speed 1000r/min; Armature voltage 440V; Exciting voltage 180V; Speed adjustable range 100-1000r/min (Shanghai Nanyang Motor Factory)

10. Tachogenerator: ZYS-100A; Power: 8W; Max. Working rotary speed: 1000r/min

Max. Operating voltage: 100V; Max. Load current: 80mA

   11. Main reducer:

       Model: YNS1110-22.4-VBR   I=22.4

   12.Auxiliary driving motor:

       Model: Y180L-4; Power 22kW; Rated rotary speed: 1470r/min; Rated voltage: 380V

   13. Auxiliary driving reducer:

       Model: YNS440-45-II R I=45

14. Gear drive: Open m=28 Z1/Z2=19/218

15.Equipment weight: 434t ( not including kiln hood and installment tool)

16. Drawing No. of Nanjing Design Institute: NCR530A

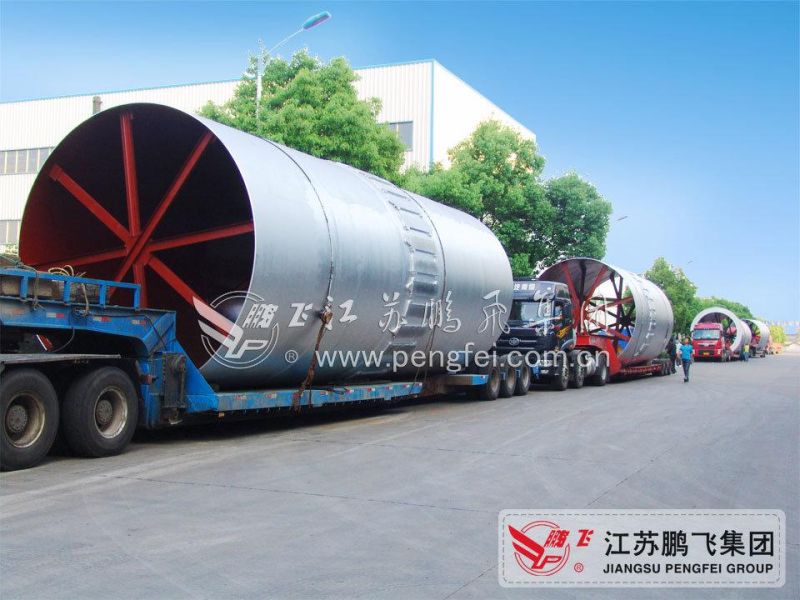

4X60m Rotary Kiln in Cement Production Line
