Building Material Making Machinery

Home > Product > Pipe Making Machine

High Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding Machine

MAANSHAN RUIYI MACHINERY CO., LTD.
  • After-sales Service：Engineers Available to Service Machinery Overseas
  • Warranty：1 Year
  • Condition：New
  • Customized：Customized
  • Application：Industry, Duct Making
  • Type：Pipe Production Line

Base Info

  • Model NO.：RDM-500
  • Rated Welding Capacity：40kVA
  • Capacity：0.5-1.2mm
  • Weight：650kg
  • Transport Package：Wooden Case
  • Specification：2200*1100*1600mm
  • Trademark：RUIYI
  • Origin：China
  • HS Code：8515809090
  • Production Capacity：100 PCS Per Month

Description

Basic Info.

Model NO. RDM-500 Rated Welding Capacity 40kVA Capacity 0.5-1.2mm Weight 650kg Transport Package Wooden Case Specification 2200*1100*1600mm Trademark RUIYI Origin China HS Code 8515809090 Production Capacity 100 PCS Per Month

Product Description

FEATURES

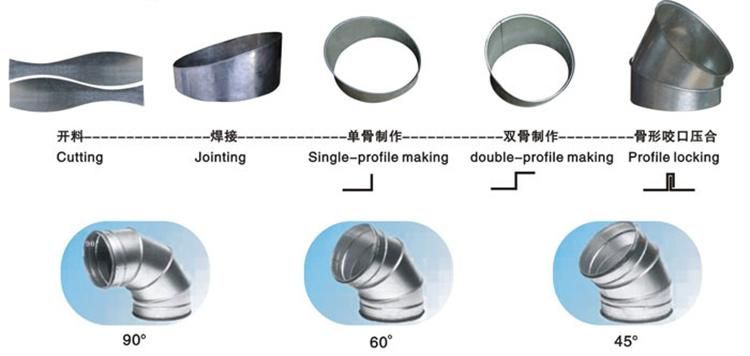

This round duct welding machine is used for welding round duct and elbow duct. Advantage is high-speed, material-saving, seaming tighter and seaming joint firmer.

MAIN TECHNICAL DATA
ModelRWM-500
Input voltage3-phase, 380V ± 10 %
Rated welding capacity(KVA)40
Rated Load Persistence Rate40%
Speed of feeding wire(m/min)6.0-12
Diameter of wire(mm)Φ2.2
Secondary output voltage(V)1.6--3.2 ( when controller energy is biggest )
Secondary voltage6 grade
Minimum diameter of welding(mm)100
Maximum length of welding(mm)500(length can be customized)
Sheet thickness(mm)0.5-1.2
Dimension(mm)2200*1100*1600
Weight(kg)650

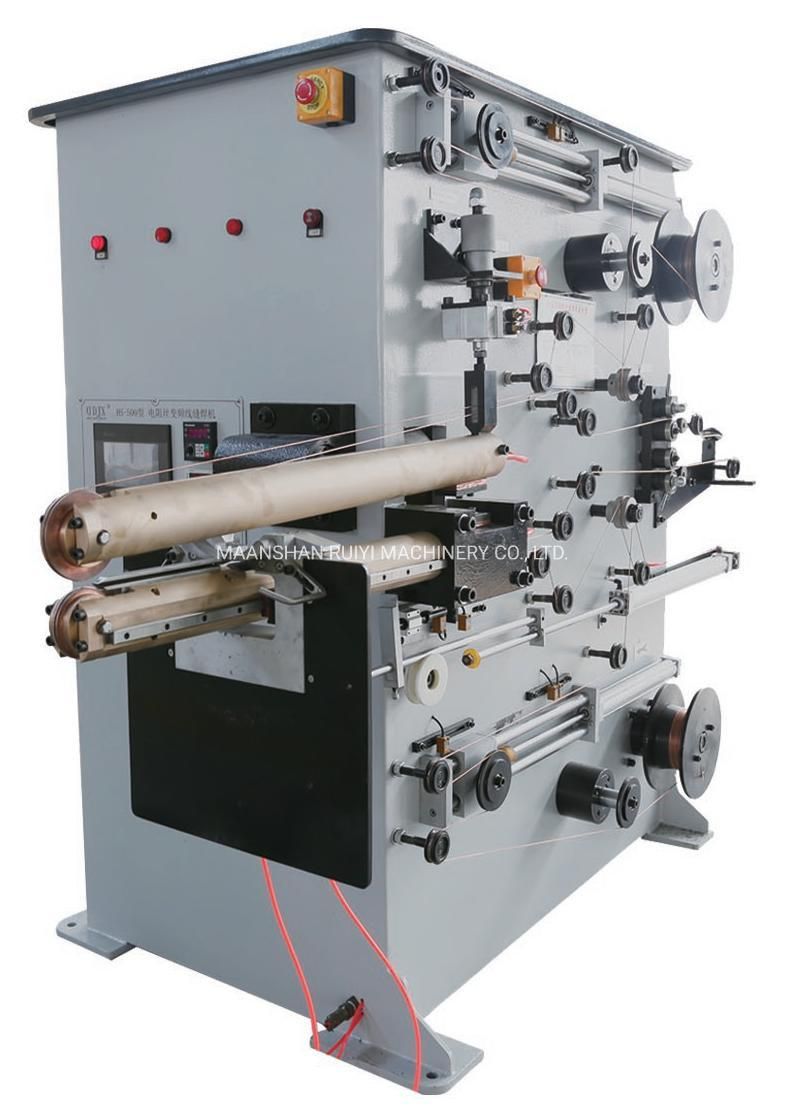

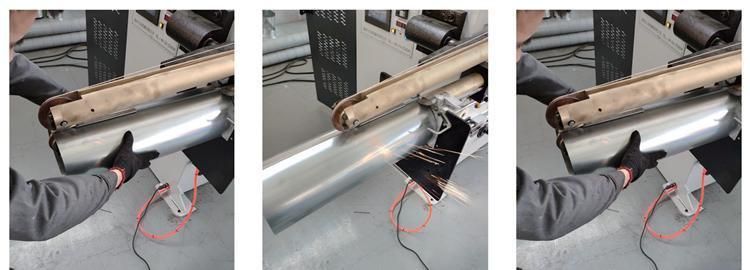

DETAILED PICTURES
High Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding MachineHigh Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding Machine


High Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding Machine

VISIT AND TRAINING
High Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding Machine

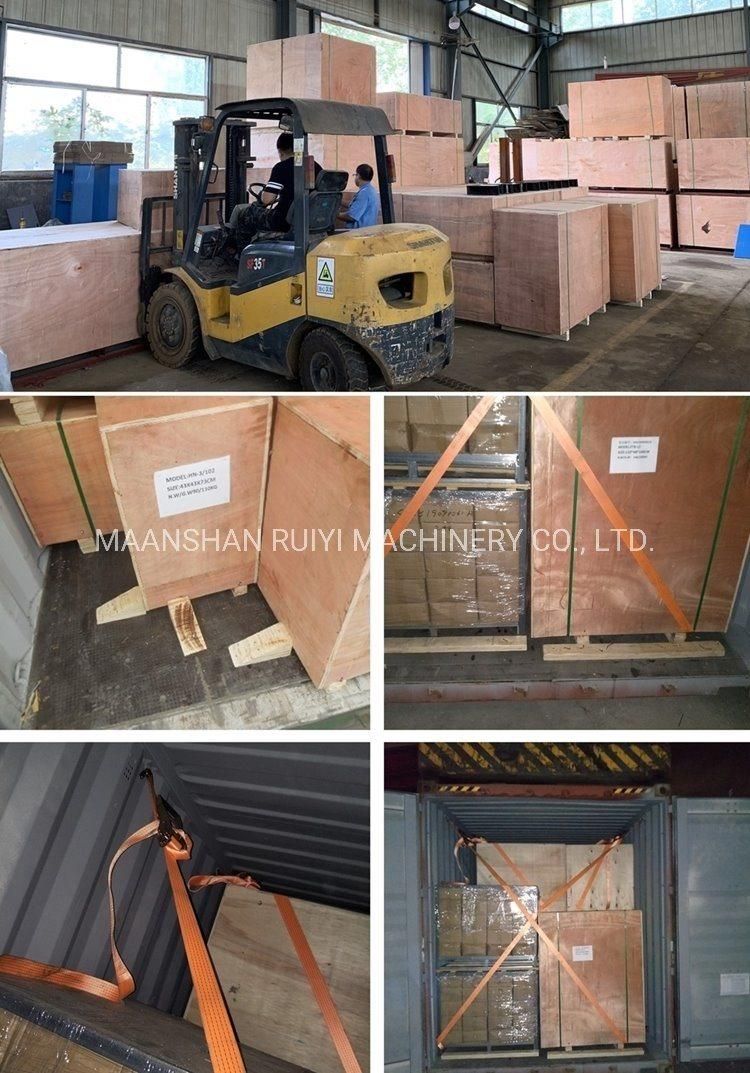

GOOD PACKAGE AND SAFTY DELIVERY
High Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding Machine

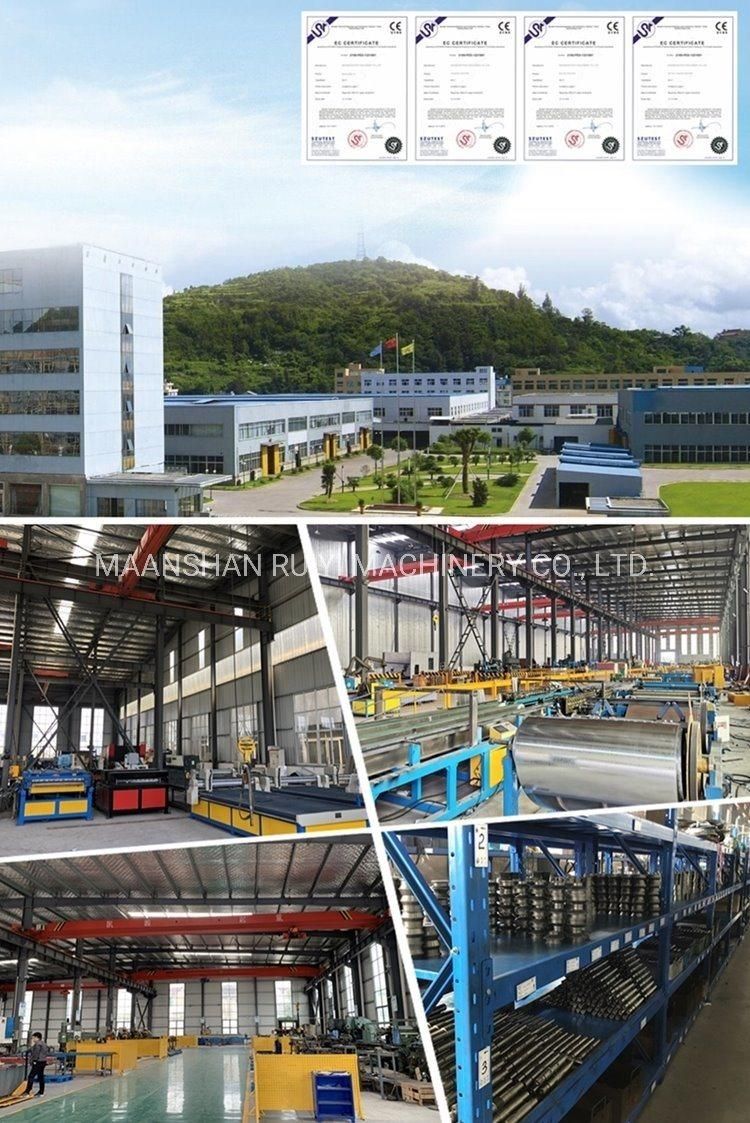

FACTORY SHOW
High Speed HVAC Ventilation Copper Wire Line Galvanized Stainless Steel Round Spiral Air Duct Tube Pipe Welding Machine

FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.

2.Q:How about the quality of your machines?
A: Our company  is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.

4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
