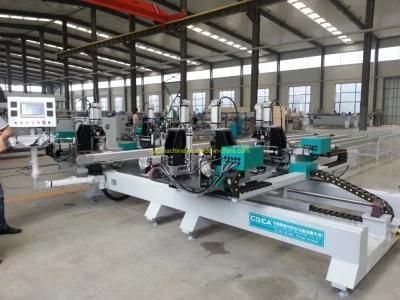

Four Corner Cleaning CNC UPVC Window Machine

Jinan Jufu Technology & Trade Co., Ltd.
  • Condition：New, New
  • Certification：ISO, CE, ISO, CE
  • Automatic Grade：Automatic, Automatic
  • CNC or Not：CNC, CNC
  • Voltage：380V, 380V
  • Total Weight：2600kg

Base Info

  • Model NO.：LXFZ1B-CNC-2500
  • Total Power：10kw
  • Welding Range：420*580mm~2400*2600mm
  • Process Height：25~180mm
  • Process Width：20~120mm
  • Transport Package：Pallet or Wooden Package
  • Specification：3700*5500*1600
  • Trademark：CGMA
  • Origin：China
  • HS Code：84778000
  • Production Capacity：Capacity: 50PCS,Year

Description

Total power10KWTransport motor:0.37KW*2Servo total power:
1KW*1+0.75KW*2Hearting plate:1.5KW*4(AC220V)6Process height25~180mm7Process width20~120mm8Process precisionLength and width≤2mm;Diagonal≤2.5mm9Process range420×580mm~2400×2600mm10Total weight2600Kg11Dimension (L*W*H)3700*5500*1600mm Performance characteristics

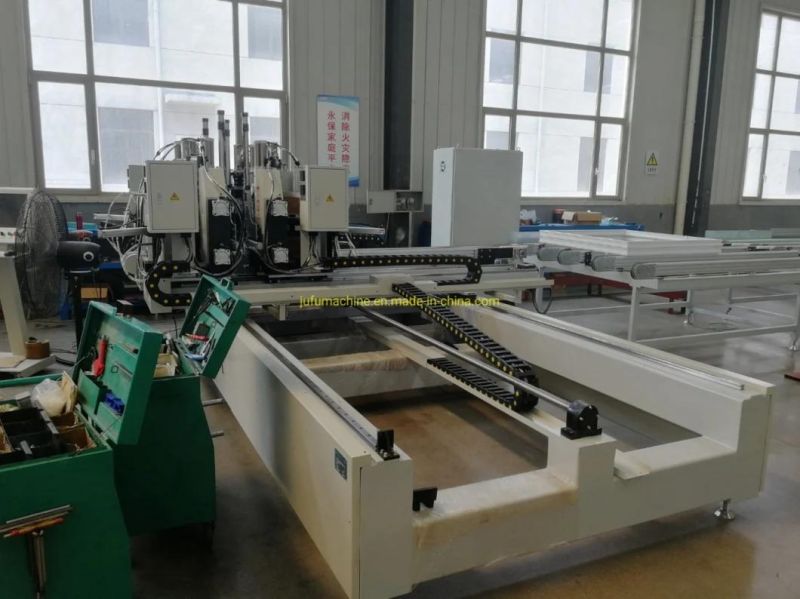

  • The machine is horizontal layout, It will complete the welding the rectangle frame once clamp.
  • Adopt the torque testing technology to realize the pre-press of four corner, so that to ensure the welding accuracy.
  • Adopting T shape linear guide rail and movable pair could keep precision highly in long time.
  • By changing the press plate to realize the exchange of seam and seamless welding, to ensure the welding strength and stability.
