Qt6-15 Automatic Hydraulic Pressure Cement Solid Paver Brick Making Machine in Kenya
Shandong Xinming International Trade Co., Ltd.- After-sales Service：Our Engineer Is Able to Your Factory for Service
- Warranty：2 Years
- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
Base Info
- Model NO.：QT6-15
- Model：Qt6-15 Brick Making Machine
- Host Machine Power：29.1 Kw
- Mold Period：15 Seconds
- Rated Pressure：21MPa
- The Size of Pallet：960*700*20mnm
- Weight of Block Machine：8tons
- Mixer Model：Js500 Concrete Mixer
- Labor：5-7 Workers
- Vibration Force：50-60kn
- Block Type：Hollow Soild Paving Block
- Factory Area：1000-1500m2
- Standard Hollow Block：400*200*200mm
- Pallet Number：1500 PCS
- Color：Optional
- Water Consumption：5-6 Tons
- Transport Package：Qt6-15 Brick Making Machine Is Nude in Container
- Specification：3650(L)*2450(W)*2950(H)mm
- Trademark：Xinming
- Origin：China
- HS Code：8474802000
- Production Capacity：500PCS Block Machines Per Month
Description
QT6-15
Brick machine
Host machine (Power: 21.8kw)
7. Pallet feeding system
7. Material feeding system
6.hollow block mold
1. Production capacity: 7680Pcs/8h
2. Fully automatic, hydraulic system
3. 15s produce one pallet blocks
4. Rated pressure: 21mpa
5. Load in 40HQ container
6. Multi function: Hollow, solid block, paver, houdi
2.QT6-15 multi function concrete brick production plant technical information:
Hollow/Solid block
400-150-200mm
15360 pcs/8h
Hollow/Solid block
400-100-200mm
19200 pcs/8h
Houdi block
450-120-200mm
19200 pcs/8h
S shape paver
225-112.5-60mm
28800 pcs/8h
I shape paver
200-160-60mm
23040 pcs/8h
Holland paver
200-100-60mm
46080 pcs/8h
4. Workers Number: 5-6 Workers
Two workers to load material into Mixer
One Workers to operate block machine
One Workers to load pallet into pallet box of block machine
One or Two workers to carry fresh blocks to curing size
5. Factory Area : 1500-2000M2
Shelter Area; 260M2
6. Pallet Number for QT6-15 automatic block making line: 1500-2000 pallets
Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.
7. Maintance: QT6-15 automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.
8: Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.
9. Guarantee Time: One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.

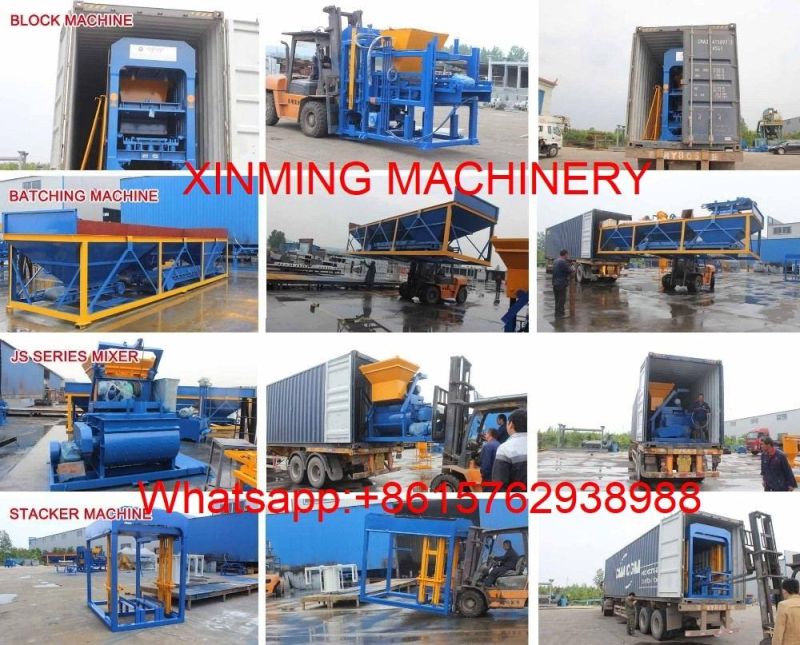

Packaging & Shipping
QT6-15 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.

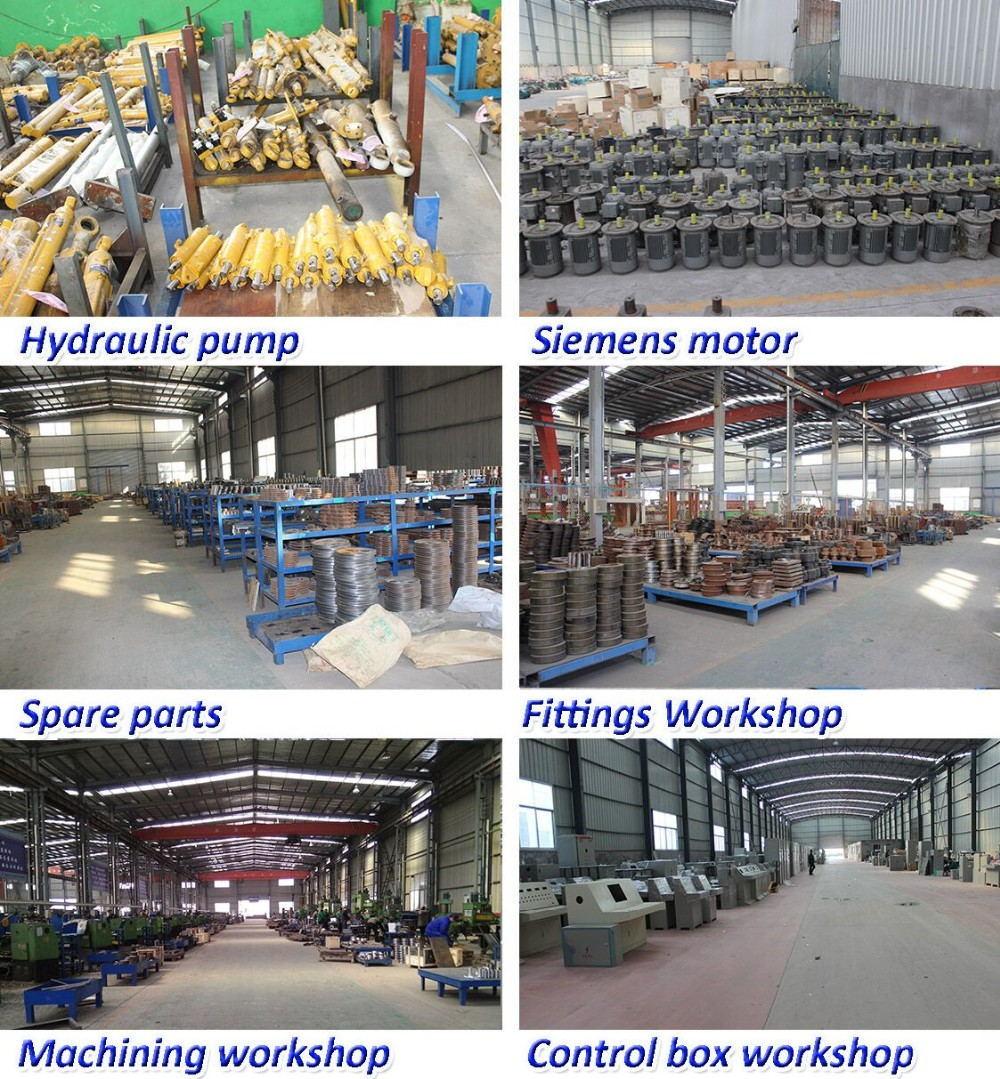

Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories. Our Factory is located in Linyi City, Shandong Province, China.
On the basis of Rich experience and advanced Germany technologies,Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
