• Model NO.：M7MI
• Condition：New
• Color：Red, Yellow
• Pressure：16 MPa
• Voltage：380V,220V, (Adjustable)
• Power：18 HP Diesel Engine
• Shaping Cycle：20s
• Raw Material：Clay, Soil, Earth
• After-Sales Service Provided：Engineers Available to Service
• Pallet Size：No Need Pallet
• Transport Package：Suitable for Sea Transportation
• Specification：2580(L)*1080(W)*1400(H)mm
• Trademark：raytone machinery
• Origin：Shandong, Linyi
• Production Capacity：1600-2400 PCS,Day

Basic Info.

Model NO. M7MI Condition New Color Red, Yellow Pressure 16 MPa Voltage 380V/220V/ (Adjustable) Power 18 HP Diesel Engine Shaping Cycle 20s Raw Material Clay, Soil, Earth After-Sales Service Provided Engineers Available to Service Pallet Size No Need Pallet Transport Package Suitable for Sea Transportation Specification 2580(L)*1080(W)*1400(H)mm Trademark raytone machinery Origin Shandong, Linyi Production Capacity 1600-2400 PCS/Day

Product Description

                                                M7MI Clay Brick Making Machine Details

1. Basic introduction:

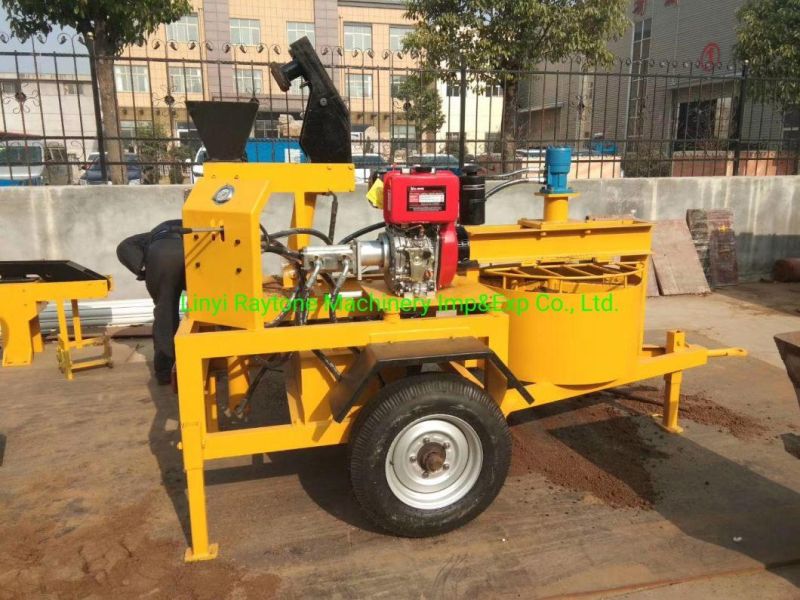

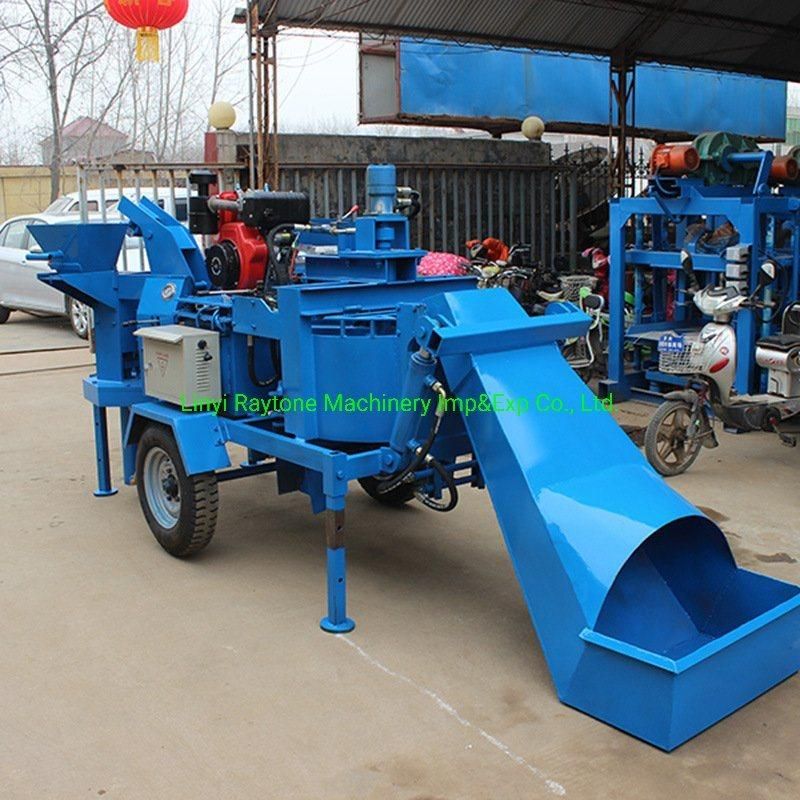

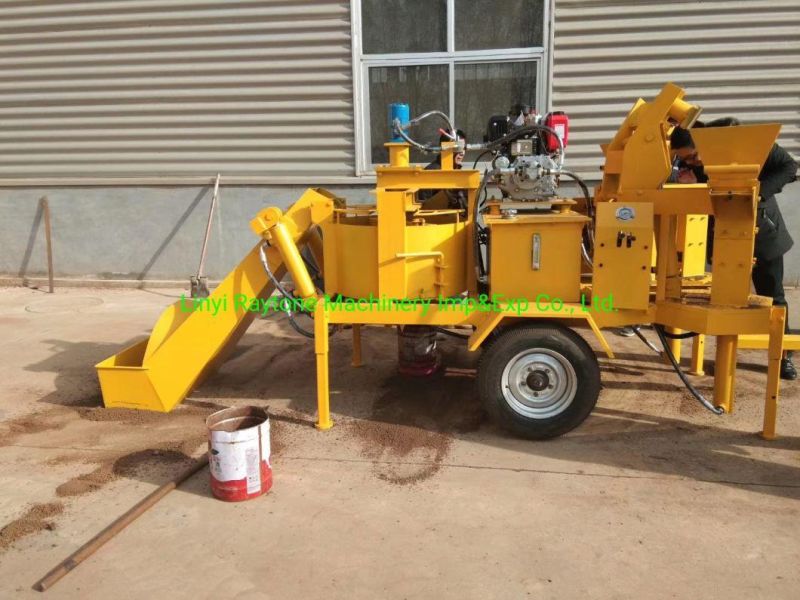

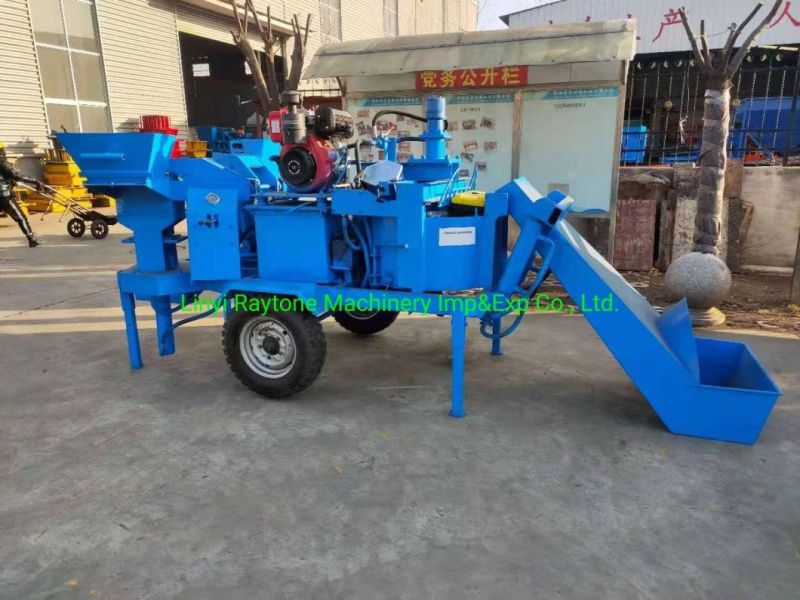

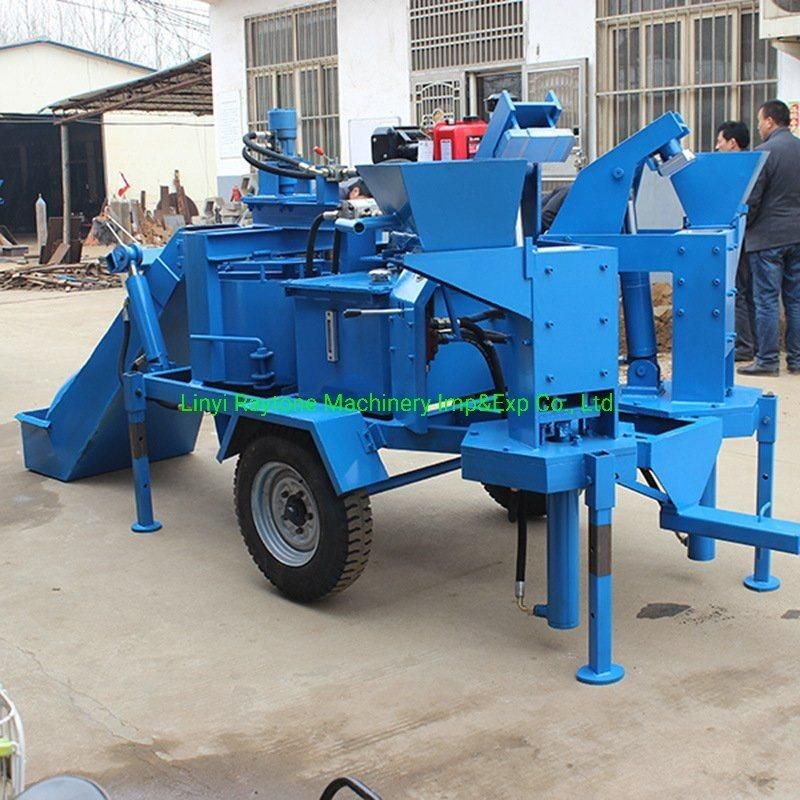

M7MI TWIN Diesel Hydraform Soil Brick Machine is a movable hydraulic brick making machine, its power source is diesel engine, using earth or soil or clay as raw materials, it has two working platform, so its daily productivity can reach 3840 pieces.

2. Product parameters for M7MI TWIN diesel hydraform brick machine

Dimension of host machine	3500x1600x1600mm	Power of host machine	18HP
Weight of host machine	2T	Hydraulic pressure	20T
Shaping method	Hydraulic press	Models of mixer	JQ200
Power supply	Diesel engine 192F with electric start	Forming period	15S
Material feeding type	Hopper feeding	Transportation	Wheel type

3. FAQ about M7MI TWIN diesel hydraform brick machine

(1) What is the clay raw materials formula for this M7MI TWIN diesel brick machine?
There are two formulas:
a.80-90% clay, 6-8% cement, 3% water;
b.97% clay,3% water .

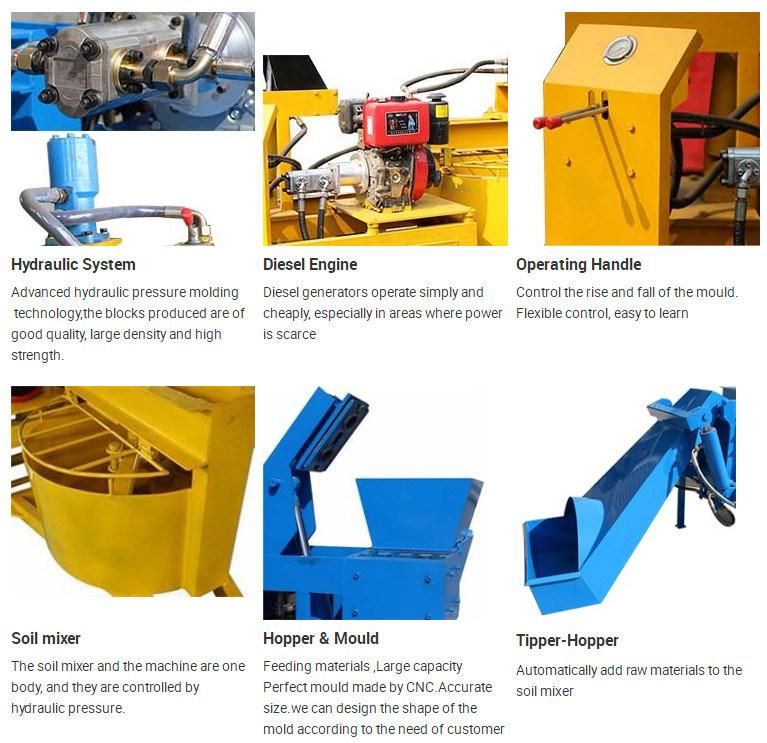

(2) What is the advantages of the M7MI TWIN diesel hydraform brick machine?
a.Diesel engine can avoid the electricity limited in some area where there is power shortage.
b.All the concrete pan mixer, hydraulic chamber pressing, raw material loading hopper are all mounted one the chassis of the trailer, can be towed by car or truck to any project site;
a.Hydraulic system presses the brick high density with high strength.
b.The clay brick machine moulds are all via linear cutting and heat treatment, the linear cutting makes the brick size to be accurate and the heat treatment makes brick mould life prolonged.
(3) What kind hydraulic oil is used for this hydraform block machine?
Normally The 46# anti-wear hydraulic oil is used; in some cold area can use 32# hydraulic oil.
(4) What is the installed pan mixer capacity?
Its input capacity is 320L, output capacity is 200L;
(5) Is this diesel hydraform brick machine can make some unique interlocking bricks?
Yes, this M7MI TWIN brick machine can make four directions interlocking bricks, so the produced blocks can interlock each other from front to back, and from top to bottom; it saves cement and mortar in the building process.
(6) How to operate the diesel clay brick machine?
There are two levers for each working platform, after starting the diesel engine, put the soil raw materials into the mould chamber, then press down one lever to make the pressing head press the soil raw materials, there is a meter to show how much pressure, after 15 seconds pressing, then pull up another lever to push out the brick.
(7) How many workers is need for this M7MI TWIN interlocking brick machine?
totally need 3 workers, two operators and one worker to supply the raw materials to the loading hopper for pan mixer and take the mixed well raw materials to the hopper of work platform;
4. The optional Auxiliary Machines for M7MI TWIN diesel hydraform brick machine

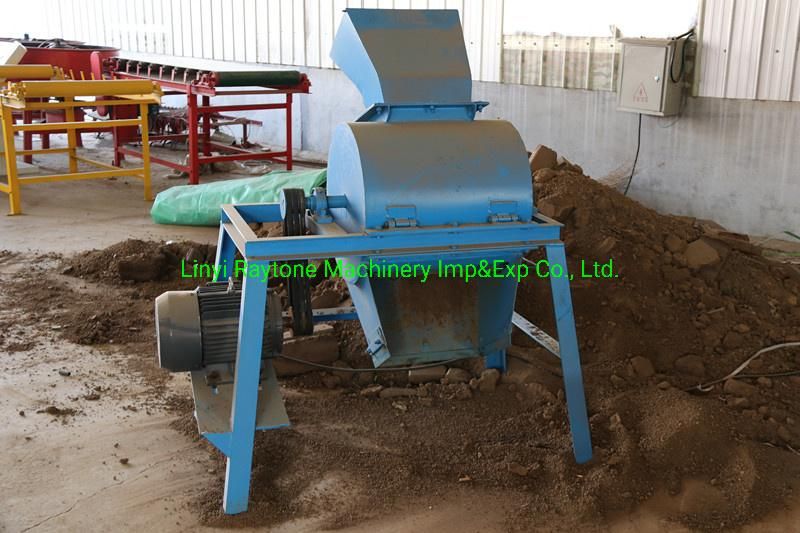

The soil crusher
The soil crushed is used to crushing the soil or construction waste, bricks etc

Power:	5.5kw	Capacity:	500gkgs/hour
Dimension:	1000*1100*1400mm	Weight:	120kgs

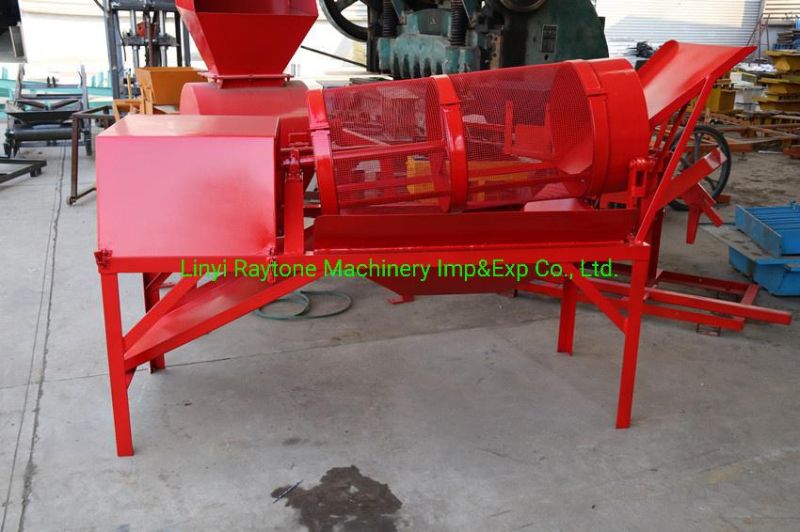

The soil sieving machine
The soil sieving machine is used to sieving the crushed earth or soil to get the powder soil for making bricks by M7MI TWIN diesel hydraform brick machine.

capacity:	480KG/H	power:	3KW
diameter:	500mm,	weight:	320kg

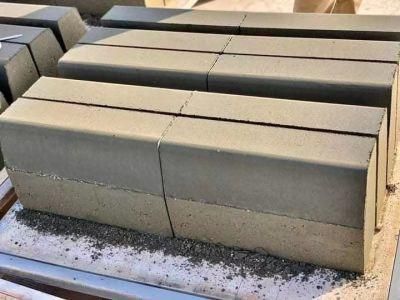

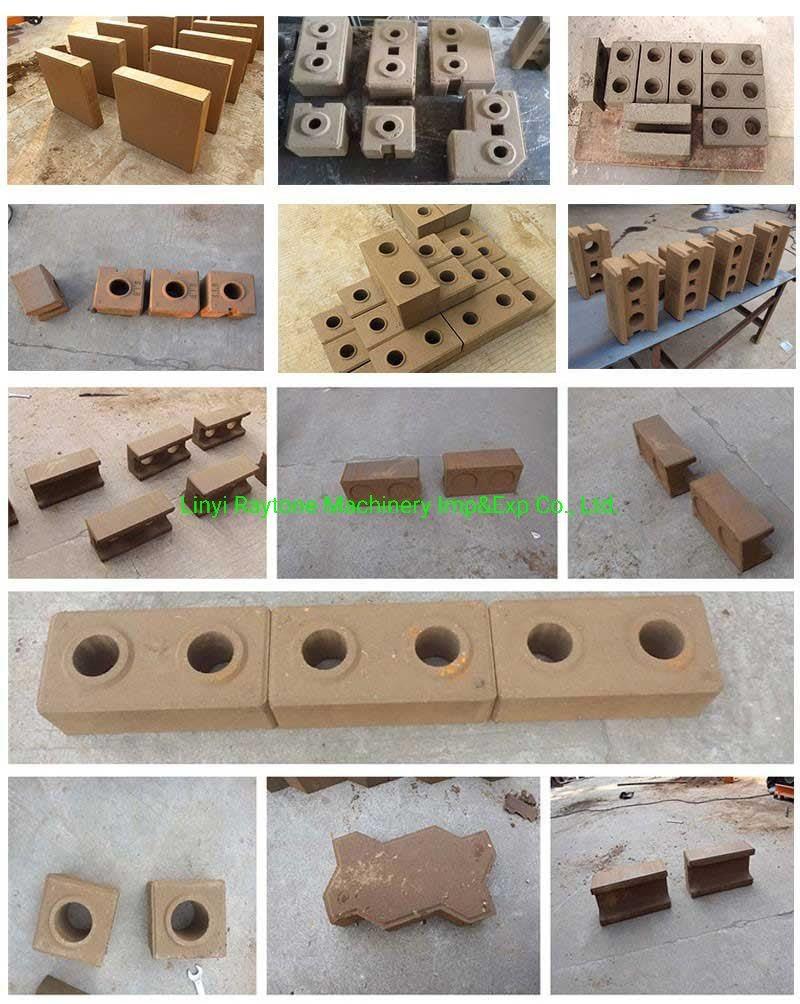

5. Different type clay brick

Welcome contact us if you are interested in o machine .
