High Efficiency Any Angle Cutting Window Machinery Hest Price Window Machine Aluminum Cutting Saw

Jinan Hiwoc Group Co., Ltd.
  • Certification：ISO, CE
  • Automatic Grade：Automatic

Base Info

  • Model NO.：LDTR-75
  • CNC or Not：not CNC
  • Voltage：380V
  • Air Pressure：0.5~0.8MPa G
  • Saw Blade Specification：Ø280×Ø30
  • Input Power：1.1kw
  • Air Comsuption：50L,Min
  • Motor Rotary：2800r,Min
  • Cutting Width*Height：Max 120, 200mm
  • Cutting Angle：0 ~135
  • Repeat Locating Length：≤0.1mm
  • Cutting Profile Surface Roughness：Ra12.5um
  • Angle Cutting Tolerance：±5′
  • Planeness of Cutting Surface：≤0.10mm
  • Weight：480kg
  • Transport Package：Wooden Package
  • Specification：740× 660× 1300mm
  • Trademark：Hiwoc
  • Origin：Shandong, China
  • HS Code：84659200
  • Production Capacity：3000PCS

Description

Basic Info.

Model NO. LDTR-75 CNC or Not not CNC Voltage 380V Air Pressure 0.5~0.8MPa G Saw Blade Specification Ø280×Ø30 Input Power 1.1kw Air Comsuption 50L/Min Motor Rotary 2800r/Min Cutting Width*Height Max 120, 200mm Cutting Angle 0 ~135 Repeat Locating Length ≤0.1mm Cutting Profile Surface Roughness Ra12.5um Angle Cutting Tolerance ±5′ Planeness of Cutting Surface ≤0.10mm Weight 480kg Transport Package Wooden Package Specification 740× 660× 1300mm Trademark Hiwoc Origin Shandong, China HS Code 84659200 Production Capacity 3000PCS

Product Description

High efficiency any angle cutting window machinery hest price window machine aluminum cutting saw



Feature
1.Used for aluminum windows and doors profiles cutting and for curtain wall profile cutting also for plastic profiles cutting.

2. Adopted carbide alloy blade, cutting smoothly.

3. This machine with up-feed blade and digital display positioning system(depends on request)
4. Spray device, to realize fast cooling
5. Can cutting many pieces profiles in same time.
Parameter
Air Pressure0.5~0.8MPa
Saw blade specification50L/min
Input Voltage380V 50Hz or As Customer need
Input Power1.1Kw
Saw blade specification  Ø280×Ø30
Air comsuption50L/min
Motor rotary  2800r/min
Cutting width*heightMax 120, 200mm
Overall Dimension740×660×1300mm
Cutting angle   0° ~135°
Repeat locating length≤0.1mm
Cutting profile surface roughness Ra12.5Um
Angle cutting tolerance  ±5′
Planeness of cutting surface ≤0.10mm
Weight480kg

Main accessory
Saw bladeUniken
Solenoid valveSTNC
CylinderHuatong
MotorAnhui Sanyang (Best Chinese Motor Brand)
Air Filter DeviceSTNC
Electrical Button and SwitcherSchneider
AC Contactor and Circuit BreakerSchneider
Approach SwitchJapan Omron
Linear bearing systemLinear (South Korean brand)

Standard accessory
Saw blade1pcs
Work piece supports2set
Air Gun1pc
Complete tooling1set
Certificate1pc
Operation Manual1pc

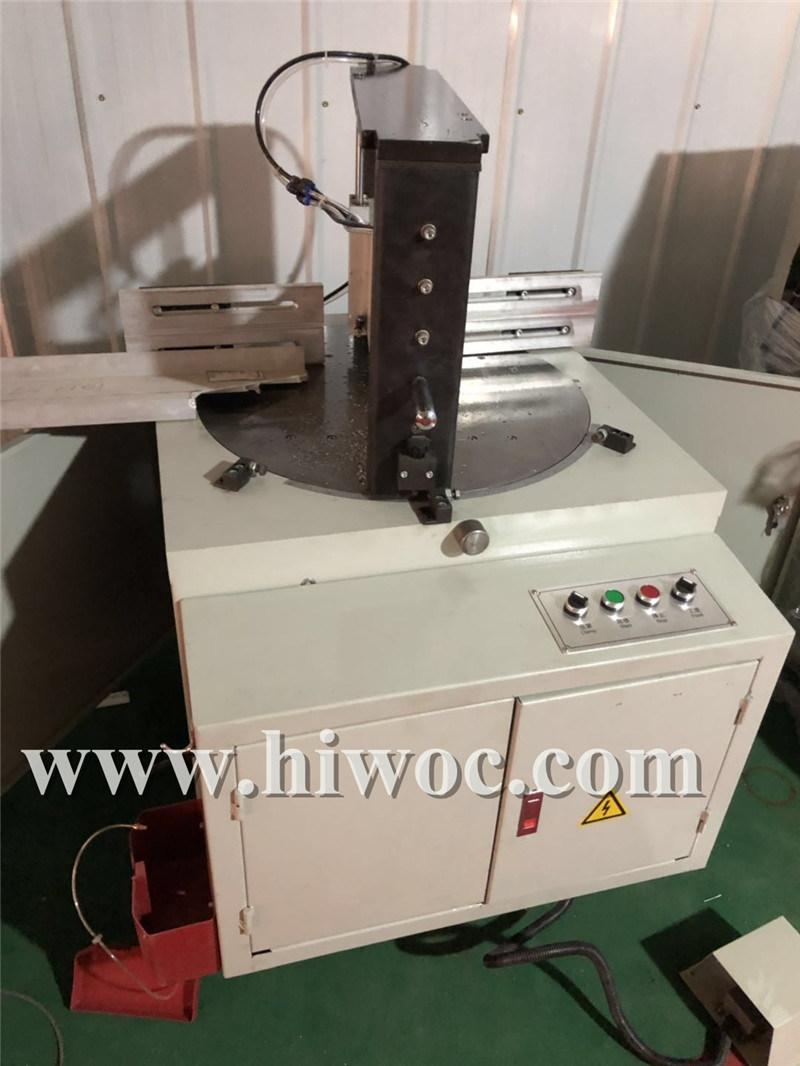

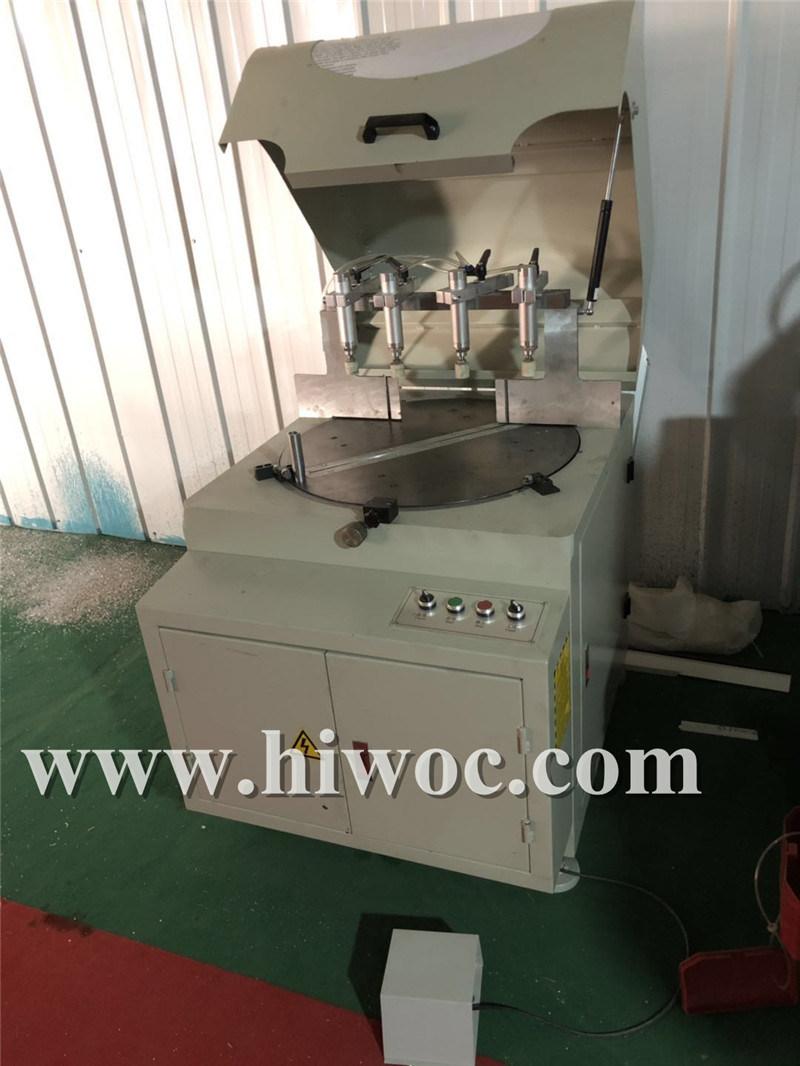

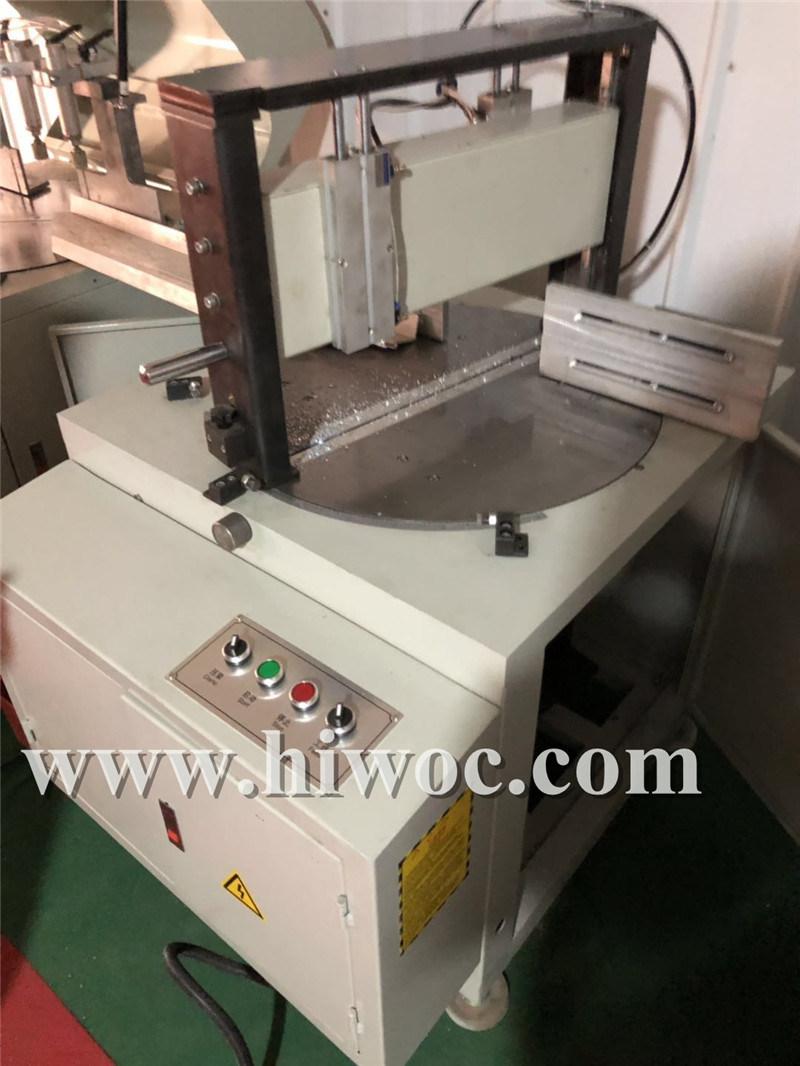

Machine details:
