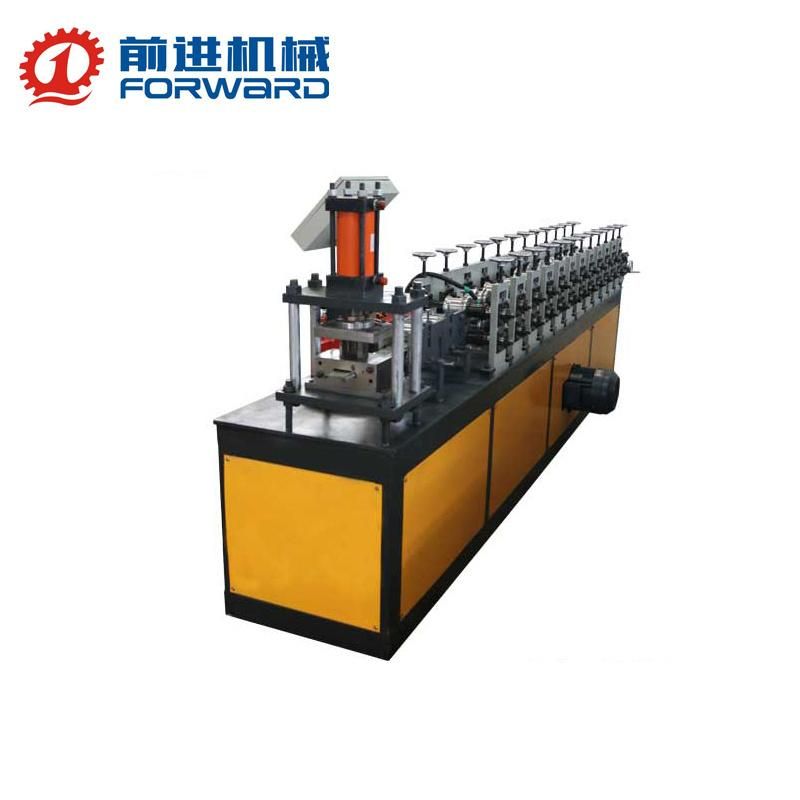

Low Cost Roller Shutter Garage Door Used Cold Roll Forming Machine

Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.
  • Warranty：12 Months
  • Tile Type：Roller Shutter Door
  • Certification：CE, ISO, SGS
  • Condition：New
  • Customized：Customized
  • Usage：Roof

Base Info

  • Model NO.：Customized
  • Transmission Method：Electric
  • Suitable Material：Gi,Gl
  • Suitable Thickness：0.3-0.6mm
  • Profile Drawing：Customized
  • Voltage：as Customer′s Request
  • Speed：15-20m,Min
  • Delivery Time：40-60 Days
  • Loading Method：FCL
  • PLC：Delta
  • Touch Screen：Touch Win
  • Encoder：Omron
  • Inveter：Saj
  • Electric Components：Delixi or Chnt
  • Driving Motor：Lichao
  • Hydraulic Motor：Lichao
  • Transport Package：Export Package
  • Specification：20GP
  • Trademark：FWD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets,Month

Description

Overview Product DescriptionGeneral InformationCoil MaterialGI/GLCoil Thickness0.6~1.2MMCoil Width---Speed15-20M/MINVoltageAs Customer's RequestRoll Forming UnitRoller Station12Driving Motor5.5KWShaft Diameter50mm SolidShaft Material45# Hard SteelRoller MaterialCr12Under FrameSquare Tube WeldedSidewall ThicknessMemorial Archway TypeTransmissionGearFeeding Device1 SetCutting UnitCutting TypeHydraulic Non-stop TO CutHydraulic Pump Power3KWCutting Die MaterialCr12MovHydraulic Oil46# Abrade OilControl UnitControl MethodPLCLength ControlEncoderOperationTouch ScreenLanguageChinese & EnglishAuxilliary Device---1.5T Manual Decoiler---Exit Rack
*All parts can be customized as customer's request.

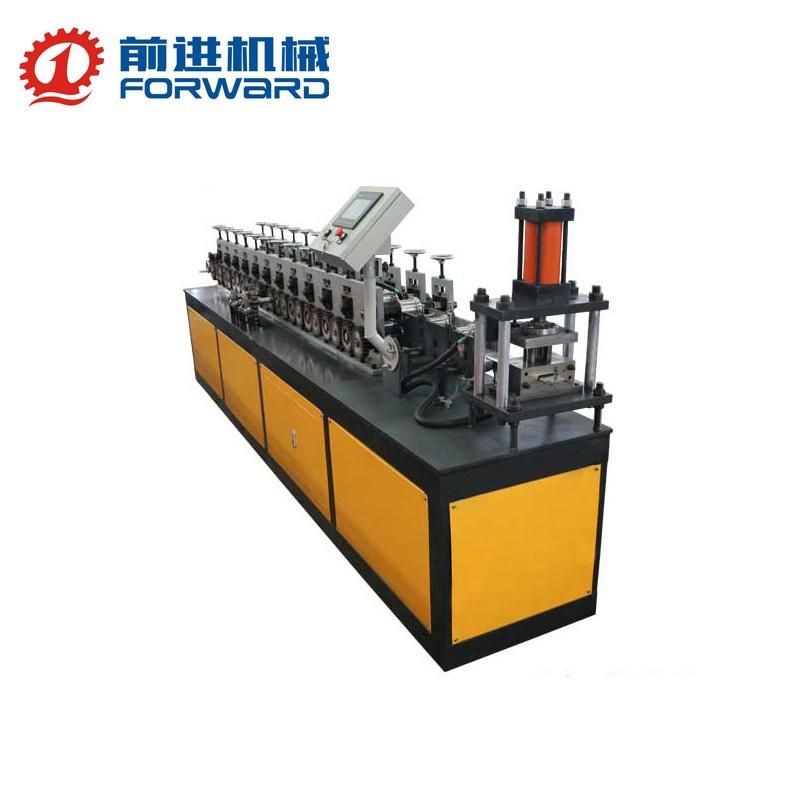

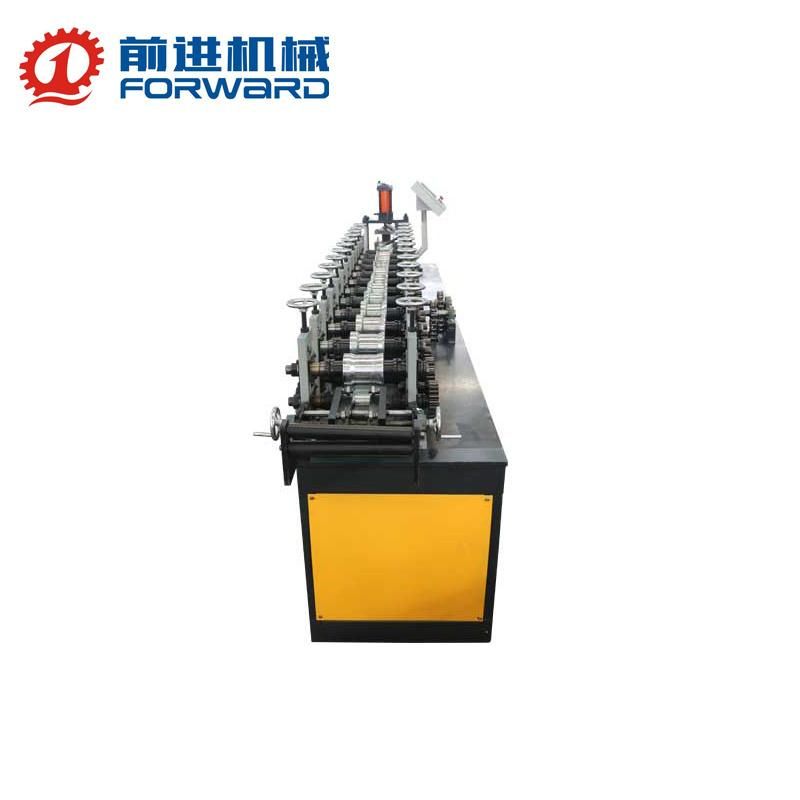

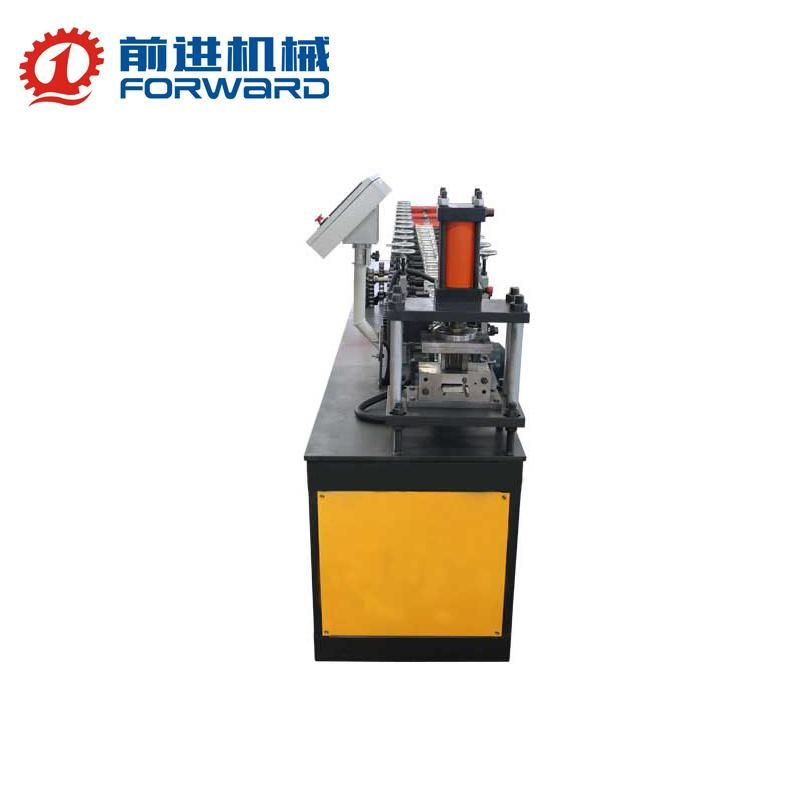

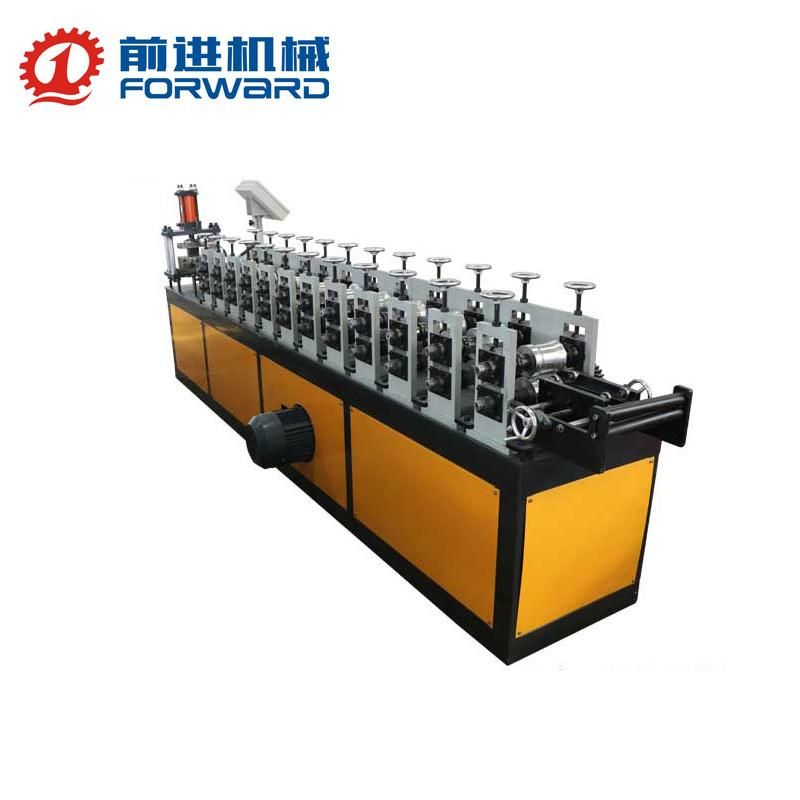

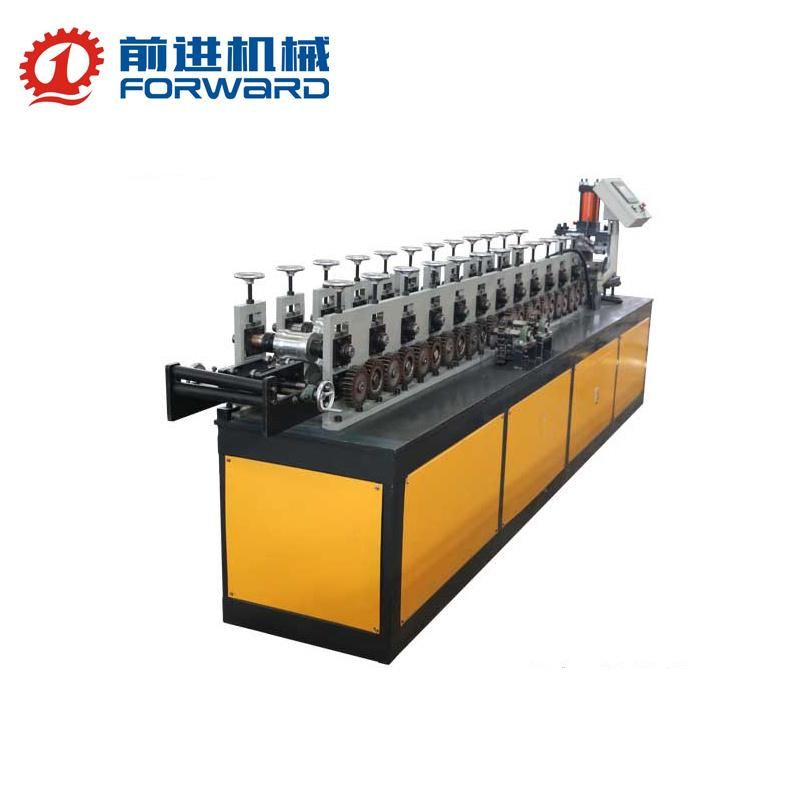

  Detailed PhotosLow Cost Roller Shutter Garage Door Used Cold Roll Forming MachineLow Cost Roller Shutter Garage Door Used Cold Roll Forming MachineLow Cost Roller Shutter Garage Door Used Cold Roll Forming MachineLow Cost Roller Shutter Garage Door Used Cold Roll Forming MachineLow Cost Roller Shutter Garage Door Used Cold Roll Forming MachineLow Cost Roller Shutter Garage Door Used Cold Roll Forming Machine



Certifications

Low Cost Roller Shutter Garage Door Used Cold Roll Forming Machine

Packaging & Shipping

Low Cost Roller Shutter Garage Door Used Cold Roll Forming Machine

Company Profile

Low Cost Roller Shutter Garage Door Used Cold Roll Forming Machine
Low Cost Roller Shutter Garage Door Used Cold Roll Forming Machine

FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
