• Model NO.：request
• Power Source：Electric
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Customized：Customized
• Voltage：380V 3phase 50Hz
• Whole Production Length：2-5m,Min
• Material of Blade：Cr12
• Power：40kw
• PLC：Delta
• Effective with：950mm
• Feeding Width：1250mm
• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：Standard Export Package, Water-Proof Package
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：5sets,Per Month

Suitable material

Color steel sheet , galvanized steel sheet,

Main motor power

4KW

Hydraulic station power

4KW

Hydraulic oil

36#

Thickness of material

0.2mm~0.8mm

Diameter of principal axis

Φ75mm

Material expand width

1000mm-1250mm

Electric tension

380V 3phase 50HZ or as the customer's requirements

Material of roller

High grade 45# forged steel

Rolling galvanization thickness

0.05mm

Processing speed

2-6m/min

Processing precision within

1.00mm

Material of cutting blade

Cr12 mould steel with quenched treatment

Kind of drive

0.6 inch chain link bearing model 6210

Roller station

15 Rollers

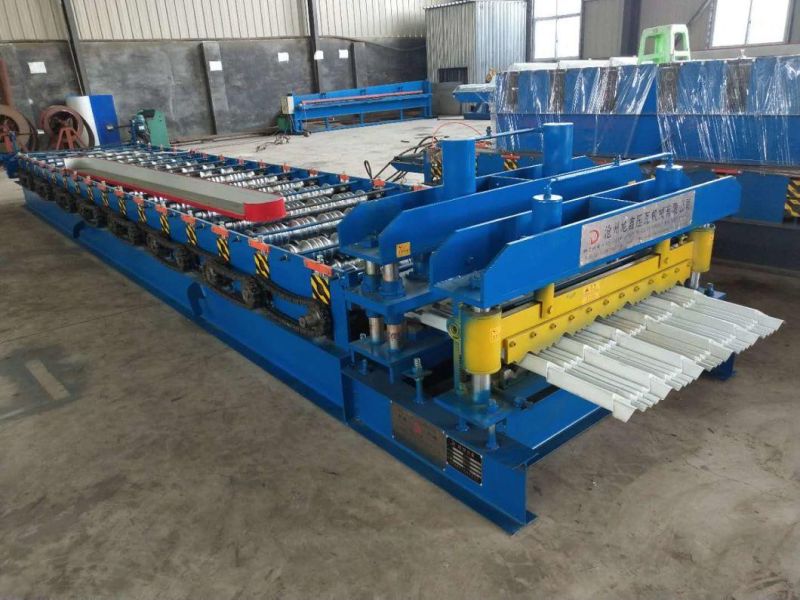

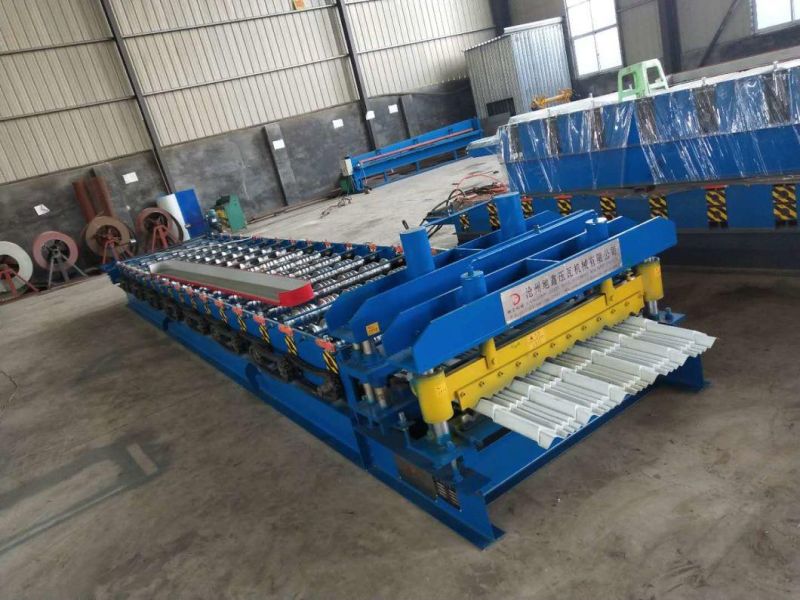

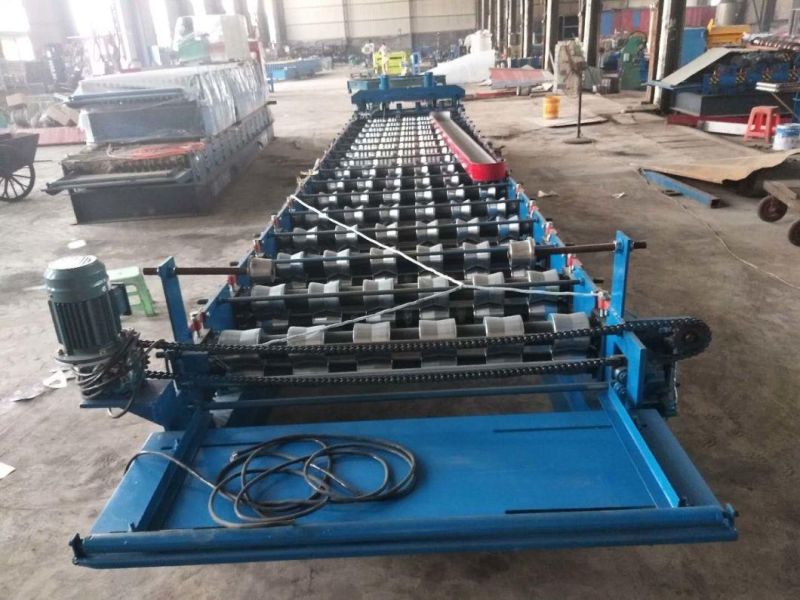

3.Machine photos for your reference.

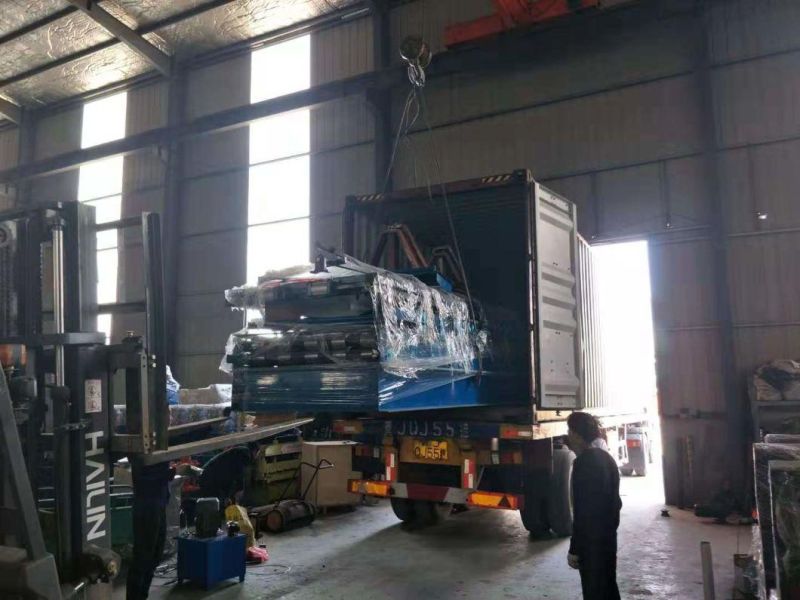

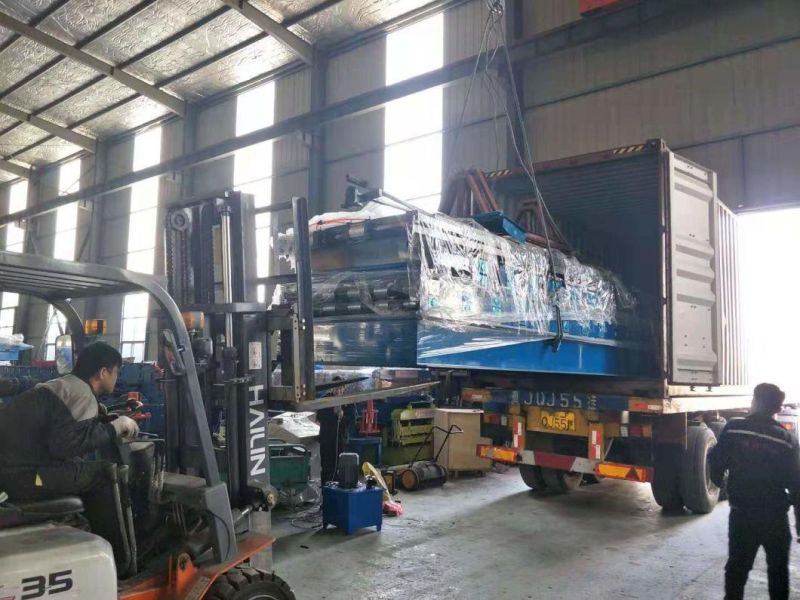

4.Packing and shipping details
 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.

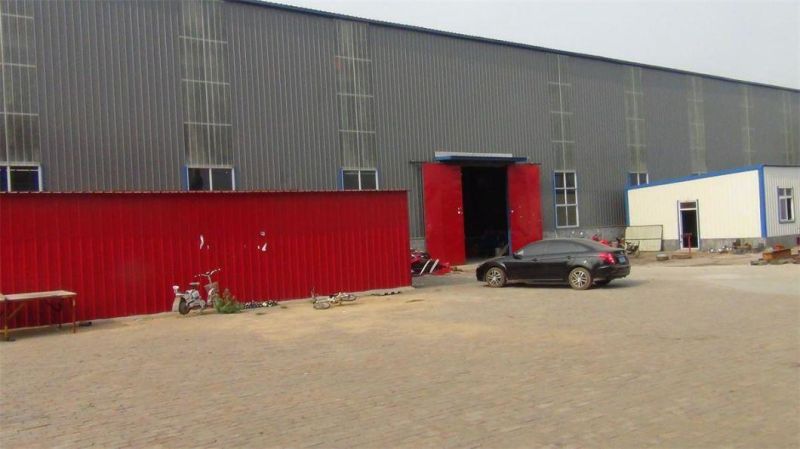

5.About our company

We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor from all the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany.

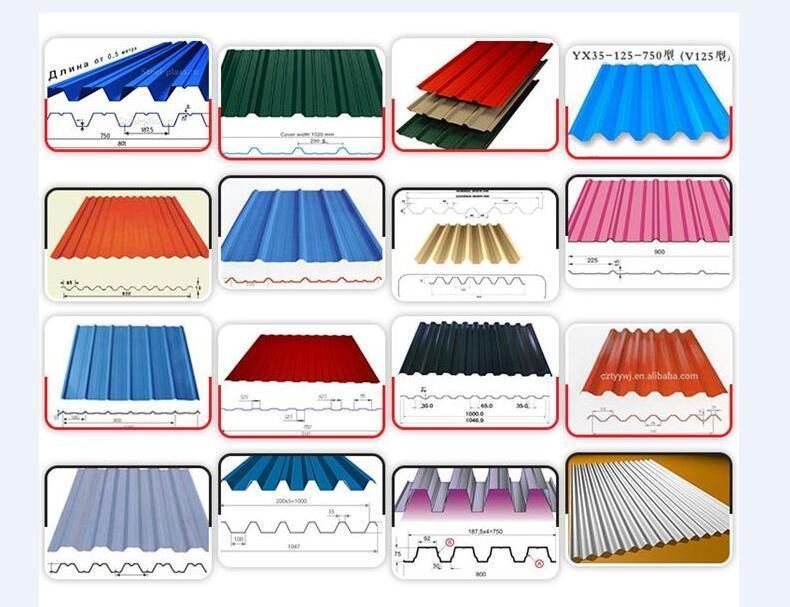

6.Some others design fort your choose

7. FAQ:
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .

2. If your company roll froming machine has PCL control, or have any other spare parts?
A: Yes, our roll froming machine has, and the other spare parts, we can provide you one manuel type decoiler for free to you.

3.  What is your trade terms of roll forming machine?
A : FOB, CFR and CIF all acceptable.

4.What's the Payment Terms of roll forming machine ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

5. What's the MOQ of roll forming machine?
A: 1 set .
