• Model NO.：ZY-HF50
• Pipe Diameter：15.9-50.8mm
• Pipe Thickness：0.6-2.5mm
• Pipe Shape：Round
• Uncoiler：Double-Head or Single-Head
• Solid State High Frequency：200kw
• Cutting：Flying Saw
• Main Motor：75kw
• Color：as Your Requirement
• Max. Speed：120m,Min
• Transport Package：Rain-Proof Package, Shipping
• Trademark：Zhangyun Machinery
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：10sets,Month

Basic Info.

Model NO. ZY-HF50 Pipe Diameter 15.9-50.8mm Pipe Thickness 0.6-2.5mm Pipe Shape Round Uncoiler Double-Head or Single-Head Solid State High Frequency 200kw Cutting Flying Saw Main Motor 75kw Color as Your Requirement Max. Speed 120m/Min Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

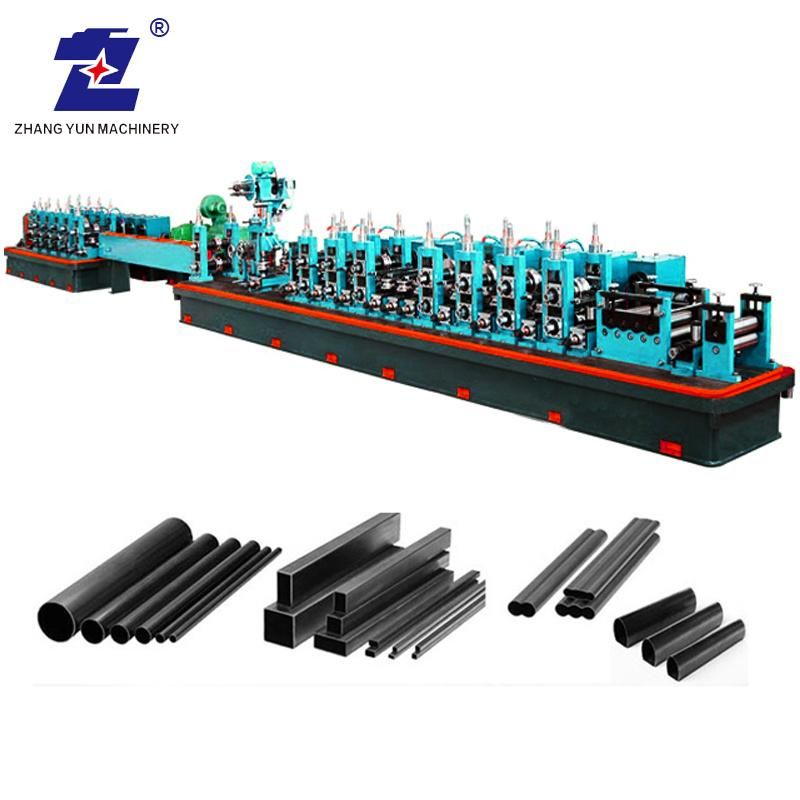

Tube Making Line
 Description: High frequency welding is used in the production of steel welded pipes. High frequency welding has larger power supply, and higher welding speed can be achieved for steel pipes with different material, caliber and wall thickness.

Technical Paramters
INCOMING RAW MATERIAL

Raw material	HR,CR carbon steel coil
Tensile Strength	σb≤600Mpa
Yield Strength	σs≤315Mpa
Strip width	35~160mm
O.D of steel coil	Max. Φ2000mm
I.D of steel coil	Φ508mm
Weight of steel coil	Max. 3.5 ton/coil
Round Pipe Wall thickness	0.6 ~2.5mm
Strip condition	Slitting edge
Strip thickness tolerance	Max. ± 5%
Strip width tolerance	± 0.1mm
Strip camber	Max. 5mm/10m
Burr height	≤ (0.05 x T) mm (T-strip thickness)

    MACHINE CAPACITY

Round pipe	Φ15.9 ~ Φ50.8mm *0.6 ~ 2.5mm
Square	Φ12*12 ~ 40*40mm *0.6 ~ 2.0mm
Rectangle	Φ20*10 ~ 60*20mm *0.7 ~ 1.5mm (a*b≤3:1)
Cutting length	4 ~ 12m
Length tolerance	Cold saw ± 2.0mm, Hot Saw ± 3.0mm
welding speed	30~120m/min
Strip storage	Horizontal spiral accumulate loop
Main mill driver motor	SIEMENS AC inverter-AI75Kw/1500rpm*2sets
Solid state high frequency	GGP-200-0.35-HC


Working Process
Double-head un-coiler →→Strip-head Shearer & TIG butt welder station →→Horizontal spiral accumulator group →→Forming M/C (Main driving unit + Flattening Entry unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Horizontal ironing stand) →→ Emulsion water Cooling section →→ Sizing M/C (Main driving unit  + Sizing section + Speed testing unit + Turk straightener + Vertical pull-out stand) →→ NC flying saw under computer control →→ Run-out table
