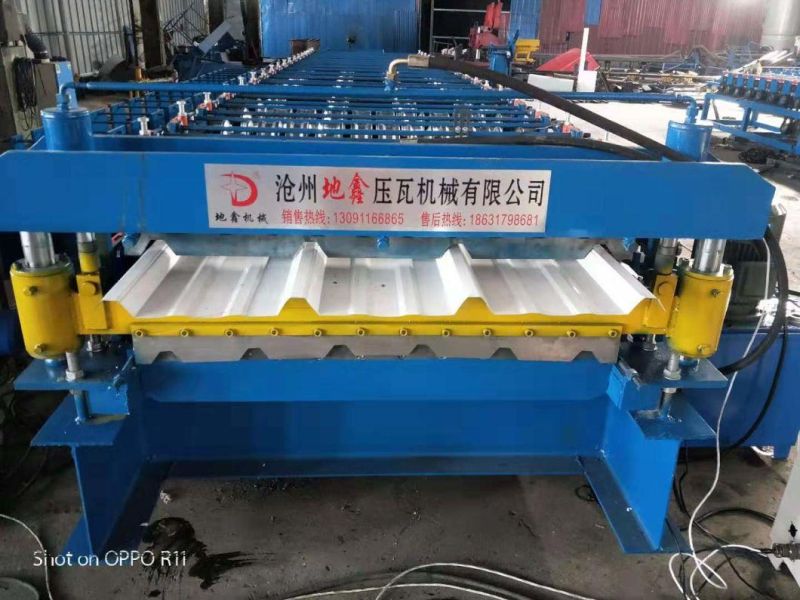

High Cost-Performance Trapezoidal Double New Type Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Hydraulic Pressure

Base Info

  • Model NO.：1000
  • Counter：Omron
  • Raw Material：Galvanized Sheet
  • Control System：Panasonic
  • Thickness：0.3-0.8
  • Cutting Type：Hydraulic Cutting System
  • Application：Building Construction
  • Transport Package：Nude
  • Specification：CE SGS ISO
  • Trademark：DIXIN
  • Origin：Botou, Hebei, China
  • HS Code：84552210
  • Production Capacity：50 Sets,Month

Description

Basic Info.

Model NO. 1000 Counter Omron Raw Material Galvanized Sheet Control System Panasonic Thickness 0.3-0.8 Cutting Type Hydraulic Cutting System Application Building Construction Transport Package Nude Specification CE SGS ISO Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 50 Sets/Month

Product Description

High Cost-performance Trapezoidal double new type roll forming machine

(If you want to learn more, please copy the link below):

https://czdixin.en.made-in-china.com
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine

Panel drawing
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine

Technical parameter

1. Dimension: 6500mm × 1300mm × 1500mm

2. Molding method: roll forming (pre-compression molding)

3. Number of rows: V900 roll 9 row pre-compression molding, V860 roll row 11 pre-compression molding

4. Feed width: 1000mm

5. Plate thickness: 0.3-0.8mm

6. Equipment shaft diameter: Φ70mm

7. Host power: 3KW

8. Rolling speed: 10m-12m / min

9. Machine weight: 3900kg or so

10. Pump motor: 3KW

11. Equipment frame: 300H steel

12. Shear material: Cr12 (chrome 12)

13. Equipment drive: sprocket, chain

14. Automatic computer fixed length cut off system

Working flow
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine









Packaging
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
High Cost-Performance Trapezoidal Double New Type Roll Forming Machine



FQA
 1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station  (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
