• Model NO.：door frame machine
• Control Type：CNC
• Automatic Grade：Automatic
• Drive：Hydraulic
• Type：Door Frame Machine
• Method：Roll Forming Machine
• Automation：Automatic
• Tolerance：1.0mm
• Material：Steel
• Processing：Steel

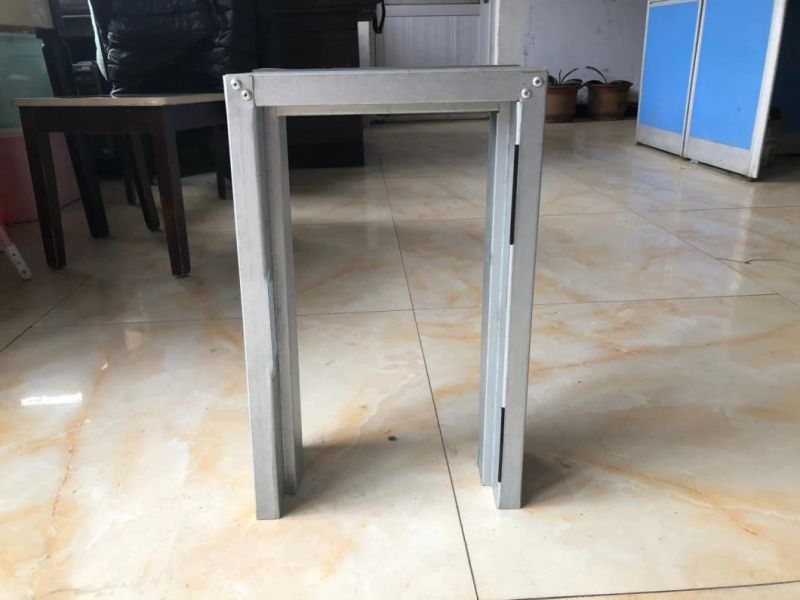

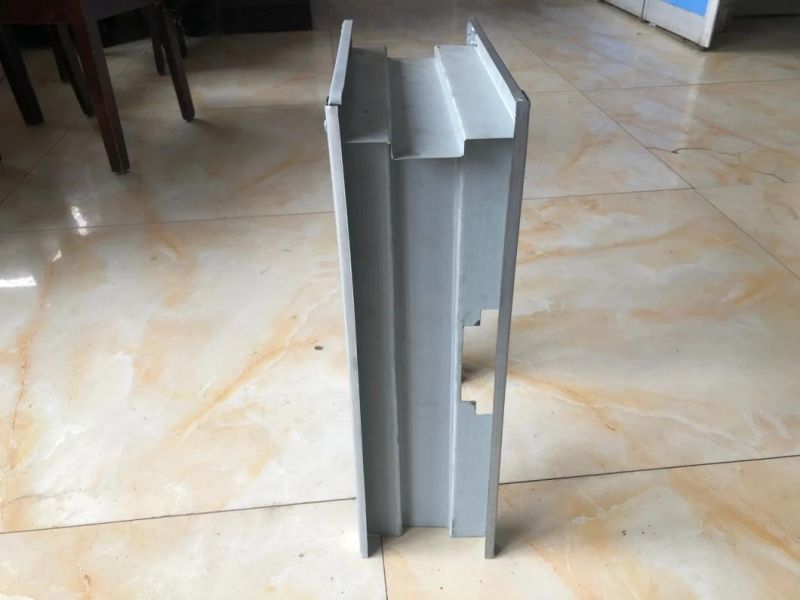

• Product：Door Frame
• Main Frame：350 H Steel
• Middle Plate：16mm
• Speed：8-12 Metes
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：10sets,Per Month

Basic Info.

Model NO. door frame machine Control Type CNC Automatic Grade Automatic Drive Hydraulic Type Door Frame Machine Method Roll Forming Machine Automation Automatic Tolerance 1.0mm Material Steel Processing Steel Product Door Frame Main Frame 350 H Steel Middle Plate 16mm Speed 8-12 Metes Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 10sets/Per Month

Product Description

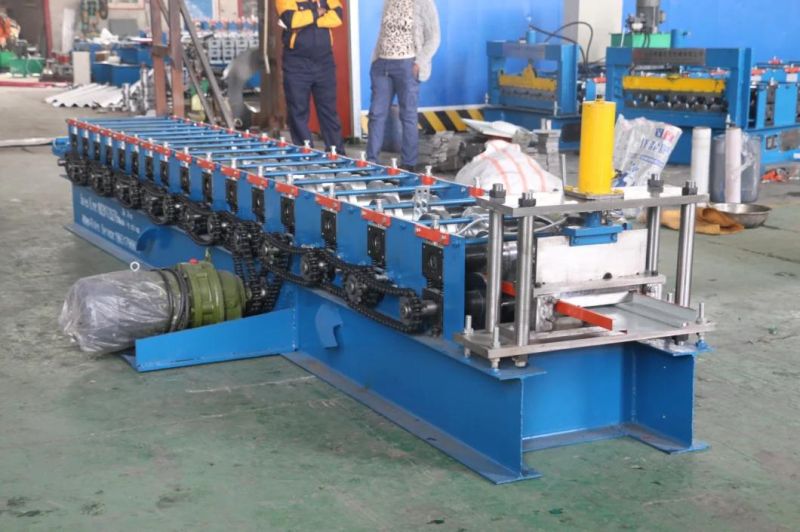

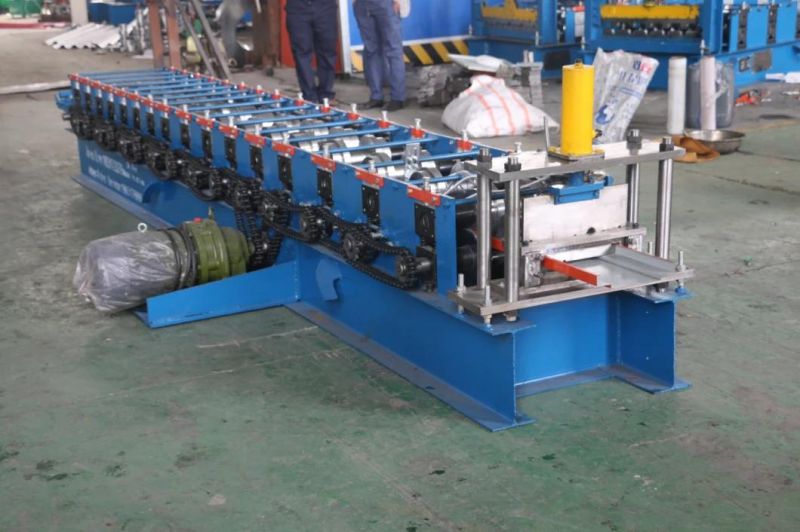

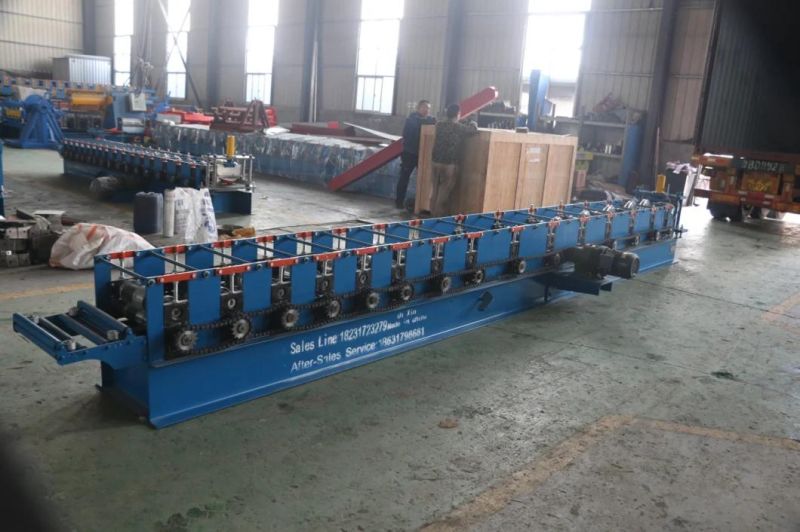

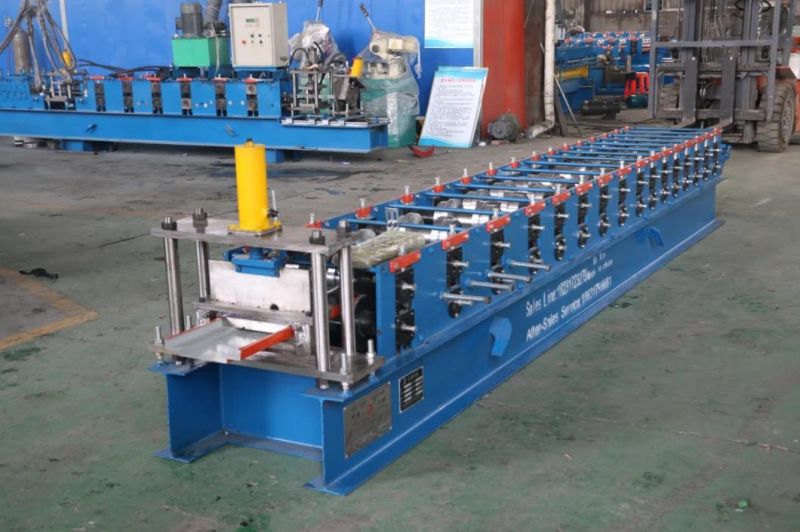

DIXIN steel door frame roll forming machine

We are manufacturer of roll forming machine for 8 years, and ever sold machines to many countries, such as: US, UK, Canada, Russia, Zambabwe, Italy, Azerbaijan. etc.

Our machine advantages
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.

1. Technique parameters

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	Max 1mm
3.Feeding width:	As design

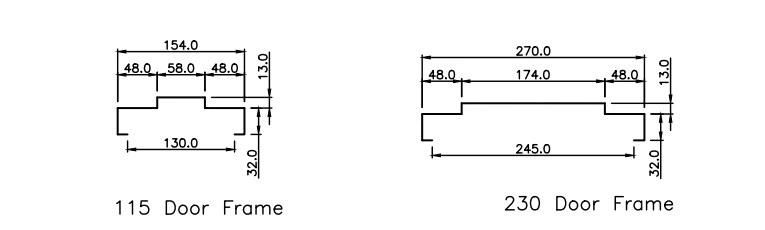

4.Effective width	115mm
5.Main motor power	7.5kw (Shanghai Lichao)
6.hydraulic pump power	5.5kw (Shanghai Lichao)
7. Shaft diameter	70mm
8.Forming steps	15steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 7200*800*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

4. Warranty
24 months, and lifelong technical support service

5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

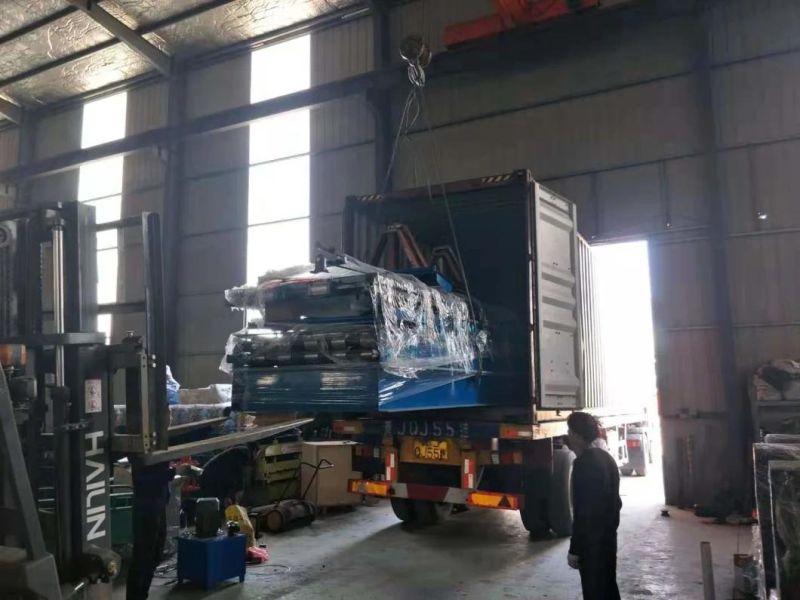

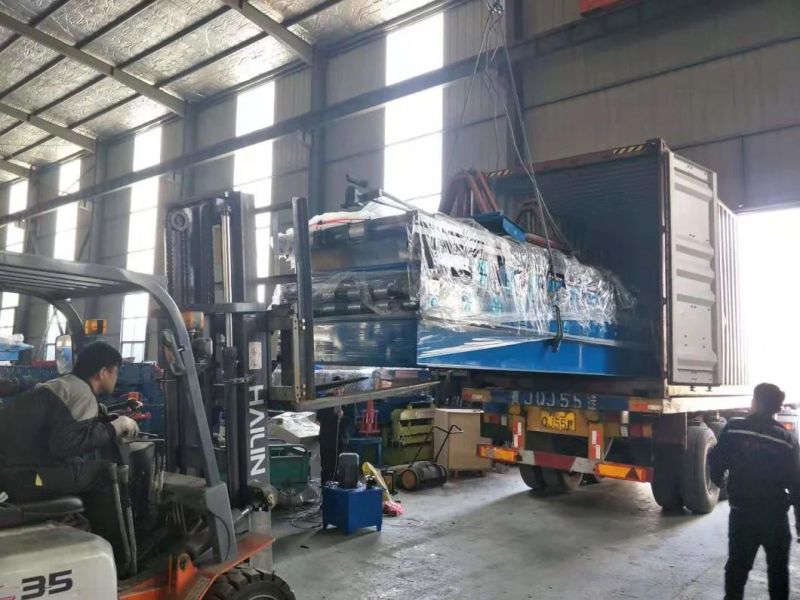

6. Package
Standard export package, water-proof package, covered with plastic film

FAQ:
Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.



Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.



Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.



Q: What's your service ?

A: 1. We provide 1 year warranty for our customers.
    2. Any parts damaged because of quality problem will be changed for free within the first year.
    3. Technical support is provided for free in the whole life of the machine.



Q: How to visit our company:

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3.Fly to Tianjin airport: By high speed train From Tianjin Xi or Tianjin Nan to Cangzhou Xi (0.5 hour),then we can pick up you.

We provide you 24-hour online service, welcome to contact.




Welcome to our company: Cangzhou Dixin Roll Forming Machine Co.,Ltd.
