High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine

Nantong Hengda Non-Burned Machinery Engineering Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Customized：Non-Customized
  • Automatic Grade：Automatic
  • Type：Block Making Machine
  • Method：Hydraulic Pressure
  • Processing：Interlocking Brick Machine

Base Info

  • Model NO.：QT10-15
  • Product：Block, Paver, Curbstone
  • Brick Raw Material：Cement, Sand, Stone
  • Automation：Automatic
  • Tolerance：0.5mm
  • Transport Package：Nude Packing
  • Specification：ISO9001, CE, SGS
  • Trademark：HENGDA
  • Origin：Jiangsu, China
  • HS Code：84748090
  • Production Capacity：300sets,Year

Description

Production per mould

10pcs/mould (Hollow block: 390×190×190mm)

48pcs/mould (Solid block: 240×115×53mm)

24pcs/mould (Interlocking block: 225×112.5×60mm)

35pcs/mould (Holland brick: 200×100× 60-80mm)

Cycle time

15-25 seconds(Depending on product type)

Production per shift
(8 working hours)

Hollow block (400×200×200mm): 14400-19200pcs

Solid block (240×115×53mm): 77760-92160pcs

Interlocking block: 240×115×90mm): 31104-46080pcs

Holland brick (200×100×60-80mm): 40320-50400pcs.

Vibration frequency

2940 -3600rolls/minute or 50Hz

Vibrating force

100kN

Motors power

48kw

Volume of hoppers

Main material: 900L

Face material: 750L

PVC Pallet size

1100×850×22mm

Gross weight

9.0 T (without face mix device)

12T (with face mix device)

Raw materials

Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste.

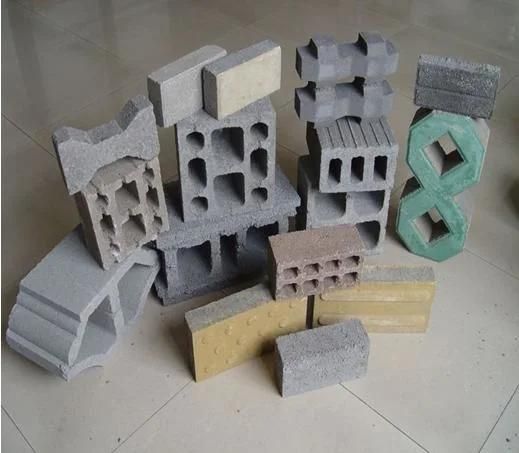

Applicable products

Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied fields

Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc.


High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine
High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine
High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine
High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine
High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine

High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine



High Capacity Qt10-15 Brick Making Machine Paving Interlocking Brick Machine



Buying details
We have two kinds of brick machine, one produce clay brick making machine, another produce concrete block making machine, when you want to buy, you please tell me
1. You need clay brick making machine or concrete block making machine?
2. Your brick size( length, width and height)
3.Your brick picture and brick production

Anticipating for your inquiry, and we warmly welcome the new and old customers to visit our company.
