• Model NO.：12.38*160m
• Transport Package：Container or Truck
• Specification：according to customer capacity and brick size
• Trademark：hengda
• Origin：China
• HS Code：84748090
• Production Capacity：100000pieces,Day, 150000pieces,Day,200000pieces,Da

Basic Info.

Model NO. 12.38*160m Transport Package Container or Truck Specification according to customer capacity and brick size Trademark hengda Origin China HS Code 84748090 Production Capacity 100000pieces/Day, 150000pieces/Day,200000pieces/Da

Product Description

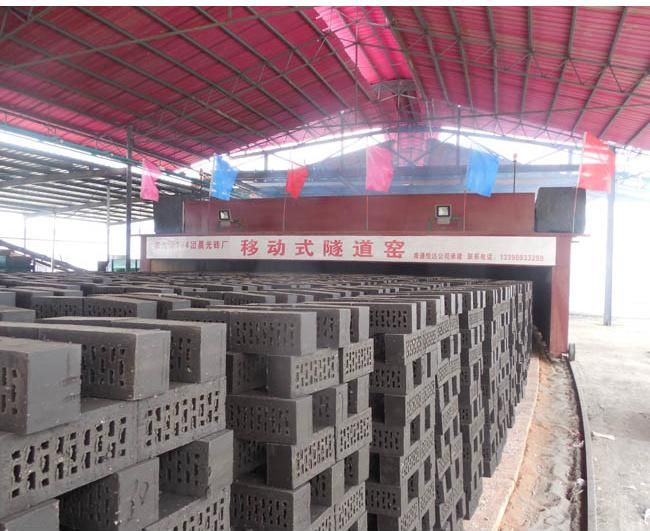

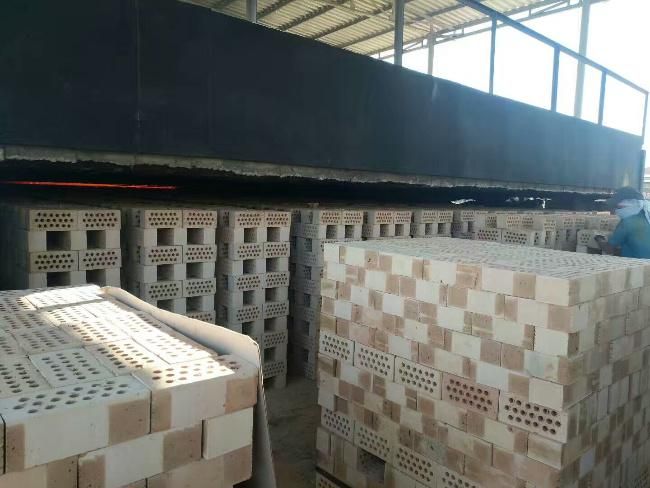

Tunnel kiln is the main stream kiln type of sintered brick factory at present. Compared with the earlier developed wheel kiln, it has high output, low energy consumption, high degree of automation, few workers and low production cost. When the state attaches importance to environmental protection, it has also reached the national environmental protection emission standards. The main body is welded and spliced with steel structure, and built-in refractory cotton. Because of its internal section size geotechnical, conventional can be divided into 6.9m section mobile kiln, 8.88m section mobile kiln, 10.8m section mobile kiln, 12.588m section mobile kiln and so on. It is suitable for sintering various raw materials such as shale, coal gangue, clay, river mud and tailings slag. The tunnel kiln designed by our company is energy-saving, high-yield, low-consumption, environmentally friendly and of excellent quality

The main influencing faors of kiln body specification selection

  1- Raw materials;
  2- Brick typ for finished product output or blank output
  3- Demand for finished product output or blank output
 4- Different fuel

 Kiln structure

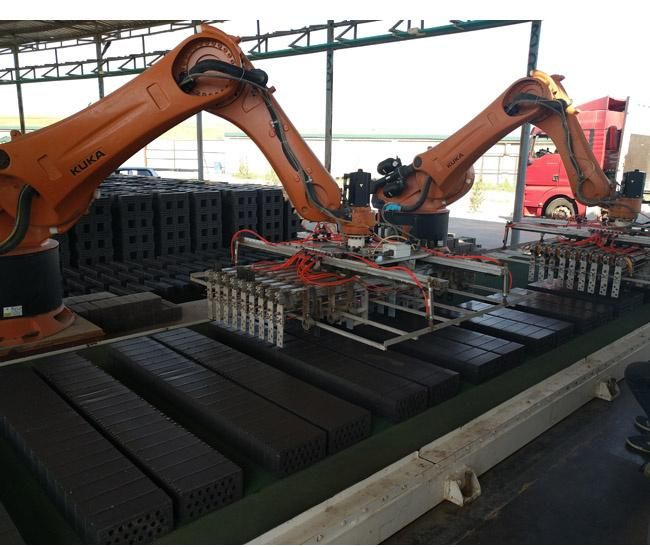

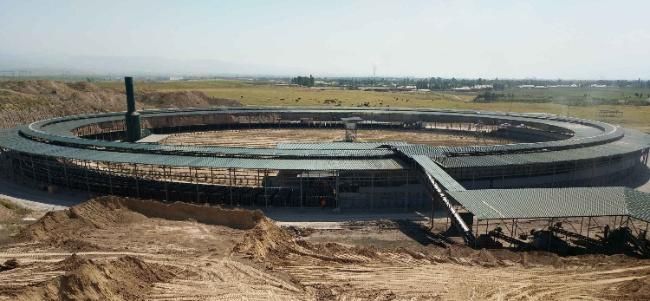

 "New environmentally friendly rotary energy-saving kiln" is mainly composed of automatic walking kiln, ring track, ring power supply system, air duct system, ring billet transport system, automatic billet stacking system, automatic coal distribution, water distribution, cutting, cutting blank, roasting System and other ancillary facilities.

Kiln characteristics
"The new environmentally friendly rotary energy-saving kiln" adopts all-steel frame structure and fiber combination to make the production section wider, the output is larger, the energy saving is better, the emission is smaller, and the quality is better; the domestic advanced automatic digital coal distribution and water distribution are adopted. , Roasting system and automatic blanking   system are highly intelligent and mechanized. Practice has proved that the design of "new environmentally friendly rotary energy-saving kiln" is scientific and reasonable, with high brick output,  excellent brick quality, complete specifications, and low labor. Features such as outstanding energy saving and emission reduction, good working environment and strong market competition.

Kiln overview:
 Energy-saving and environmentally friendly assembly rotary tunnel kiln integrates automation, digitization, user-friendliness and systematization, with low investment, high output, less labor, energy  saving and emission reduction. It is a model of domestic brick kilns. It is mainly composed of automatic walking kiln, circular track, circular power supply system, circular billet transport system,                                automatic coal blending, water distribution, strip cutting, billet cutting, roasting system and other auxiliary facilities. The furnace has the following advantages:

Kiln structure

"New environmentally friendly rotary energy-saving kiln" is mainly composed of automatic walking kiln, ring track, ring power supply system, air duct system, ring billet transport system, automatic  billet stacking system, automatic coal distribution, water distribution, cutting, cutting blank, roast System and other ancillary facilities.

 1. Less investment, the total investment is more than 50% less than the tunnel kiln with the same cross section.

 2. Good energy-saving effect, adopt special heat-resistant heat-resistant materials, and make full use of heat energy to reduce heat loss.

 3. Using mechanized, digital, and intelligent operation, less labor, lower labor costs, and a better working environment. Using intelligent roasting system, the kiln furnace partition temperature is uniform, the quality of the finished brick is good, and the fired brick has no overfire brick and underfire brick.

 4. The steel structure of the kiln is compact, the quality of the internal insulation material is light, the structure is reasonable, the design is scientific, the maintenance is low, and the maintenance cost is low.

 5. The construction period is short, and it takes less than three months to go from construction to production.



1.Is your company a factory or trading company?
   A: We are the professional clay brick making machine and clay brick kiln factory in Jiangsu, Nantong city  for more than 50 years,with CE&ISO approved
2.What size of your rotary tunnel kiln have?
A: 8.8*108,9.38*128,9.88*130,10.38*140,12.98*160m

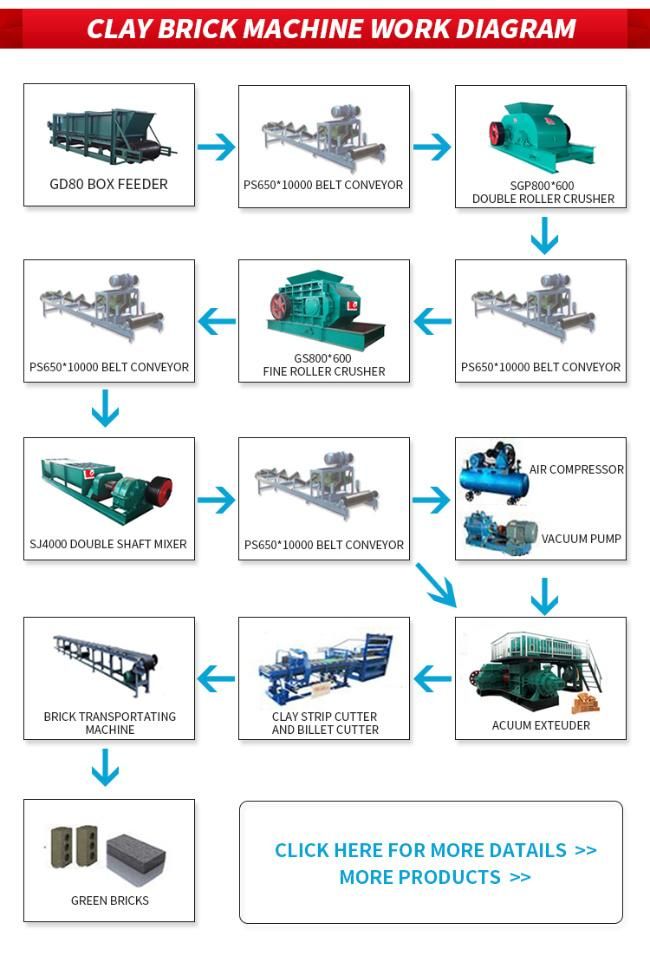

3. If We want purchase the clay bricks making machine,what data needed?
   A: a.the production per day
       b.The raw material of brick, such as clay,shale,soil,mud,earth,fly ash,coal gangue and so on.
       c.The size of bricks you need: L?* W?* H?

         d. Hoffman kiln or Tunnel kiln
( If you are not very clear with technical data of bricks machines, we can recommend for you.)

What's more, we have professional engineers,so customized machines are also available.And Detailed pictures and specifications of bricks machines and videos of products line can be offered freely if you need.

Up to now, our machines have been exported to many countries such as India, Bangladesh, Bengal, Uganda, Vietnam, Uzbekistan ect.
