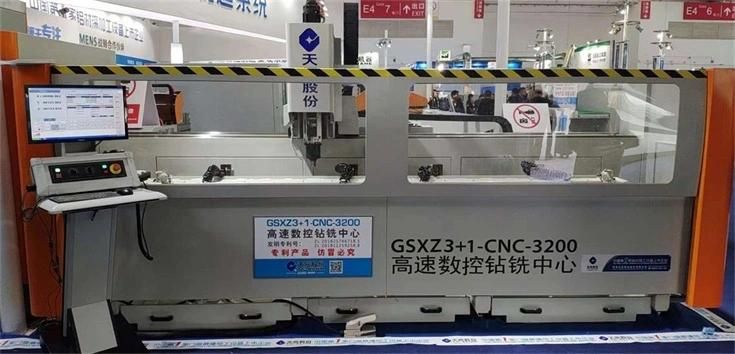

CNC Copy Milling Machine for Aluminum Profile Window Door Automatic Drilling Milling Center
Jinan Tianchen Smart Machine Co., Ltd.- After-sales Service：Overseas Home Installation and Online Service
- Warranty：12 Months
- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：GSXZ3+1-CNC-3200
- Voltage：Customized Value
- Name：Aluminium CNC Drilling and Milling Machine
- Function：Aluminium Profile Drilling and Milling
- Main Feature：Automatic
- X Axis Range：3500mm
- Y Axis Range：450mm
- Z Axis Range：350mm
- X Axis Moving Speed：0-60m,Min
- Y Axis Moving Speed：0-30m,Min
- Z Axis Moving Speed：0-30m,Min
- Material：Aluminum Profile
- Spindle Power：7.5,9kw
- Spindle Max Rev：24000r,Min
- Weight：2500kgs
- Transport Package：Iron Pallet in Container
- Specification：40GPx2
- Trademark：Tianchen
- Origin：Jinan, Shandong, China
- HS Code：8461409000
- Production Capacity：30 Sets Per Month
