• Model NO.：HFB5115A
• Model Number：Hfb5115A
• Power：31.25kw
• Molding Cycle：15-20s
• PLC System：Germany Simens
• Pallet Size：880*680*25mm
• Vibration Frequency：4800rpm
• Power Type：Hydraulic and Automatic
• Weight：6000kg
• Mixer：Js500 Twin Shaft
• Raw Material：Cement, Sand, Fly Ash, Crushed Stone
• Labor：2-3
• MOQ：1 Set
• Brand：Customized or Hongfa
• Delivery Time：25 Days
• Guarantee：1 Year
• Transport Package：Customized
• Specification：7100*1500*3000mm
• Trademark：HONGFA
• Origin：China
• HS Code：84748020
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. HFB5115A Model Number Hfb5115A Power 31.25kw Molding Cycle 15-20s PLC System Germany Simens Pallet Size 880*680*25mm Vibration Frequency 4800rpm Power Type Hydraulic and Automatic Weight 6000kg Mixer Js500 Twin Shaft Raw Material Cement, Sand, Fly Ash, Crushed Stone Labor 2-3 MOQ 1 Set Brand Customized or Hongfa Delivery Time 25 Days Guarantee 1 Year Transport Package Customized Specification 7100*1500*3000mm Trademark HONGFA Origin China HS Code 84748020 Production Capacity 1000 Sets/Year

Product Description

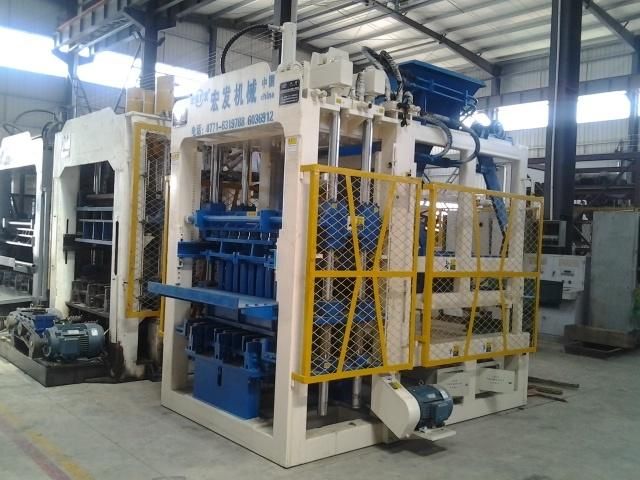

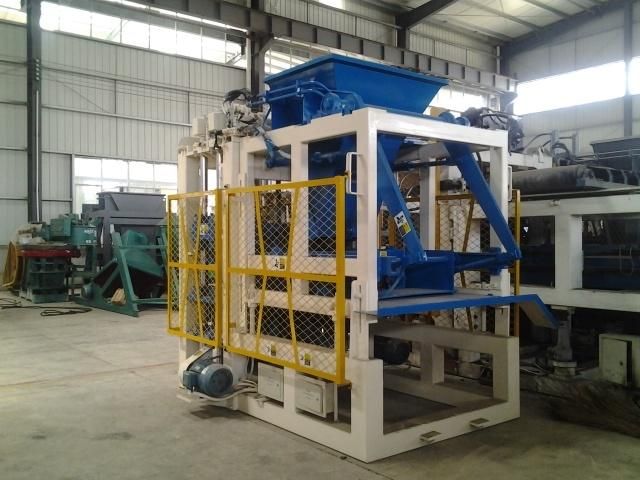

Machine For Brick Block Concrete Hollow Block Making Machine PriceBrief intruduction:
QT6-15 brick making machine only needs 2-3 workers in production process, it can save labors with high efficiency.
Main Features of QT6-15Brick Making Machine:


1. This brick machine has a heavy-duty machine frame, which uses high-intensity steel and heat treatment, it is wear resistant.
2. It uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time;
3. Low frequency vibration in feeding materials, high frequency vibration in molding. It offers optimal structure of vibrating shafts, which assure the vibration is distributed uniformly in the range of the vibrating table. So it improves the uniformity and stability of blocks, produces better quality blocks than before when using the same ratio of raw material, and reduces the noise greatly.
4. This automatic brick making machine uses Germany Siemens PLC control system and Siemens Touch Screen.
5. It offers a dynamic display of the system's status, automatic trouble shooting and warning notice.
6. The mold frame is made with inlaid structure, and the mold is processed via the procedures of carburizing, nitriding and quenching which guarantee that the strength, its service life is more that 120,000 times production.





Technical parameter:

Mainframe Dimension	7160x2000x2800mm
Machine weight	7 Tons
Vibration	Table vibration
Pallet size	880x680x25mm
Power	34KW
Exciting force	60KN
Rating pressure	20MPa
Vibration frequency	4000-5000r/min
Cycle time	15-20 seconds
Applicable Products	Concrete building blocks, decorative concrete block, masonry blocks, solid concrete blocks, construction blocks,  pavement, concrete cinder blocks, building retaining walls, interlocking concrete blocks, etc.

Productivity:

Items	Size(L * W * H) (mm)	Pcs./mould	Pcs./hour	Pcs./8hours	Molding Cycle(s)
Hollow block	390x190x190	6	1,080-1,440	8,700-11,500	15-20
Porous block	240x115x90	15	2,700-3,600	21,600-28,800	15-20
Solid block	240x115x53	32	6,800-7,600	54,300-61,400	15-17
Paving brick	220x110x50	15	2,200-2,700	17,300-21,600	20-25
