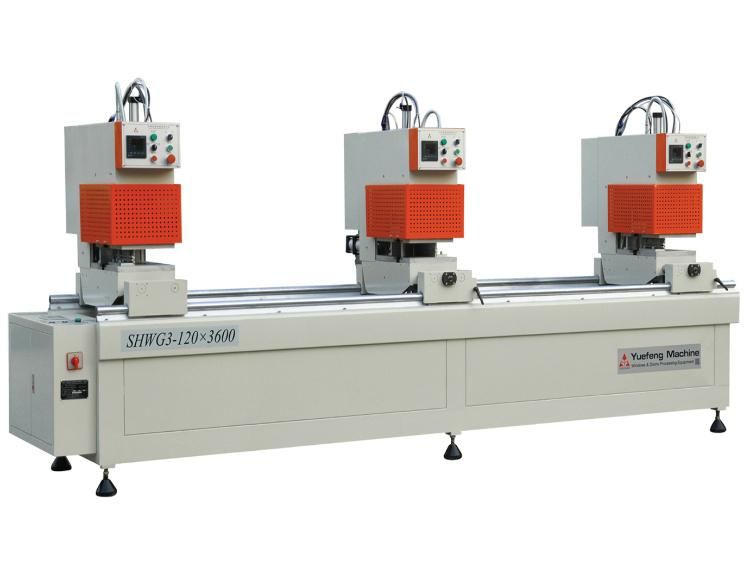

3 Head Welding Machine for PVC Door Window Making Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Shwg3-120*3600

Base Info

  • Model NO.：SHWG3-120*3600
  • Input Voltage：380,220V 50Hz
  • Input Power：3.5kw
  • Air Pressure：0.6~0.8MPa
  • Air Consumption：260L,Min
  • Welding Length：400~3600mm
  • Welding Height：20~120mm
  • Overall Dimension：4300*990*1700mm
  • Transport Package：Wooden Box
  • Specification：4300*990*1700mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. SHWG3-120*3600 Input Voltage 380/220V 50Hz Input Power 3.5kw Air Pressure 0.6~0.8MPa Air Consumption 260L/Min Welding Length 400~3600mm Welding Height 20~120mm Overall Dimension 4300*990*1700mm Transport Package Wooden Box Specification 4300*990*1700mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

3 Head Welding Machine for PVC Door Window Making Machine3 Head Welding Machine for PVC Door Window Making Machine
3 Head Welding Machine for PVC Door Window Making Machine
Feature
1.The machine suitable for colored, co-extrusion and sprayed PVC profiles, the welding slag immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm.
2.It adopts JDB solid oilless bearing kinematic pair, LM linear guide kinematic pair and Mitsubishi PLC control system result high accuracy and efficiency.

ModelSHWG3-120×3600
Input voltage 380/220V 50Hz
Input power 3.5Kw
Air pressure 0.6~0.8MPa
Air consumption200L/min
Welding length400~3600mm
Welding height 20~120mm
Overall dimension4300×990×1700mm



3 Head Welding Machine for PVC Door Window Making Machine
3 Head Welding Machine for PVC Door Window Making Machine
3 Head Welding Machine for PVC Door Window Making Machine
3 Head Welding Machine for PVC Door Window Making Machine3 Head Welding Machine for PVC Door Window Making MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
