• Model NO.：QT6-15
• Product：Blocks, Paver Blocks, Curbstone
• Brick Raw Material：Cement, Sand, Stone
• Automation：Automatic
• Condition：New
• Vibration Form：Table and Mould
• Control：PLC
• Cycle Time：15s
• Machine Type：Block Making Machine
• Transport Package：Nude Packing
• Specification：ISO9001, CE, SGS
• Trademark：HENGDA
• Origin：Jiangsu, China
• HS Code：84748090
• Production Capacity：300sets,Year

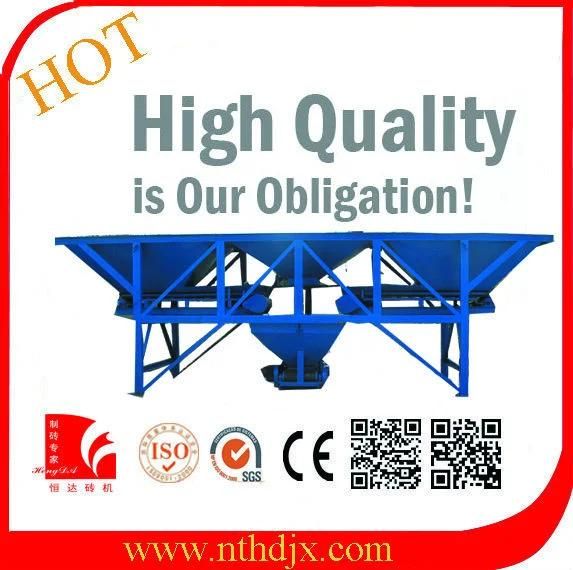

Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

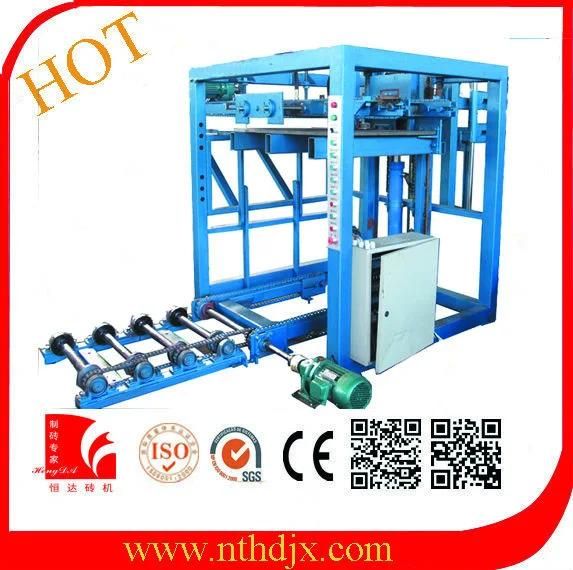

Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.

Block samples

 Our block machine , with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products

   A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.

    B. Visualization touch screen, with easy operation;

   2. Use Frequency Conversional Control Technology, which controls the block making:

    A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould,    protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

    B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

    C. Power saving: 30%;

3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

    A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

    B. Guarantee production stability;

4. 360° Multi-Shaft Rotating and Compulsory Feeding:

    A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed

    B. This uniform feeding is applicable for different kinds of raw materials and moulds;

5. Use heat treatment on moulds and main parts of the machines:

    A. Heavy duty machine structure and wear resistant moulds;

    B. The hardness reaches up to HRC 52-58;

    C. Greatly improves the using lifetime of the machine by 50%.
