Aluminum Profiles Automatic Drilling and Milling Machine

JINAN YBKE MACHINERY CO., LTD.
  • After-sales Service：on-Site and Online Technical Support
  • Warranty：2 Years for Main Component
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC

Base Info

  • Model NO.：ZX3Z-CNC-800
  • Voltage：380V
  • X-Axis Travel：800mm
  • Y-Axis Travel：300mm
  • Z-Axis Travel：200mm
  • Main Axis Rev：18000r,Min
  • Main Axis Power：3kw
  • X-Axis Speed：0-60m,Min
  • Y-Axis Speed：0-48m,Min
  • Z-Axis Speed：0-20m,Min
  • X-Axis Locating Accuracy：+-0.05mm
  • Y-Axis Locating Accuracy：+-0.05mm
  • Z-Axis Locating Accuracy：+-0.02mm
  • Repeat Locating Accuracy：+-0.02mm
  • Roughness：Ra 6.3um
  • Total Power：4kw
  • Dimension：1500*1420*1750mm
  • Transport Package：Stretch Films and Plywood Case
  • Specification：X-axis travel 800mm
  • Trademark：YBKE
  • Origin：China
  • Production Capacity：20sets,Month

Description

Overview Detailed PhotosAluminum Profiles Automatic Drilling and Milling MachineAluminum Profiles Automatic Drilling and Milling MachineAluminum Profiles Automatic Drilling and Milling MachineAluminum Profiles Automatic Drilling and Milling Machine



Product Description Company Profile

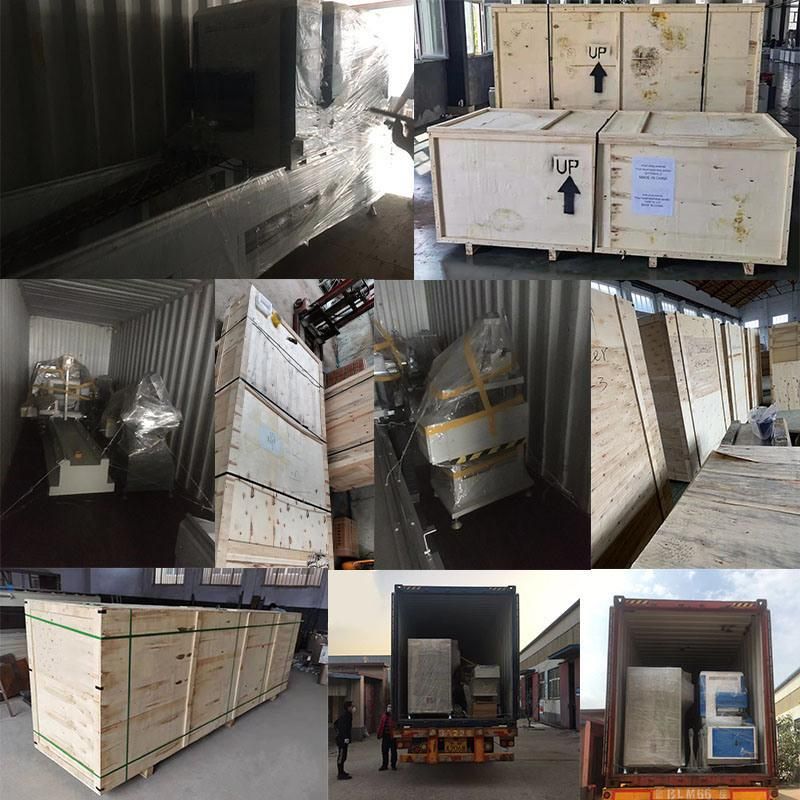

Packaging & Shipping

If you buy a few machines that need to be loaded in one or two containers, we pack this machine with several layers of stretch films and one layer of plastic film. If the order is not enough to be loaded in a container, we packed it in plywood case and send it to QINGDAO port to ship.
About the delivery time, it usually can be delivered in 15 working days.

Aluminum Profiles Automatic Drilling and Milling Machine

After Sales Service

Exhibition

Aluminum Profiles Automatic Drilling and Milling Machine

Customers Visiting

Aluminum Profiles Automatic Drilling and Milling Machine

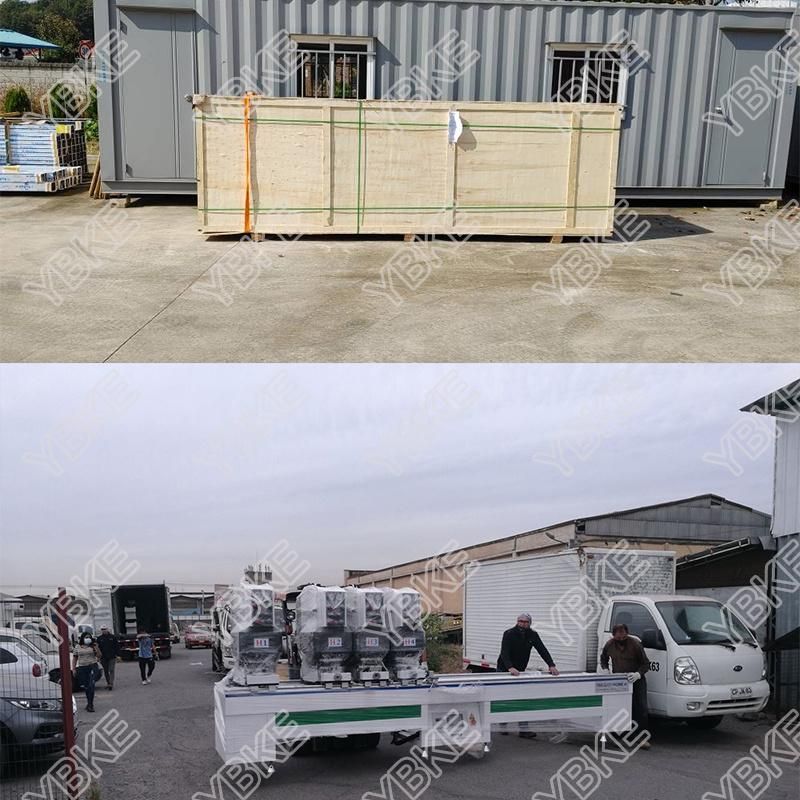

Customers received machines

Aluminum Profiles Automatic Drilling and Milling Machine

Our Merits

1).We have machining center, parts and components are produced by ourselves to ensure the precision.
2).Before the machine leaves our factory, we will only ship the machines after debugging and strictly test.
3).Imported electric components, extend the service life.
4).Main electric component is with 2 years warranty.
5).The after-sale service shall be lifelong responsibility system.
