• Model NO.：XQY2000
• Product Name：Xqy2000 Hydraulic Interlock Paver Brick Machine
• Cycle Time：15-20s
• Raw Materials：Sand Cement and Crushed Stone etc
• Color：Grey or White or Customized
• Sale Service：Engineer Available to Abroad
• Block Strength：30MPa
• Good Qualitty：Yes
• Good Price：Yes
• Price：Negotiable
• Weight：3t
• Working Size：600X400X200mm
• Machine Power：8.5kw
• Vibration Force：90kn
• Transport Package：Standard Seaworthy Packing
• Specification：3500x1000x480mm
• Trademark：Xixing
• Origin：China
• HS Code：8474809090
• Production Capacity：3600 Blocks,Shift

Basic Info.

Model NO. XQY2000 Product Name Xqy2000 Hydraulic Interlock Paver Brick Machine Cycle Time 15-20s Raw Materials Sand Cement and Crushed Stone etc Color Grey or White or Customized Sale Service Engineer Available to Abroad Block Strength 30MPa Good Qualitty Yes Good Price Yes Price Negotiable Weight 3t Working Size 600X400X200mm Machine Power 8.5kw Vibration Force 90kn Transport Package Standard Seaworthy Packing Specification 3500x1000x480mm Trademark Xixing Origin China HS Code 8474809090 Production Capacity 3600 Blocks/Shift

Product Description

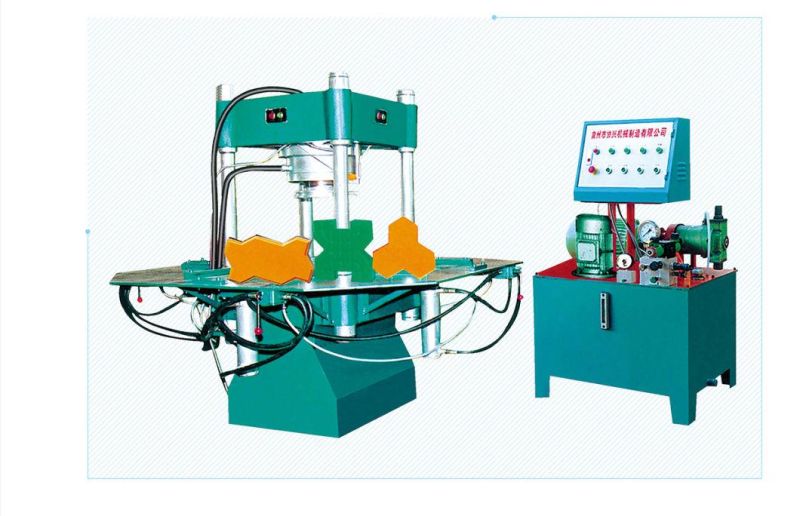

Hydraulic Press/ Interlock Paver Block Brick Machine Price XQY2000

Machine features:

1. This model of machine is a full new type machine and particularly designed by our company for honeycomb type block, the rapid and equal feed is achieved by using the semi-closed reticular feeding unit, so that the product reaches the high strength. This machine is particularly suited the production of honeycomb type block.

2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation effect of the machine.

3. Interlock between the feeding system and the magazine, the magazine and the door are open/close automatic during feed to ensure feed quantity, the operation is reliable and suited to long term running.

4. The vertical direction vibration is carried out by hydraulic motor drive vibration unit; the steeples velocity is down by the electric-hydraulic proportional control technology to ensure the production requirement of difference material.

5. Multi use; strong performance; the many kind of products with difference form and size can be made when use the difference mold , such as wall block, honeycomb type block, road block and slope block.

2. Technical parameters

 Rated Pressure: 150T

Working Size ( L×W×H mm):600x400x200

 Molding Periodicity (differs from the different products):15-30 seconds

Machine Power:8.5KW

 Machine Weight: 3t

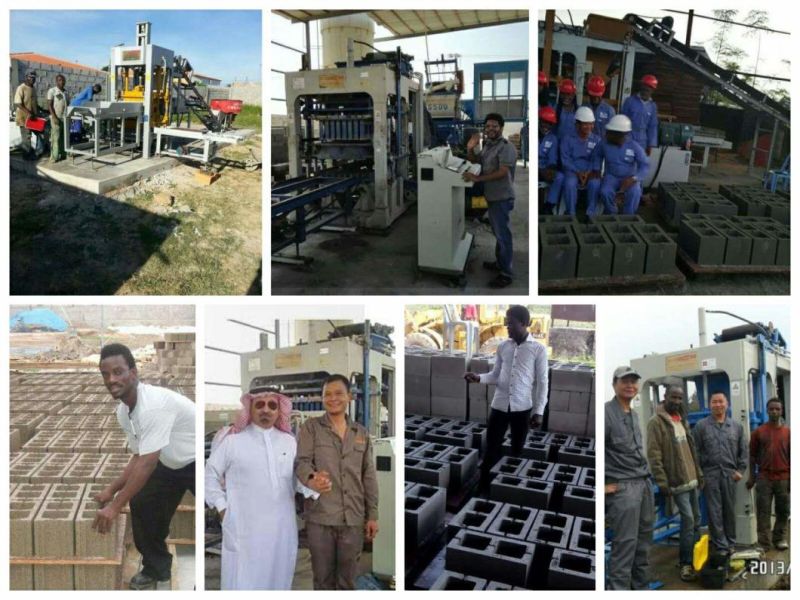

3.Customer producin bricks blocks showing

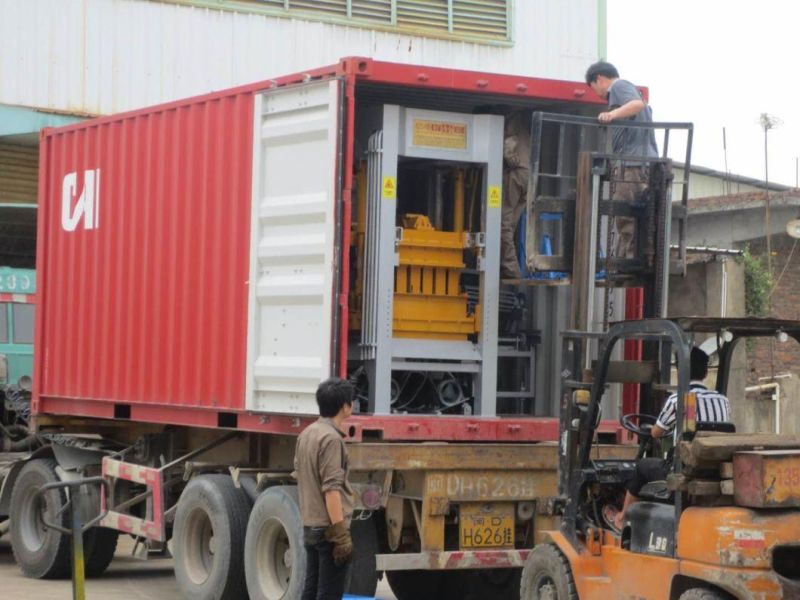

4.Machines delivery to customers


FAQ

 1.Can you make brick block mould design for us?

Yes,we have professional team with rich experience of brick block design by CAD software.you only need to tell us brick block size design you want to produce or send us drawing,so that we can customize according to your request.

2.Can you also offer block brick machines for us?

Yes,we can offer semi auto or full automatic of different models of different capacity machines to meet different request of customers.

 3.Could your engineer teach and train our worker and stay in our factory for long time?

Yes,we have very large engineer installation team,they can train and teach your worker to operate brick block machine,but you should pay them salary,round tickets and room and dinner and visa charges etc.

4.How about your machine quality, we are worry about the quality?

We are more than 30 years manufacturing experience of different kinds of blocks bricks machines.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our brick machine is running well in more than 30 countries
