Aluminium Window Door Machine Double Head CNC Cutting Saw
Jinan Tianchen Smart Machine Co., Ltd.- Condition:New
- Certification:ISO, CE
- CNC or Not:CNC
- Voltage:380V
- Application:Window Door Making Machine
- Processing Material:Aluminium Profile
Base Info
- Model NO.:LJZ2SA-500x5000
- Minimum Finished Length:450mm
- Control PLC:Schneider
- Type:CNC Automatic
- Cutting Angle:45 Degree and 90 Degree
- Repeat Locating Length Tolerance:+-0.2mm
- Cutting Angle Tolerance:+-5′
- Transport Package:Container
- Specification:40GPx1
- Trademark:TIANCHEN
- Origin:China
- HS Code:8461409000
- Production Capacity:2000sets,Year
Description
Basic Info.
Model NO. LJZ2SA-500x5000 Minimum Finished Length 450mm Control PLC Schneider Type CNC Automatic Cutting Angle 45 Degree and 90 Degree Repeat Locating Length Tolerance +-0.2mm Cutting Angle Tolerance +-5′ Transport Package Container Specification 40GPx1 Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/YearProduct Description

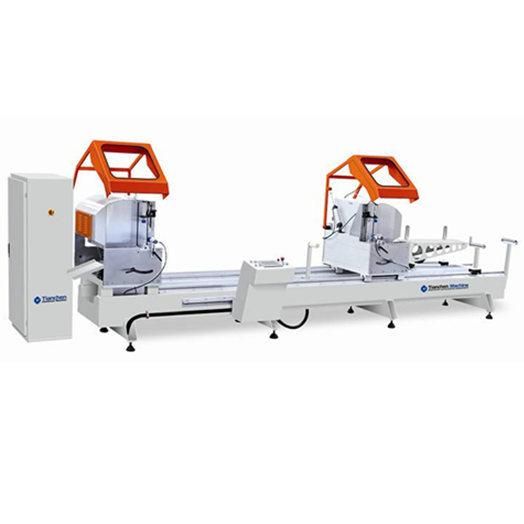

Double head precision cutting sawModel: LJZ2SA-500X5000
Features & Advantages
- Applicable for cutting profile of aluminum windows and doors and curtain walls
- Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
- Equipped with cooling devices, high precision cutting saw rotates stably and cutting surface smooth.
- The movable cutting head is driven by imported servo driver, adopts gear rack transmission, full close loop control, with high precision positioning.
- The movable cutting head adopts high precision linear guide rail pair, operating stable and reliable.
- The follow-up supporter is space saving
Technical Parameters
Cutting Motor Power | 2X3.0KW rotary speed:2800r/min |
Cutting Length | 450-5000mm |
Cutting angle | 45°, 90° |
Cutting Range(W*H) | 90°:150x210mm |
45°: 150x150mm | |
Cutting Speed: Stepless speed regulation | 0-3m/min |
Blade Specification | φ500xφ30x4.4x3.8 |
Repeat Locating length tolerance | ±0.2mm |
Cutting Angle tolerance | ±5' |
Contour dimension | 7700x1700x1900mm |
Weight | about 2500KG |
Machine Description

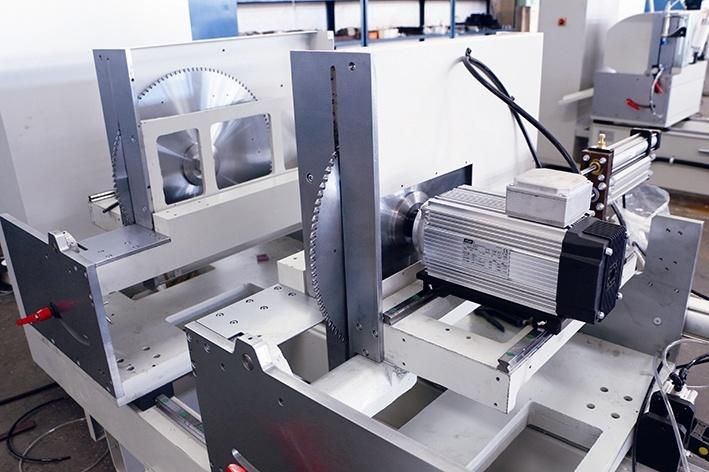

Imported cutting motor directly connects with the sawing blade

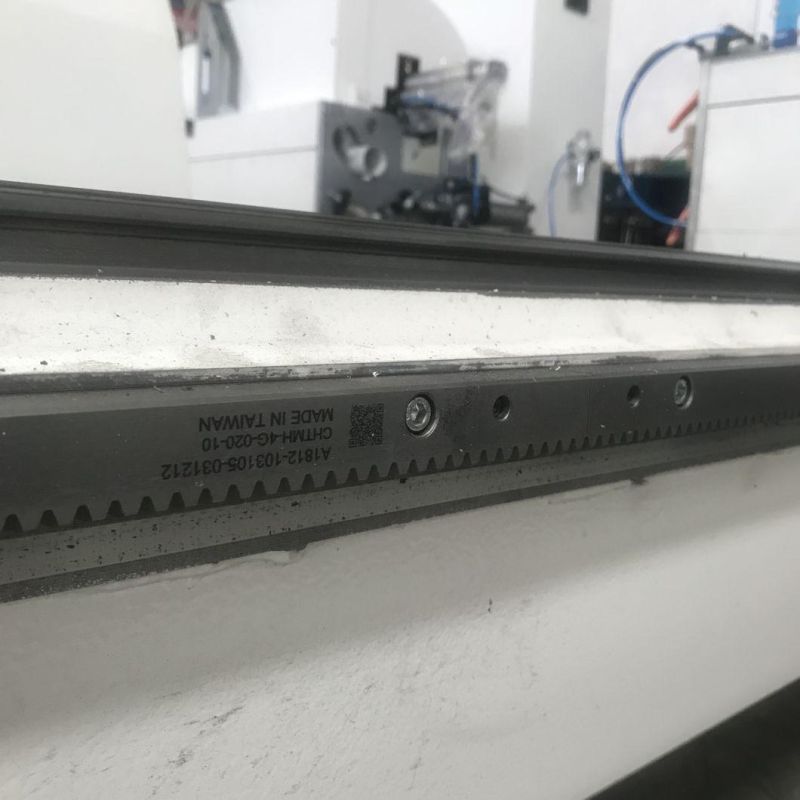

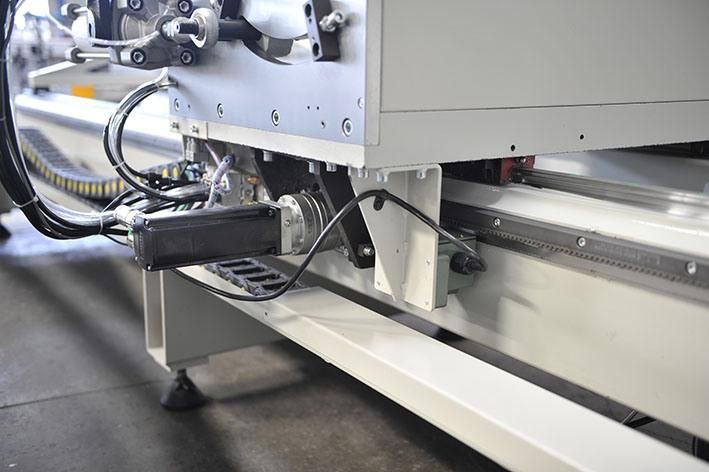

Right head feeding driven by imported servo device, gear and rack transmission, full close-loop control, with high accuracy

Imported linear guiding pair ensures steady processing accuracy

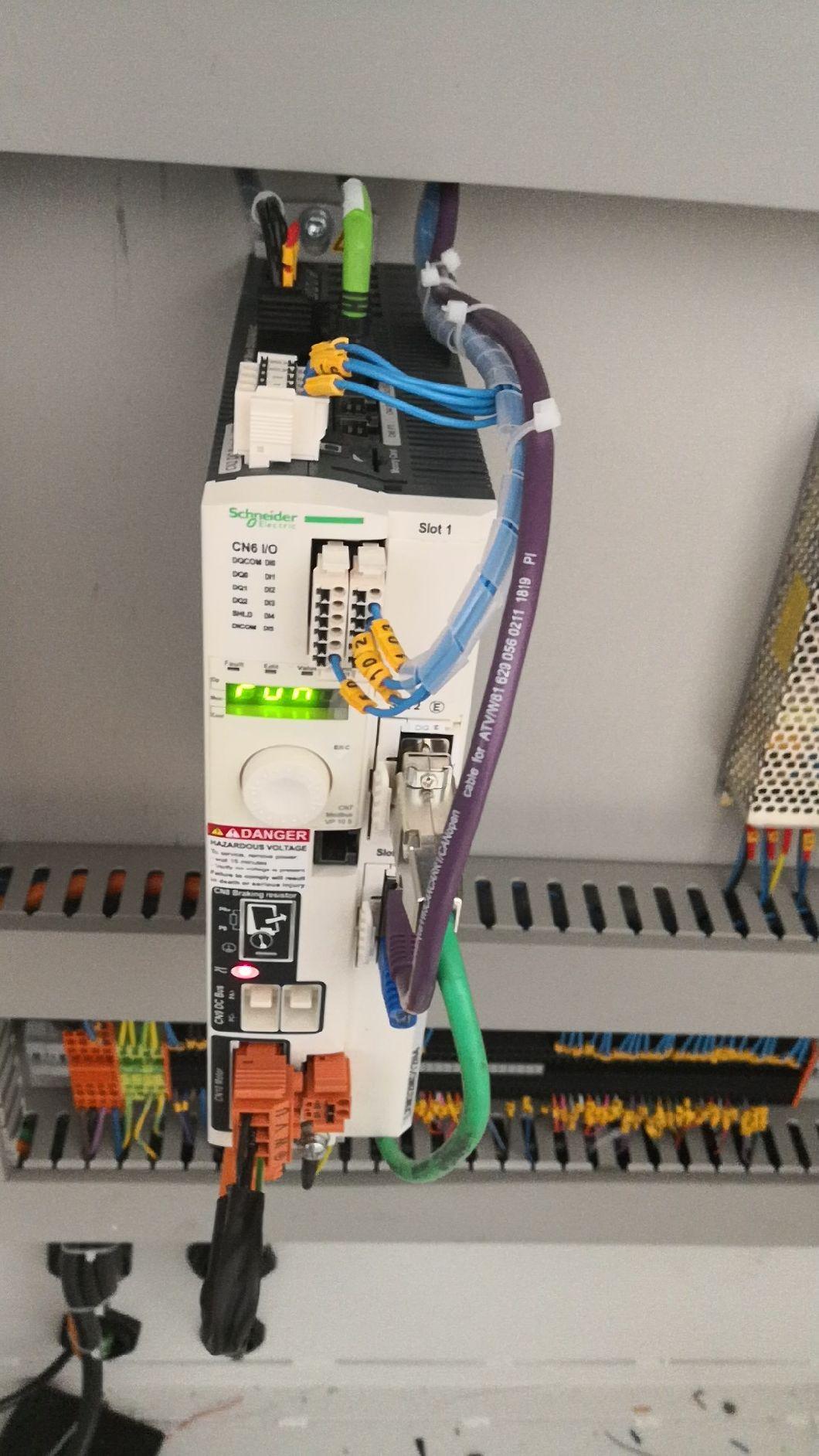

Adopts CNC control, imported PLC Schneider from France, can achieve various profiles auto cutting off
