Double Layer Roll Forming Machine Rollformers Metal Roofing Sheet
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Warranty：2 Years
- Tile Type：Colored Steel
- Certification：CE, ISO, ISO9001: 2000, CE, SGS
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
Base Info
- Model NO.：double layer machine
- Transmission Method：Hydraulic Pressure
- Type：Double Layer Machine
- Effective：Easy Operation
- Motor Power：4kw
- Forming Station：13 Stations
- Medium Plate Thickness：18mm
- Main Frame：300h
- Diameter of Roller：75mm
- PLC：Delta Brand
- Method：Double Layer Machine
- Transport Package：Main Body Nude in Container
- Specification：CE, SGS
- Trademark：DIXIN
- Origin：Cangzhou City, Hebei Province, China
- HS Code：84552210
- Production Capacity：15sets,Per Month
Description
Automatic courrugated roofing&wall roll forming machine1 Forming size Length Width Height Ordinary tile 5000-5500mm 1400-2300mm 1300-1500mm Glazed tile 5000-7500mm 1400-1500mm 1300-1500mm 2 Raw material Suitable material Coloerd steel coil,Galvanized coil,Aluminum coil Feeding width 1000mm(Can be customized) Thickness 0.3-0.8mm 3 Effective width Ordinary 740-1250mm Can be customized 4 Rollers Material 45#Steel plated with chrome Rows 11rows(Determined by the required equipment) 5 Shafts Material 45#Steel Diameter Φ70mm 6 Cutting blade Hydraulic cutting,Cr12 with quenching treatment 7 Capacity 8000-40000mm/min 8 Weight 3-6T(Determined by the required equipment) 9 Control system PLC control system with transducer inside 10 Machine body H-shape steel:300-450mm 11 Middle plate 14-20mm(Determined by the required equipment) 12 Chain 1-2Inches 13 Shear blade heat treatment HRC58-60 degree 14 Length precision ±2mm 15 Power of hydraulic station 3kw(Determined by the required equipment)
2. Work flow

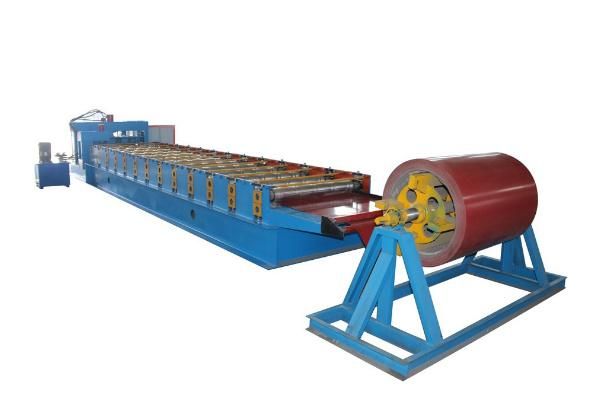

Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5. Warranty
24 months, and lifelong technical support service
6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
This is one of our main products, hotselling used in UK, and has been certificated by SGS, CE.
Hope further contact with you.
The advantages of the double deck roll forming machine
1. High efficiency
2. Lower cost
3. Long life time: 30years
4. Low energy consumption
5. PLC computer control
6. No noise, no shake
If you want to know more infomation, contact to Alice
2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5. Warranty
24 months, and lifelong technical support service
6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
This is one of our main products, hotselling used in UK, and has been certificated by SGS, CE.
Hope further contact with you.
| Advantage of our roll forming machine machine |
| High quality |
| Lower cost |
| Durableness |
| High efficiency |
| Reliable working |
| Low failure rate |
| Low energy consumption |
| Trouble free after sales service |
The advantages of the double deck roll forming machine
1. High efficiency
2. Lower cost
3. Long life time: 30years
4. Low energy consumption
5. PLC computer control
6. No noise, no shake
If you want to know more infomation, contact to Alice
