• Model NO.：ZN 1000C
• Cycle Time：15-25 Seconds
• Motors Power：48kw
• Transport Package：Standard
• Specification：CE & ISO9001
• Trademark：QGM
• Origin：China
• Production Capacity：Hollow Block 400*200*200mm: 12, 000 PCS

Gross weight

9.0 T (without face mix device)

12T (with face mix device)

Total power

39.85kw

Raw materials

Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste.

Applicable products

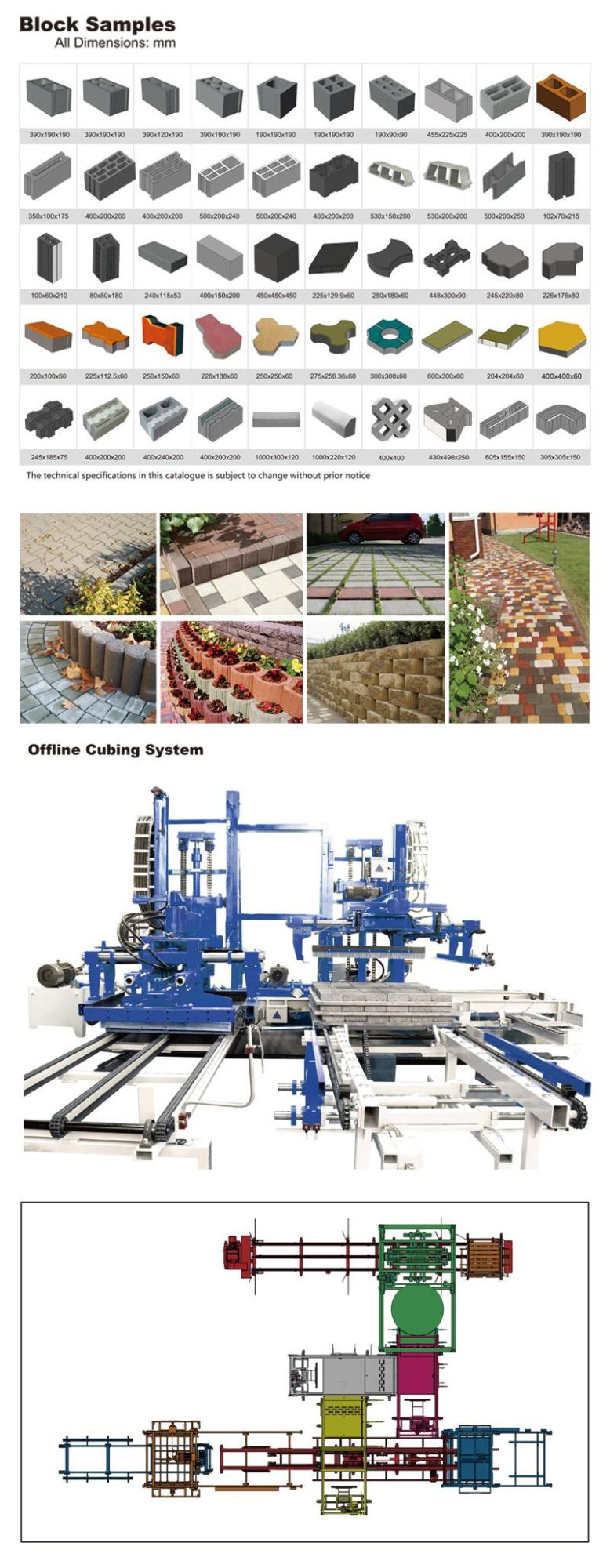

Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied fields

Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc.

Five advantages

Vibration System
The vibration table consists with a dynamic table and static table. When vibration begins,dynamic table vibrate,static table remain static. The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products. Vibration table using HARDOX steel. Vibration mode: using the vibration table vibration + top mould vibration; vibration motor installation vibration damping device and air cooling device.

Feeding System
Motor use SEW motors, which control two mixing shafts. The feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel, the location of the bottom plate can be adjusted.The feeding system has a sealing device to prevent leakage. The door of the discharging gate is controlled by the SEW motor.

Hydraulic Station
Hydraulic pumps and hydraulic valves adopt international brands. Tube uses "Flange Connection", convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.

Germany Siemens PLC control system, Siemens touchscreen, Germany
Easy operation,low failure ratio, machine running stability and high reliability. Use the most-advanced industrial internet technology, realize remote troubleshooting & maintenance. PLC and touchscreen use the PROFINET internet together, convenient for system diagnosis and WEB expansion. Achieve problem diagnosis and alarm system constantly, convenient for machine maintenance and troubleshooting. PLC running data for permanent preservation.

Frequency conversional technology & control
Reduce the motor starting current and soft start function control, prolonging the life of the motor. The main vibration adopt low-frequency standby, high-frequency operation, improving the speed of operation and product quality. Reduce mechanical accessory and motor damage, and prolong the life of the motor and mechanical.The frequency converter saves about 20%-40% more power than the traditional converter.





Our Services


QGM Quangong Machinery, which was founded in 1979, is the leading manufacturer of concrete machinery and plant. With quality and service,  QGM Machinery is not only distributed and found in use all around China but also in more than 120 countries and areas.
