Building Material Making Machinery

Home > Product > Tile Making Machine

Corrugated Metal Sheet Aluminum Glazed Tile Roof Making Machine

Henan Wadley CNC Machinery Co., Ltd.
  • After-sales Service：Available
  • Warranty：1year
  • Tile Type：Colored Steel
  • Certification：CE
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：WD-25
  • Usage：Roof, Wall, Floor
  • Transmission Method：Electric
  • Steel Cutting Type：Hydraulic Cutting
  • Lanugage System：Chinese& English
  • Rollers：up Layer 13rows Down Layer 18rows
  • Material of Mold：Cr12
  • Control System：PLC Control with Touch Screen
  • Transport Package：Film
  • Specification：9.2m*1.6m*1.4m
  • Trademark：wdl
  • Origin：China
  • HS Code：84595900
  • Production Capacity：50sets,Month

Description

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1

Parameters:

Main Parameters of metal wall siding making machine

1

Suitable to process

Colored Steel plate, galvanized board, aluminum plate

2

Control system

PLC control

3

Productivity

15-20m/min

4

Width of the raw material

1250mm

5

Thickness of the plate

0.3-0.6mm

6

Rollers

Up layer:13 rows

Down layer:18 rows

7

Diameter of the rollers

70mm

8

Rolling galvanization thickness

0.05mm

9

Material of the cutting blade

Cr12

10

Dimension

9.2m*1.6m*1.4m

11

Weight

About 13.2T

12

Voltage

380V 50Hz 3phases

13

Power

5+4kw

5.Detail images:

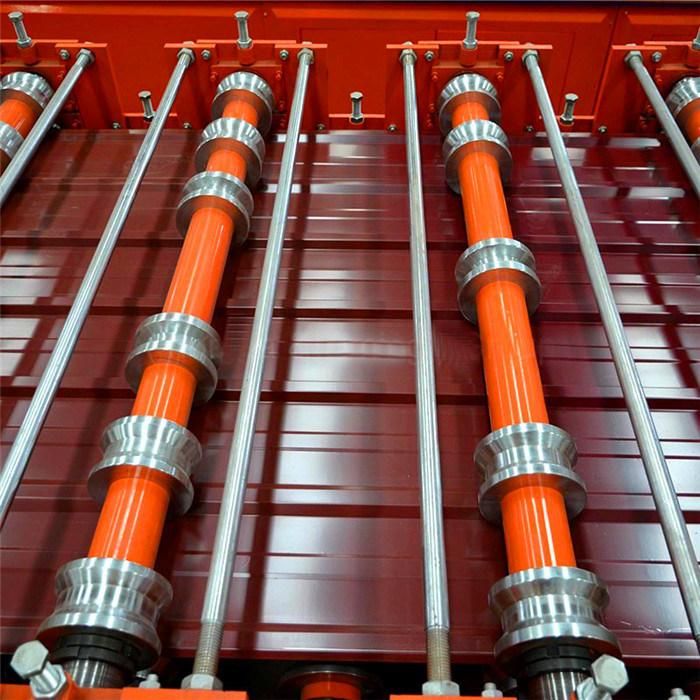

Metal Wall Siding Making Machine, Roof Wall Panel Roll Forming Machine

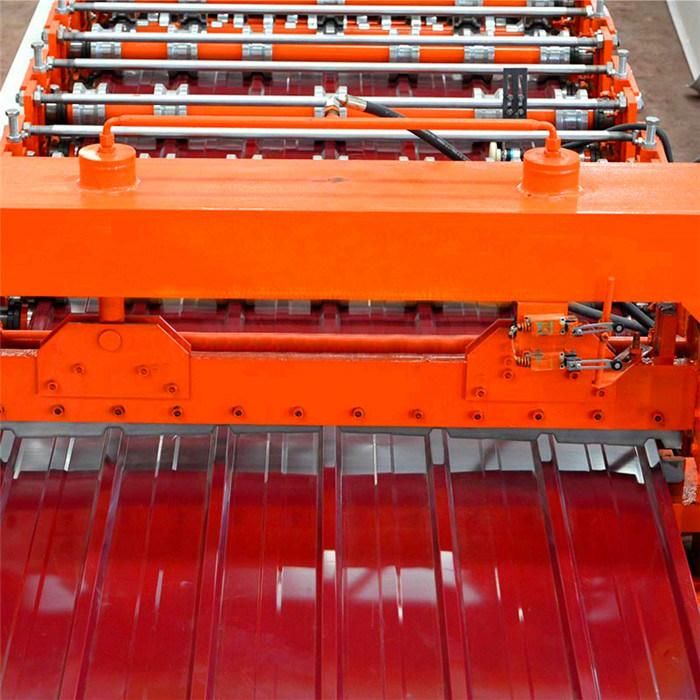

Metal Wall Siding Making Machine, Roof Wall Panel Roll Forming Machine

Metal Wall Siding Making Machine, Roof Wall Panel Roll Forming Machine6.Packing&delivery:
Metal Wall Siding Making Machine, Roof Wall Panel Roll Forming Machine
7.FAQ:
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
