• Model NO.：ZY-HF50
• Pipe Diameter：15.9-50.8mm
• Pipe Thickness：0.6-2.5mm
• Pipe Shape：Round
• Uncoiler：Double-Head or Single-Head
• Solid State High Frequency：200kw
• Cutting：Flying Saw
• Main Motor：75kw
• Color：as Your Requirement
• Max. Speed：120m,Min
• Transport Package：Rain-Proof Package, Shipping
• Trademark：Zhangyun Machinery
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：10sets,Month

Basic Info.

Model NO. ZY-HF50 Pipe Diameter 15.9-50.8mm Pipe Thickness 0.6-2.5mm Pipe Shape Round Uncoiler Double-Head or Single-Head Solid State High Frequency 200kw Cutting Flying Saw Main Motor 75kw Color as Your Requirement Max. Speed 120m/Min Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

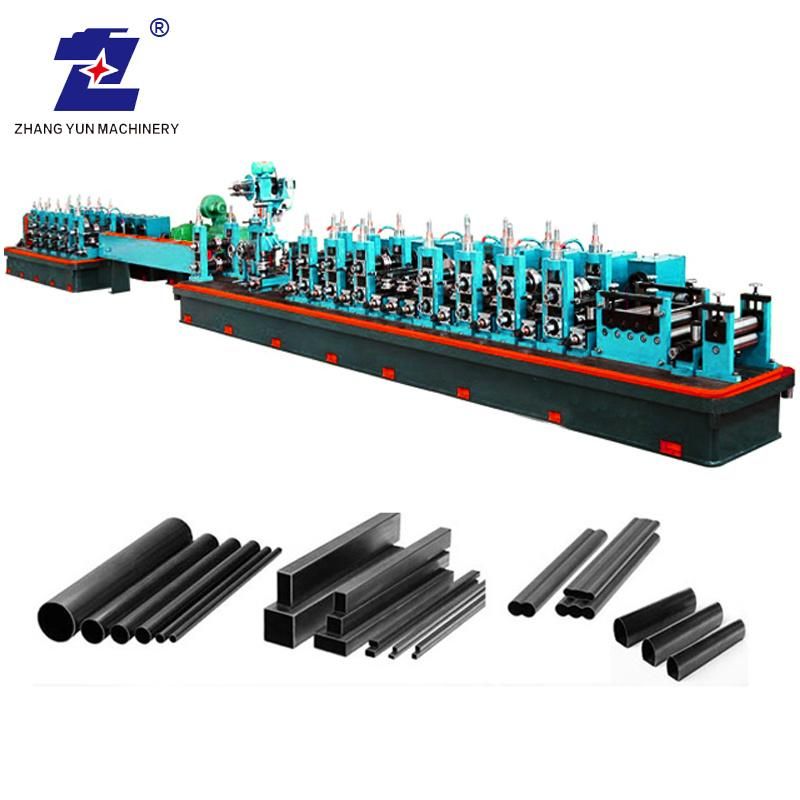

Seam Pipe Automatic Steel Pipe Welding Machine
 Description: High frequency welding is used in the production of steel welded pipes. High frequency welding has larger power supply, and higher welding speed can be achieved for steel pipes with different material, caliber and wall thickness.

Technical Paramters
INCOMING RAW MATERIAL

Raw material	HR,CR carbon steel coil
Tensile Strength	σb≤600Mpa
Yield Strength	σs≤315Mpa
Strip width	35~160mm
O.D of steel coil	Max. Φ2000mm
I.D of steel coil	Φ508mm
Weight of steel coil	Max. 3.5 ton/coil
Round Pipe Wall thickness	0.6 ~2.5mm
Strip condition	Slitting edge
Strip thickness tolerance	Max. ± 5%
Strip width tolerance	± 0.1mm
Strip camber	Max. 5mm/10m
Burr height	≤ (0.05 x T) mm (T-strip thickness)

    MACHINE CAPACITY

Round pipe	Φ15.9 ~ Φ50.8mm *0.6 ~ 2.5mm
Square	Φ12*12 ~ 40*40mm *0.6 ~ 2.0mm
Rectangle	Φ20*10 ~ 60*20mm *0.7 ~ 1.5mm (a*b≤3:1)
Cutting length	4 ~ 12m
Length tolerance	Cold saw ± 2.0mm, Hot Saw ± 3.0mm
welding speed	30~120m/min
Strip storage	Horizontal spiral accumulate loop
Main mill driver motor	SIEMENS AC inverter-AI75Kw/1500rpm*2sets
Solid state high frequency	GGP-200-0.35-HC






FAQ:Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.

Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
     2) We welcome you visit us and test machine by yourself in our factory.
 Q: what is the MOQ?
A: One set

Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.

Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
