• Model NO.：LJZ2S-500*4200
• Voltage：380V
• Power：2*2.2 Kw
• Air Pressure：0.5-0.8 MPa
• Main Motor Rotation Speed：2800r,Min
• Cutting Length：300-4200mm
• Saw Blade Specification：500*30*4.4mm Z=120
• Feeding Speed：0-3m,Min
• Air Consumption：60L,Min
• Cutting Angle：90 Degree and 45 Degree
• Cutting Height：200mm*90 Degree;190mm*45 Degree
• Cutting Width：Max. 135mm
• Dimension：5500*1750*1600mm
• Weight：1700 Kg
• Transport Package：Wrapped in Plastic Film or Wooden Case
• Specification：5500*1750*1600mm
• Trademark：YBKE
• Origin：China
• Production Capacity：30sets,Month

Company Profile

Jinan YBKE Machinery is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008. We focus on research and development, production and sales,as well as export trade. Company has been adhering to the professional, concentration on work attitude, continuous innovation and courage to challenge. Broke through one after another technical problem. Products are exported to more than 50 countries in Europe, North America, Latin America, Middle East and Asian. YBKE is willing to work with you hand in hand to create brilliant.

If you buy a few machines that need to be loaded in one or two containers, we pack this machine with several layers of stretch films and one layer of plastic film. If the order is not enough to be loaded in a container, we packed it in plywood case and send it to QINGDAO port to ship.
About the delivery time, it usually can be delivered in 5 working days.

Our Service

1. On-line technical service:
We provide installation and use instructions and videos, and online app. chat group and telephone guidance.
2. On-site technical service:
We have 8 engineers that can go abroad to provide service. And such as Vietnam, India, Saudi Arabic and United Arab Emirates, we have local engineers provide services.
3. Maintenance:
The whole machine is of 1 year warranty.
In warranty period, We can send you the maintenance parts and components by express.
And the agent price is available for consumable parts anytime.

Exhibition



Customers Visiting

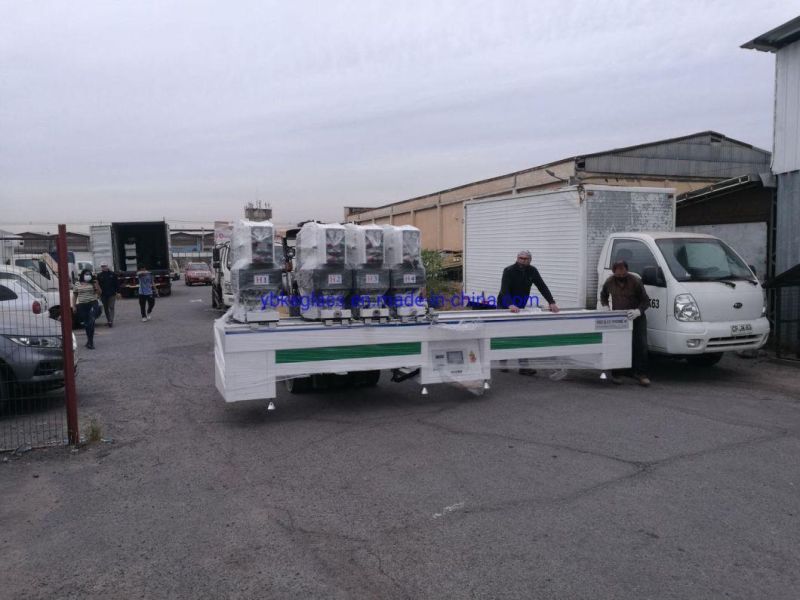

Customers received machines



FAQ

1.Question: How to ensure product quality?
Answer:
1).We have machining center, parts and components are produced by ourselves to ensure the precision.
2).Before the machine leaves our factory, we will only ship the machines after debugging and strictly test.
3).Imported electric components, extend the service life.
4).Main electric component is with 2 years warranty.
5).The after-sale service shall be lifelong responsibility system.
2.What you can do if my machines have problems?
Answer:
1) We can send you free components if your machines are in guarantee time.
2) We can send our engineers to repair your machines.
3.How to install our machines in 2022?
Answer:We record the installation and debugging videos and will send you all the circuit diagrams.
We could establish an after-sale service group of only your company after the machines arrives. After all we have had 1 year online installation and debugging experience, please be rest assured.
4.Question:If our price is higher than another company or factories?
Answer: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
5.What free accessories or discount can I get if order now?
Answer:Message Linda for details!
