Metal Steel Glazed Roofing/Brick/Q Tile Sheet Cold Roll Forming Machine/Roller Former Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • After-sales Service：Yes
  • Warranty：2 Year
  • Tile Type：Colored Steel
  • Certification：CE, ISO9001
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：DX 828
  • Usage：Roof
  • Transmission Method：Machinery
  • Type：Roller Former Machine
  • Power Source：Electric
  • Feature：Automation
  • Advantage：Easy to Maintenance
  • Forging Forming Method：Mold Forging
  • Mode：828 Tile
  • Auto：Fully Automatic
  • Feeding Material：Metal Coil
  • Feeding Width：1000mm
  • Transport Package：Waterproof Package
  • Specification：CE SGS ISO
  • Trademark：DIXIN
  • Origin：China, Hebei
  • HS Code：84552210
  • Production Capacity：50 Sets Per Month

Description

China Machinery Galvanized Metal Glazed Tile/Sheet Metal Roof Roll Forming Machine PriceMain motor power5.5kwDrive1'' single chainType:Wall boardMain shaft dia75mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station13 groupsRaw material0.3-0.8mmCoil width1000mmWorking speed3m--5m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 6500×1500×1200mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementAccording to customer requirementsCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power4KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm

5. Character of main structure:

  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

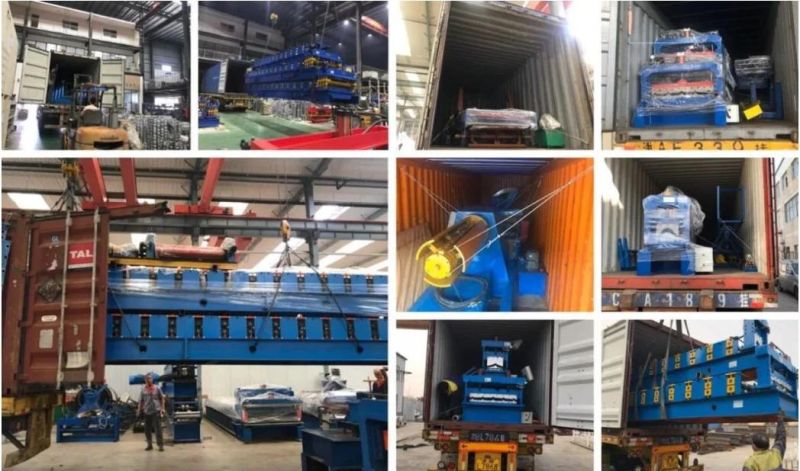

  6. Packing&delivery:
