High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Warranty:2 Years
  • Certification:CE
  • Customized:Customized
  • Condition:New
  • Control Type:Artificial
  • Automatic Grade:Automatic

Base Info

  • Model NO.:ZH40
  • Type:High Speed Metal Stud and Track Roll Forming Machi
  • Speed:40m,Min
  • Motor:7.5kw
  • Servo Motor:1.5kw
  • Rollers:Cr12
  • Cutting:Non Stop
  • Blade:Cr12 MOV
  • Voltage:380V
  • Control System:PLC Xinjie
  • Decoiler:2.5ton
  • Delivery Time:30 Days
  • Transport Package:Full Assmebled
  • Specification:4.5X0.85X1.4
  • Trademark:ZH
  • Origin:Hebei, China
  • HS Code:8455221000
  • Production Capacity:20 Sets Per Month

Description

Basic Info.

Model NO. ZH40 Type High Speed Metal Stud and Track Roll Forming Machi Speed 40m/Min Motor 7.5kw Servo Motor 1.5kw Rollers Cr12 Cutting Non Stop Blade Cr12 MOV Voltage 380V Control System PLC Xinjie Decoiler 2.5ton Delivery Time 30 Days Transport Package Full Assmebled Specification 4.5X0.85X1.4 Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description


High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework.

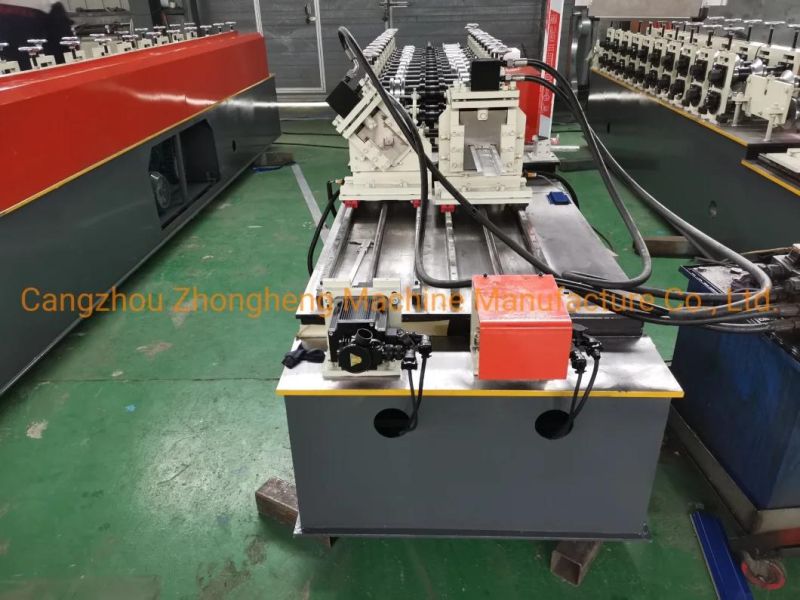

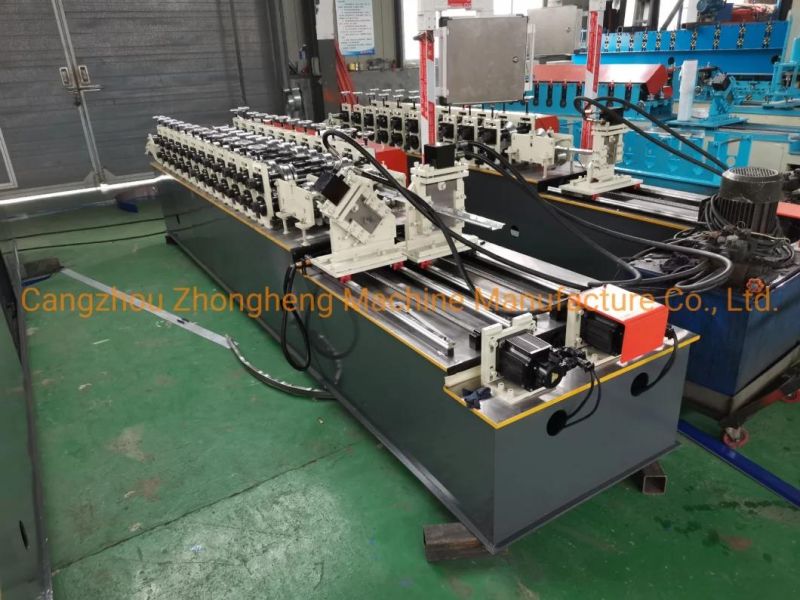

Stud and Track Roll Forming Machine Photos for Your reference
High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery
High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery
High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery
High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

Material


Effective width:About 25 mm
Material Thickness:0.3-0.6mm
Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390Mpa



Work Follow

Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack

Machine Components

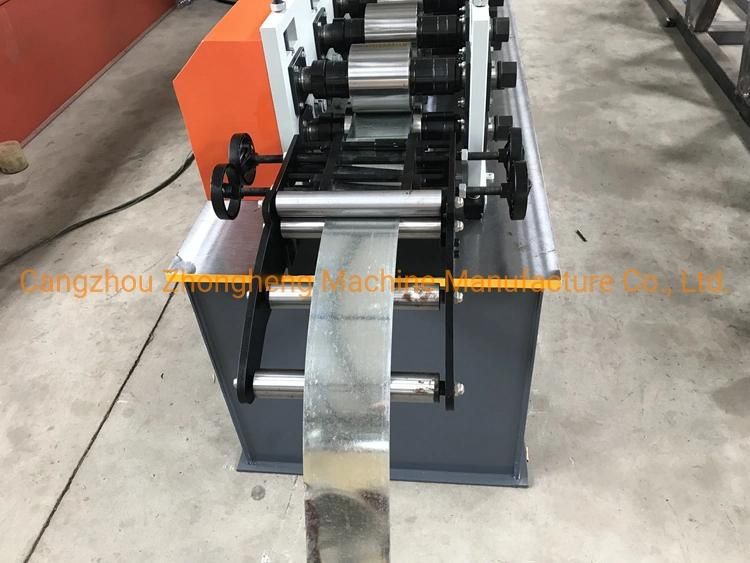

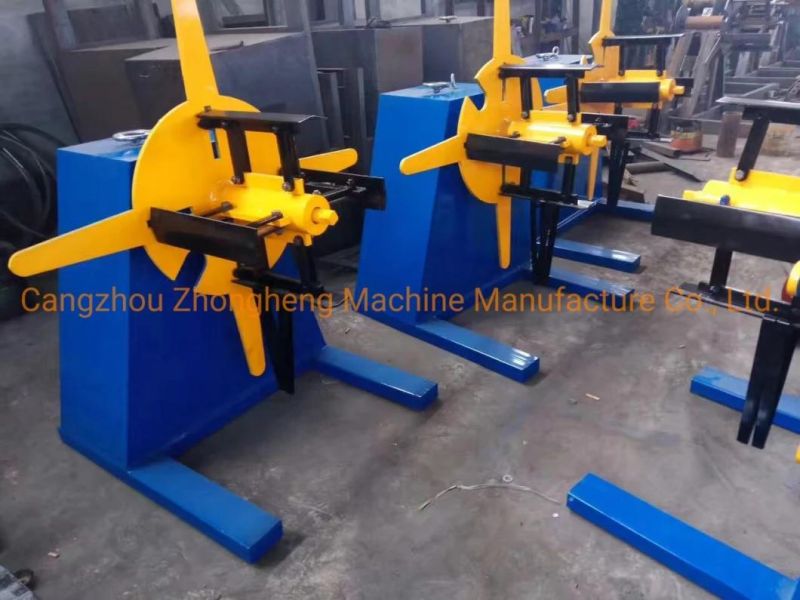

Manual Decoiler  1 Set

Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons*2
High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

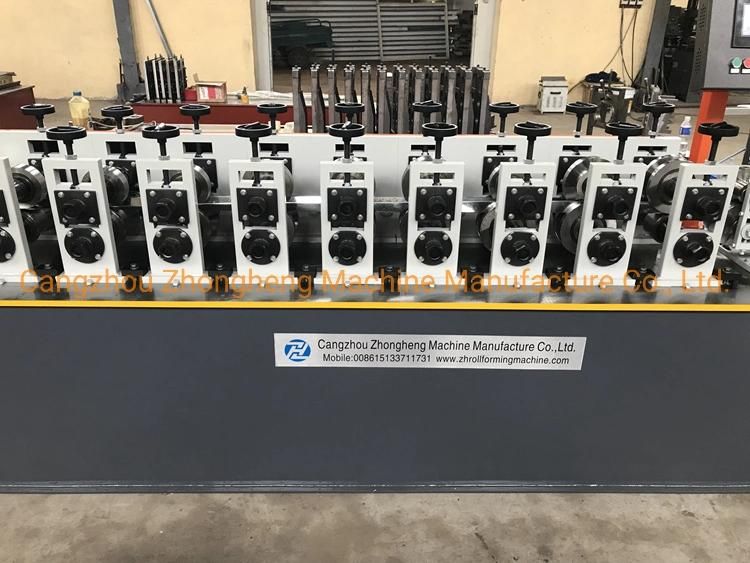

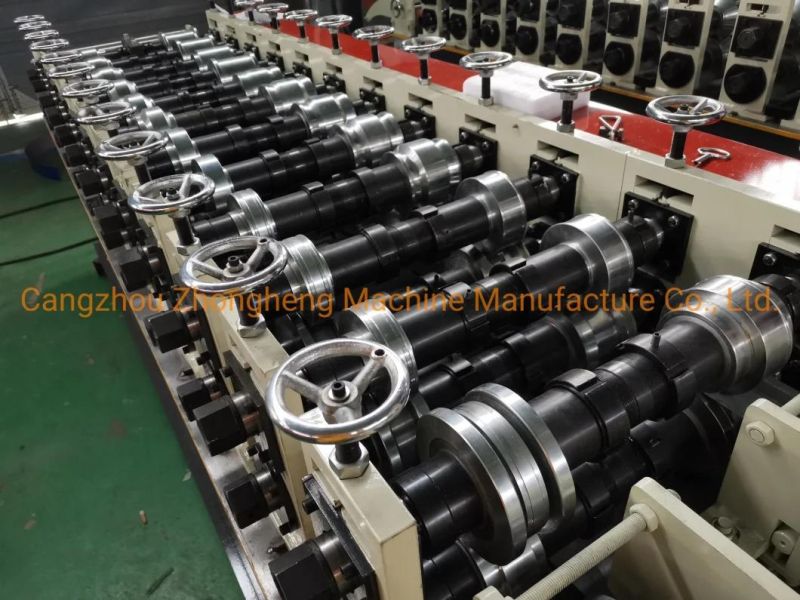

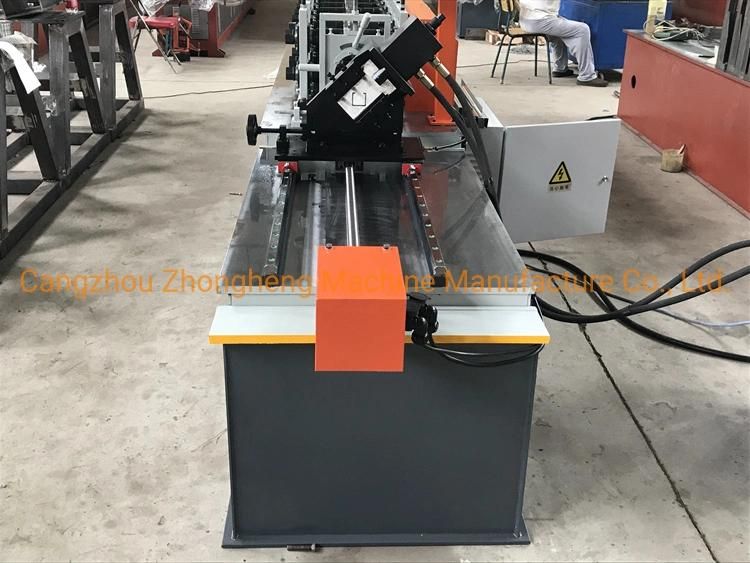

Main Roll forming machine

Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 14-step to form
Main Motor =5.5KW,Frequency speed control
High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

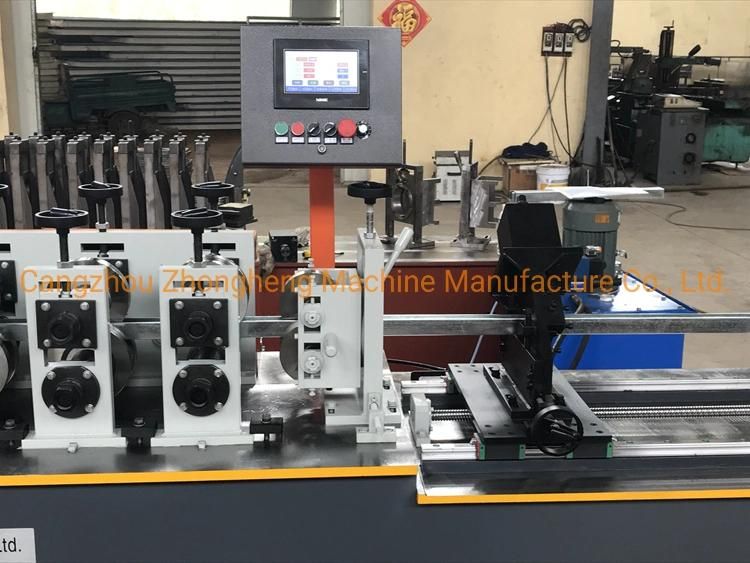

Non stop cutting and punching

Cutter stype:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:3 KW

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery

After-sale service of stud and track roll forming machine

1. The warranty of roll forming machine is two years .after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 40 workdays
3. Port of loading: port of Tianjin
4. Type of payment: by T/T or by L/C


More Roll Forming Machine for reference , welcome to send us Inquiry .

High Speed Metal Stud and Track Roll Forming Machine /Stud Making Machinery
