High Quality Ridge Tile Roofing Ridge Roll Forming Machinery Ridge Tile Forming Machine
Cangzhou Zhongheng Machine Manufacture Co., Ltd.- After-sales Service:Whole Life After Sale Service
- Warranty:Whole Life After Sale Service
- Tile Type:Colored Steel
- Certification:CE
- Condition:New
- Customized:Customized
Base Info
- Model NO.:zh
- Usage:Roof, Wall
- Transmission Method:Electric
- Feature:Glazed Metal Roof Ridge Cap Cold Roll Forming Mach
- Suitable Material:PPGI Gi
- Thickness:0.3-0.8mm
- Width:400mm as Custom Profile
- Voltage:380V
- Speed:10m,Min
- Rollers:45# Steel as Customer Require
- Motor:4kw
- Control:PLC Delta
- Cutting:Hydraulic , Electric
- Key Selling Points:Easy to Operate
- Cutting Blade:Cr12 MOV
- Delivery Time:40 Days
- Transport Package:Plastic File
- Specification:5.8X1.5X1.7M
- Trademark:ZH
- Origin:Hebei, China
- HS Code:8455221000
- Production Capacity:20 Sets Per Month
Description
Basic Info.
Model NO. zh Usage Roof, Wall Transmission Method Electric Feature Glazed Metal Roof Ridge Cap Cold Roll Forming Mach Suitable Material PPGI Gi Thickness 0.3-0.8mm Width 400mm as Custom Profile Voltage 380V Speed 10m/Min Rollers 45# Steel as Customer Require Motor 4kw Control PLC Delta Cutting Hydraulic / Electric Key Selling Points Easy to Operate Cutting Blade Cr12 MOV Delivery Time 40 Days Transport Package Plastic File Specification 5.8X1.5X1.7M Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per MonthProduct Description
High quality Ridge Tile Roofing Ridge Roll Forming Machinery ridge tile forming machineAuto Aluminum Roofing Ridge Cap Making Machine Manufacturer is one most popular type of roll forming machines. It makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 400mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.High quality Ridge Tile Roofing Ridge Roll Forming Machinery ridge tile forming machine Description
Automatic Metal Roof Panel Ridge Cap Roll Forming Machine Parameters
Length of the main part | About7500*1650*1500mm |
Weight of main part | About 2.5 tons |
Voltage | 380V/50HZ/3Phase (as customer`s request) |
Roller fixer | Middle plate welded |
Frame | 350H steel welded |
Middle plate thickness | 20mm/18mm/16mm/14mm/12mm |
Drive mode | Chain Drice//Gear Drive |
Material of rollers | 45# steel, surface hard chromium plating. |
Material of shafts | 45# steel |
Diameter of shafts | Φ70mm(depend on different design) |
Number of rollers: | 14 rollers |
Main power | 5.5kw |
Cutting&Hydraulic | Double guide pillar |
Hydraulic motor power | 3kw, 4kw |
Hydraulic Pressure | 10-12MPa |
Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
Control System | PLC system: Mitsubishi, Panasonic,Dental,Siemens |
Feeding Material width | Better as your drawing or from our designer |
Feeding Thickness | 0.3-0.6mm |
Effective width | Better as your drawing or from our designer |
Productivity | 8-12m/min |
Package of machine | Waterproofing membrane, standard export packing |

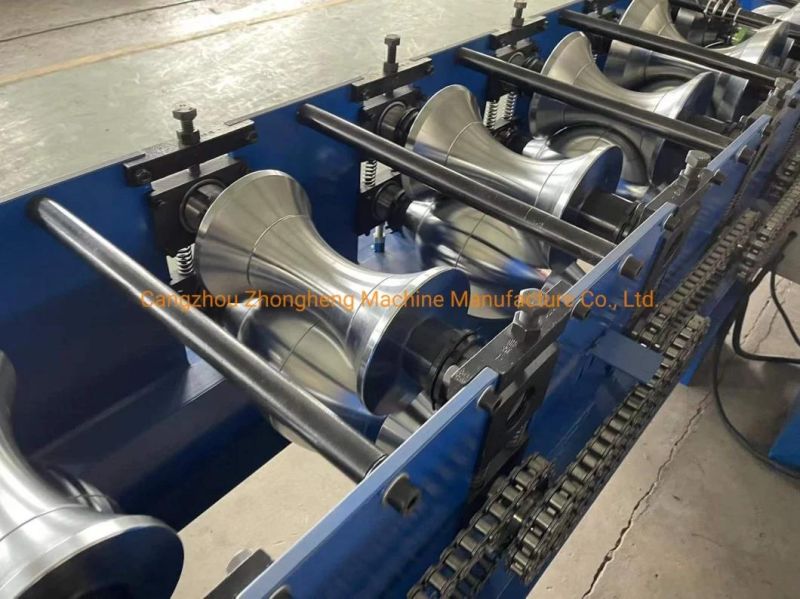

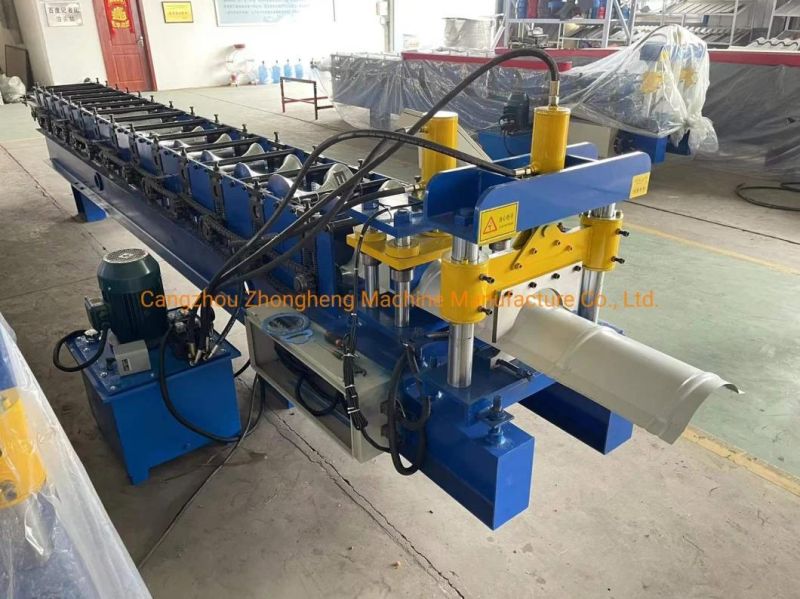

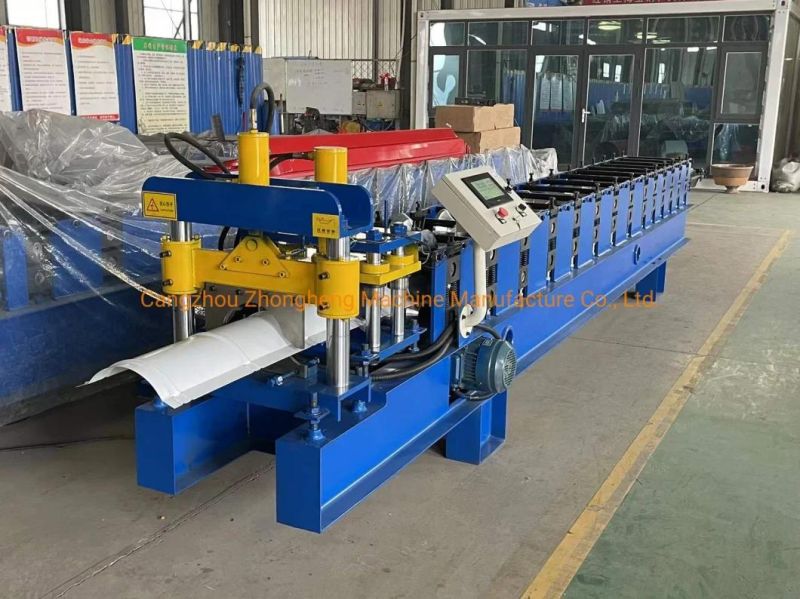

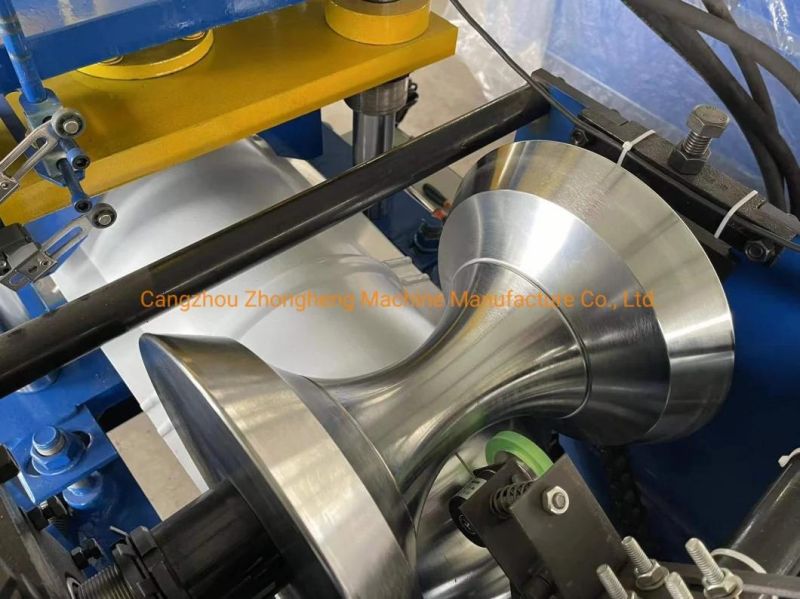

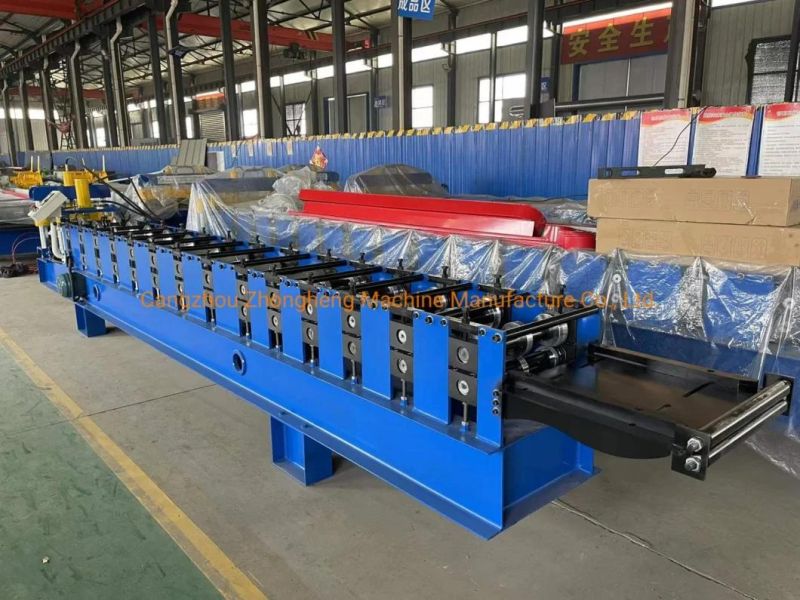

Detailed Photos
Packing and Shipping
1. Automatic Metal Roof Panel Ridge Cap Roll Forming Machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

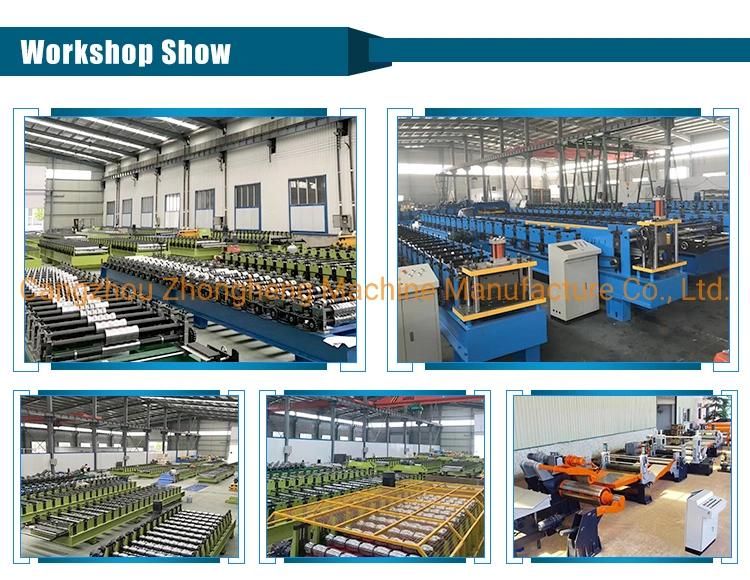

Company Introduction
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
More information please send inquiry to us , you will get reply within 12 hours !
