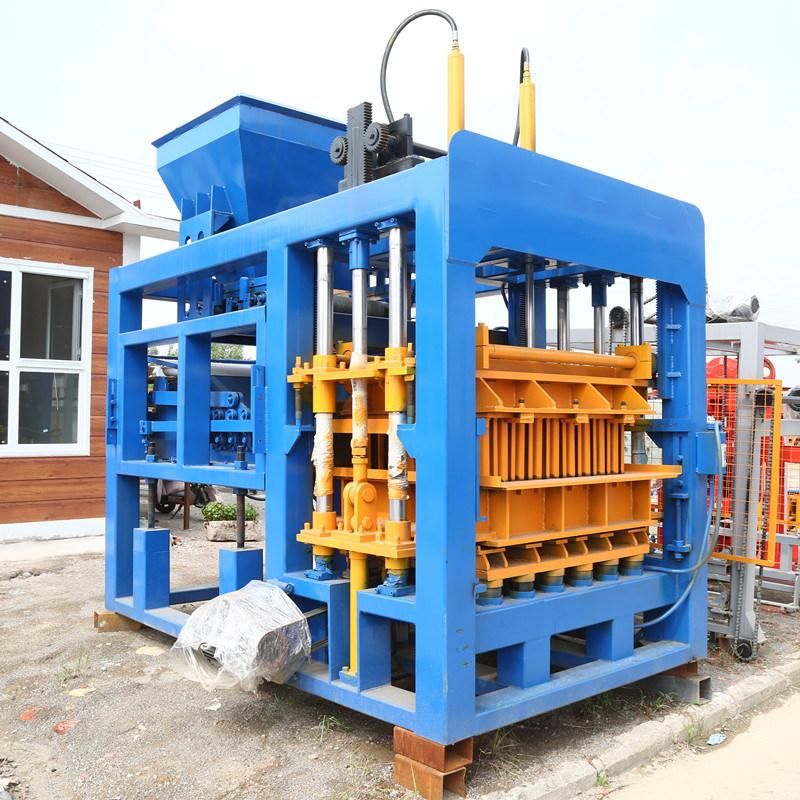

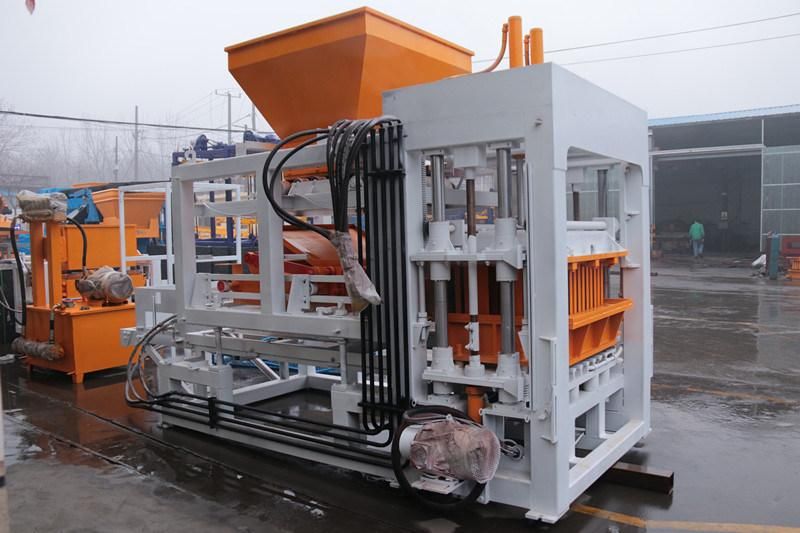

Qt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming Machine

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydroforming
  • Weight of Host Machine：8t
  • Water Consumption：5-8t

Base Info

  • Model NO.：QT6-15
  • Pallet Size：830*940*25mm

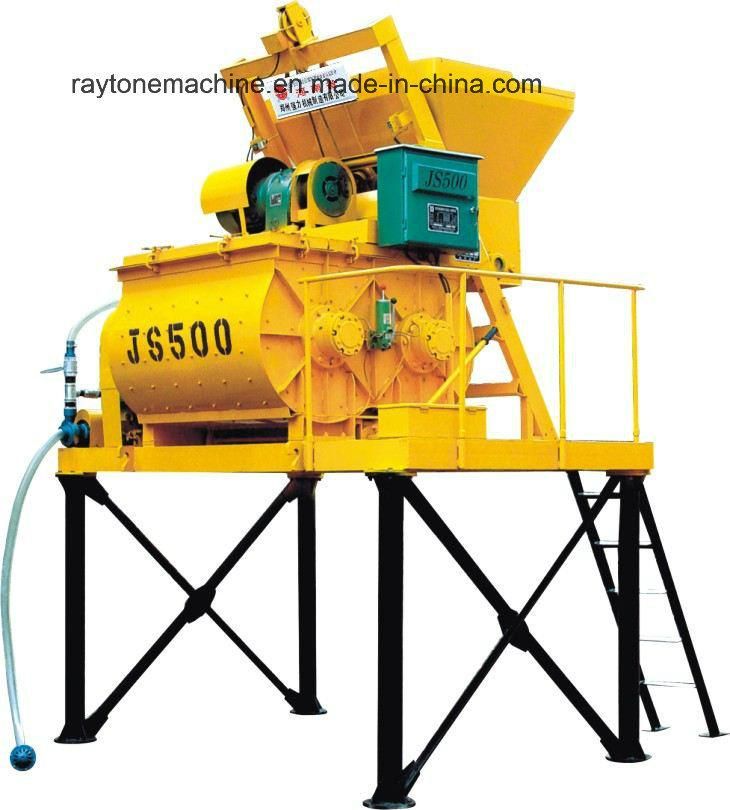

  • Model of Mixer：Js500
  • Vibration Force：50-60 Kn
  • Power of Host Machine：29.1 Kw
  • Color：as Required
  • Conditions：New
  • Workshop：260m2
  • Brick Raw Material：Concrete
  • Transport Package：Suitable for Sea Transportation
  • Specification：3500*1700*2930mm
  • Trademark：RAYTONE MACHINERY
  • Origin：Shandong, China(Mainland)
  • HS Code：84748090
  • Production Capacity：10800-12600PCS,Shift for 400*200*200 mm Block

Description

1 6Host machine power29.85kw2Weight of host machine8T7Vibration force60KN3Molding area861x8808Mixer modelJS5004Water consumption5-8Ton/day9Pallet size830x940x25mm5workshop area250-300m210Voltage380/415/440Qt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming Machine
Theoretical production capacityNoSize(LxWxH)Reference picPcs/MouldPcs/HourPcs/Shift1400x200x200mm 61080-12608640-100802400x100x200mm 122160-252017280-201603400x150x200mm 81440-192011520-153604400x250x200mm 4720-8405760-67205230x110x70mm 305400-630043200-504006200x100x60 244320345607200x163x60 16288023040Detailed pictures

Qt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming Machine


Qt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming MachineQt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming MachineQt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming Machine
machine advantage
1.This model hollow mahcine completely use PLC systems, human-computer interface and Chinese/English menu. It integrated with the advanced international mechanic, hydraulic and automatic technologies. Its easy for workers to communicate with the machine through color screen touch control system. The parameter is adjustable any time in accordance with the change of products and materials. it can analyze signal random, diagnosis fault and set parameter, this ensure the best work of the machine;
2.About the electricity motor ,in Mixer and host machine ,we will use Germany siemens motor ,because this two part nearly working all time in working day ,so we could use high level hard wearing motor for this ,and ther motor we will also use CE standard motor ,
3.About the switches ,we will select the France brand , it is could assure the working process smoothly .
4.The Control System Using computer control and man-machine interface. Electrical equipments apply the well-known brands from Japan and Germany, like Japan Mitsubishi .
5.The brick mould of brick making machine, in order to prolong the life of brick mould, we use the newest high temperature carburizing heat treatment technology, the quality is good.
 6.Hydraulic system :Hydraulic components made in Taiwan, we use high-dynamic proportional and directional valves, which automatically adjust the oil flux and pressure as per specific working requirements, this design greatly prevent the cylinder from damage.

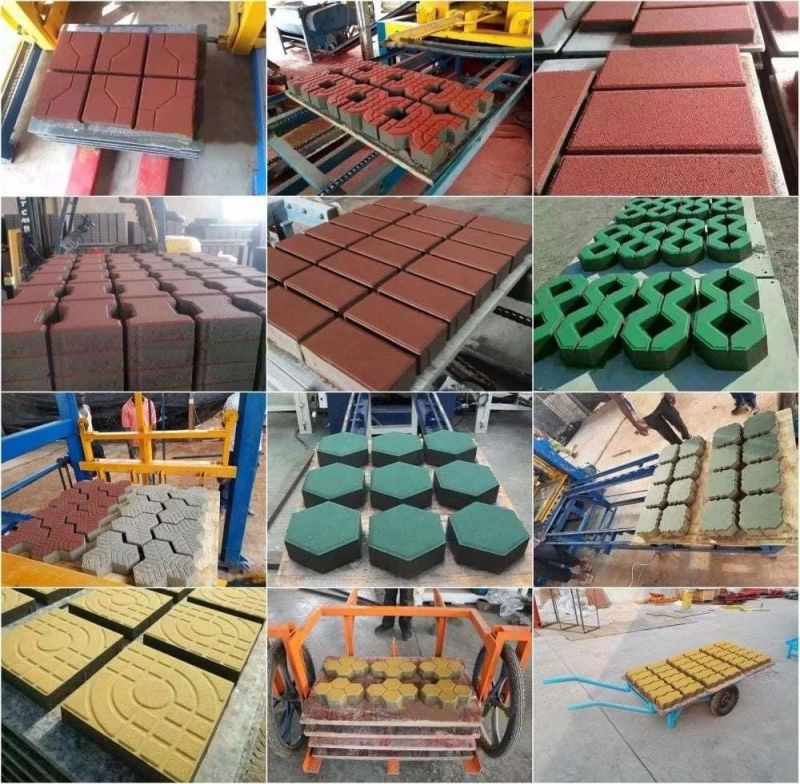

Block sample
 Qt6-15 Fully Automatic Brick Pressing Machine Automatic Paver Brick Forming Machine

After-sale Service
We have our own technician team to do the machine installation for automatic brick machine line, and for some semi-automatic or manual block machine, normally user can operate the machine well, if technician is required, we can also meet the demand.
And we provide 7*24 hours online service during after and before sales service.

Welcome contact us if you are interested in our block making machine .
