• Model NO.：zh
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Speed：10m,Min
• Motor：7.5kw
• Servo Motor：1.5kw
• Rollers：Cr12
• Cutting：Non Stop
• Blade：Cr12 MOV
• Voltage：380V
• Control System：PLC Delta
• Decoiler：2.5ton
• Delivery Time：30 Days
• Transport Package：Full Assmebled
• Specification：4.5X0.85X1.4
• Trademark：ZH
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

Aluminum Rain Water Gutter Making Machine/Galvanized Gutter Roll Forming MachineryRolling speed15-20m/min(not include cutting time)Rolling thickness0.3-0.6mmRaw materialGalvanized steel sheetdimension5500×1600×1500(mm)Effective width100mmRoller stations18 stationsOne stage for embossingRoller material45#forge steel, coated with chromeShaft diameterΦ65mm,material is 45# forge steelTransmissionBy chain1 inchMaterial of chain45# forged steel with frequency quenching, 12AMaterial of cuttingCr12Mov with quench HRC58-62°Tolerance6m+-1.5mmFrameH type steel
Material

Effective width:About 150 mm
Material Thickness:0.3-0.6mm
Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390Mpa


Work Follow

Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Cutting → Exit Rack

Machine Components

Manual Decoiler  1 Set

Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons*2



Main Roll forming machine

With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm
Shafts Diameter=ф65mm,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor=4KW , Frequency speed control
All the screw bolts with grade 8.8
Real forming speed 12-15 m/min(Not include cutting time)




Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW ;
Cutting tool material:Cr12MoV, Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station

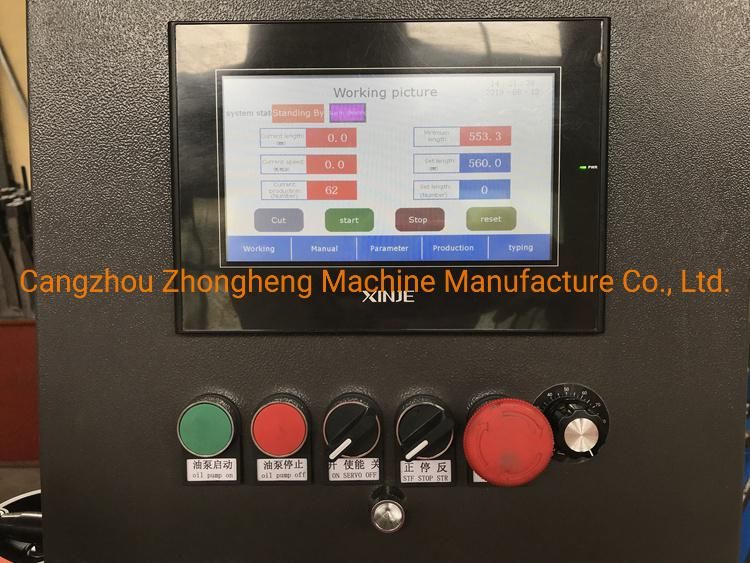

Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc


After-sale service of Automatic Greenhouse Rain Gutter Roll Forming Machine

1. The warranty of roll forming machine is two years .after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 40 workdays
3. Port of loading: port of Tianjin
4. Type of payment: by T/T or by L/C

More Roll Forming Machine for reference , welcome to send us Inquiry .
