Qt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick Plant

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydroforming
  • Voltage：220V,380V
  • Main Vibration Form：Platform Vibration

Base Info

  • Model NO.：QT12-15
  • Pallet Size：1300*900mm
  • Cycle Time：15-20s
  • Host Machine Matched Power：44kw
  • Rated Pressure：21MPa
  • After-Sales Service Provided：Engineers Available to Service
  • Brick Raw Material：Concrete
  • Transport Package：Suitable for Sea Transport
  • Specification：9350*2520*2950mm
  • Trademark：Raytone machinery
  • Origin：Shandong, China (Mainland)
  • HS Code：8474802000
  • Production Capacity：50 Set,Sets Per Month

Description

Qt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick PlantSome country may only have the cement in bags, not having bulk cement, so the cement silo is optional equipment. And for countries have bulk cement, the client can choose one or two sets cement silo as per their daily block capacity. Length : 8 Meters, Power: 11KW; the diameter: 219mm
or Length: 6 Meters, Power: 7.5KW; the diameter: 219mm

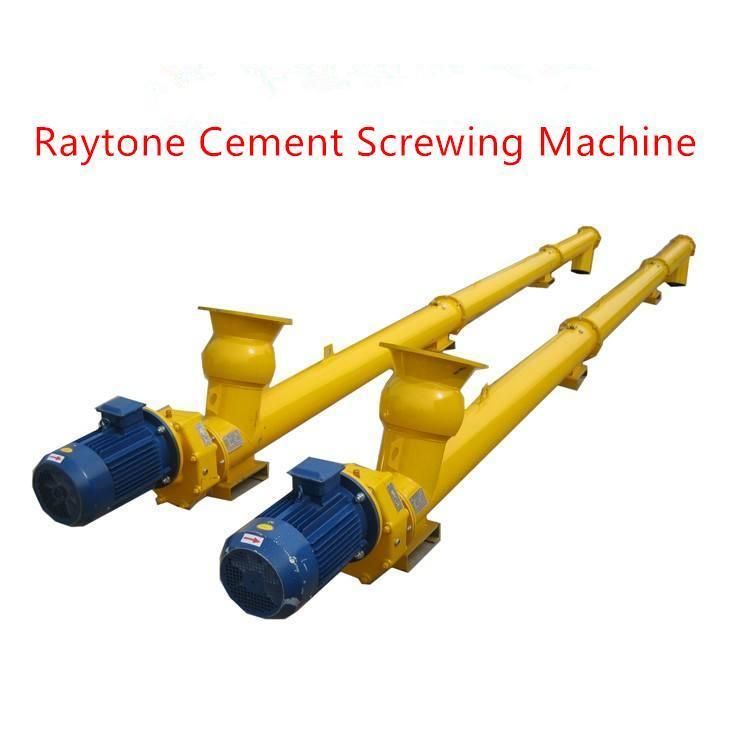

The cement screwing machine is used to screw the cement
from cement silo to the cement scale, which is installed on
the JS750 concrete mixer;Qt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick Plant


  1.  cement scale for QT12-15 full automatic block machine
The cement scale is installed on the concrete mixer, it can weigh 150KG per batch, after weighing, the cement is discharged into concrete mixer directly, this will make the proportion accurate
Qt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick Plant
(4) PLD1200 three hopper batching machine for QT12-15 full automatic block machineQt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick PlantLength: 7000mm; width: 500mm, power: 2.2KW; cycloidal needle wheel type motor;

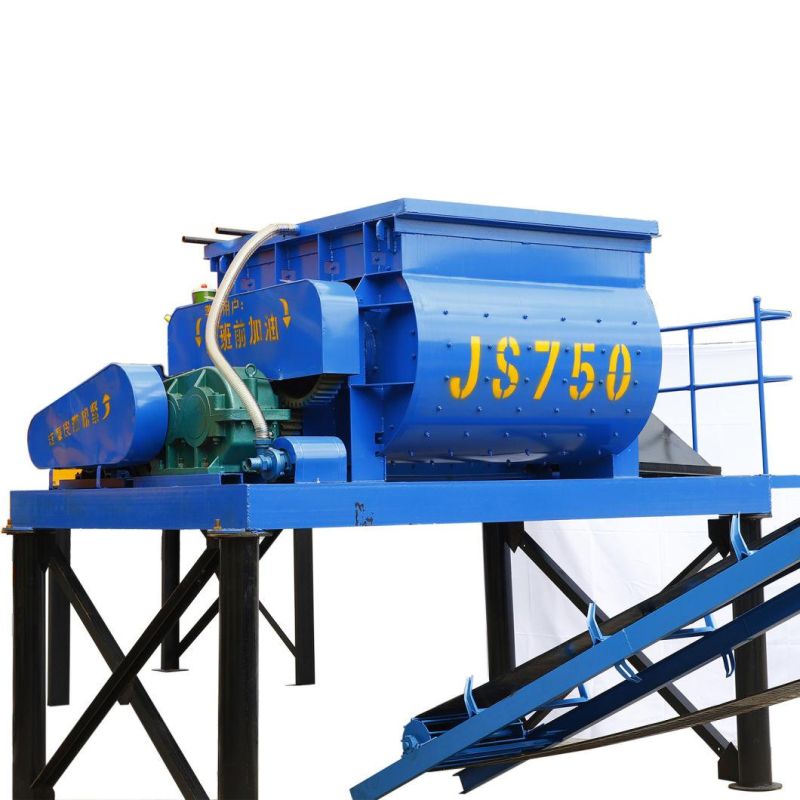

(6)JS750 Concrete Mixer for QT12-15 automatic brick machine
Charging Volume1200LDischarging Volume750L
Aggregate Size:≤60/80mmCapacity35 Cubic meters/hour
Working Circle60SMixing Speed35R/M
pump motor1.1kwMixing Blade2*8
mixing motor30KWDimension4550*2250*2450mm
Machine weight5500kg
There are two models of JS750 concrete mixer,
 one is with elevator hopper, the other one is without
 elevator hopper, the JS750 concrete mixer without

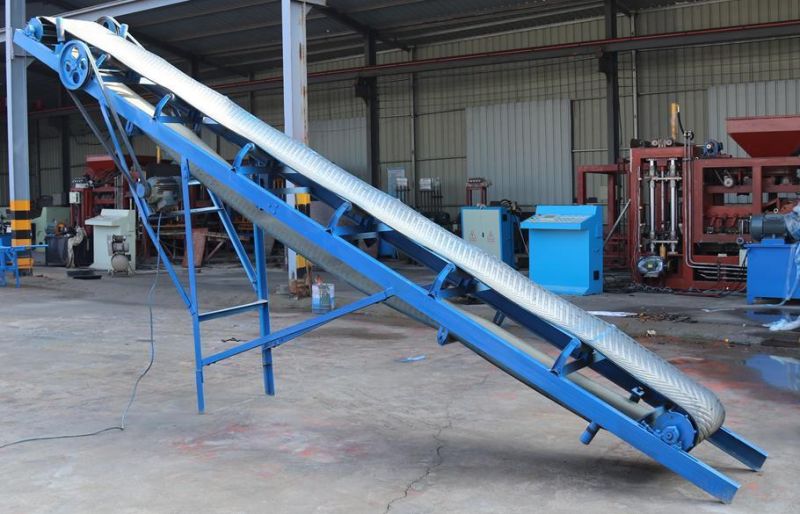

 elevator is using fast belt conveying machine to
feed raw materials into the mixer;

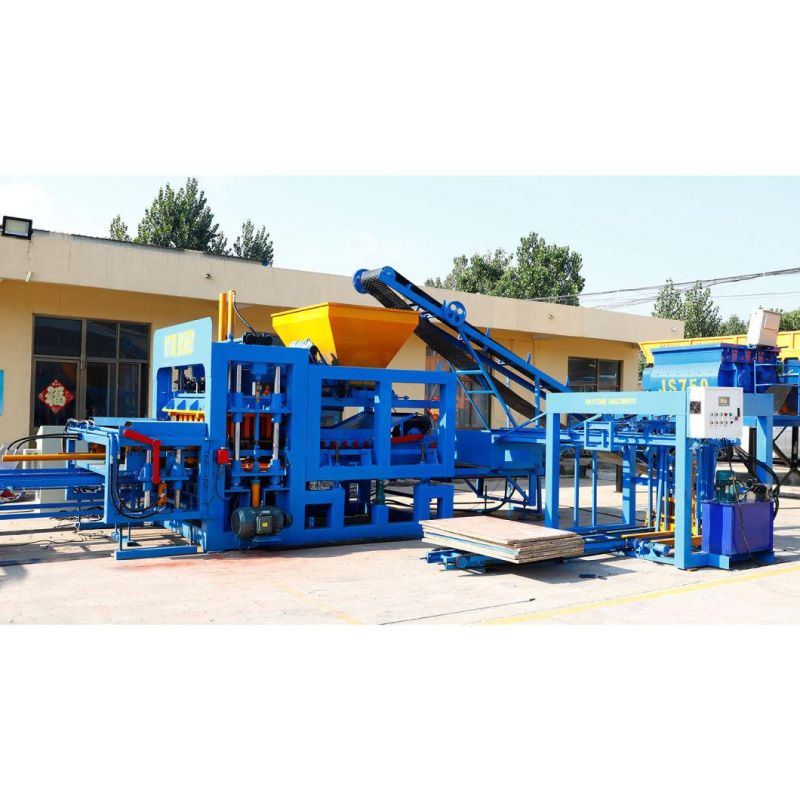

(7) Host QT12-15 Big Automatic Block Machine
<1> The main parameters of QT12-15 big Automatic block machine
Dimension of host machine9400*3060*2980mmwater Consumption14T/day
Weight of the host machine12.5TVoltagecustomized
Moulding period12-20STotal required machine power107.8
pallet size1400*900*30mmDiesel Genset capacity120KVA
Vibration force100KNworkshop area250-300 m2
labour3Land Area2500-6500 m2
Qt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick Plant

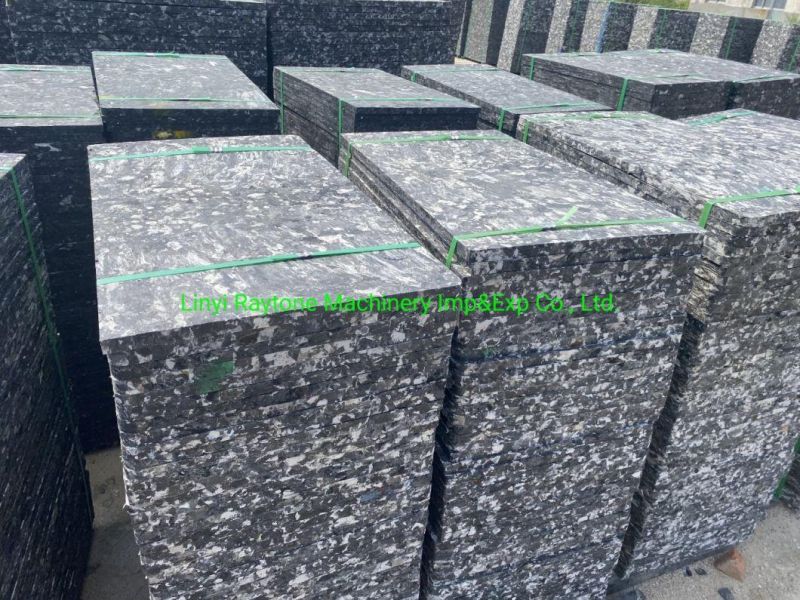

(8) GMT brick Pallets for QT12-15 automatic brick machine
The GMT block pallet is made from the leftovers of car inner roof decorations, seats and some adhesive etc. It is like PVC brick pallet , but better performance and cheap cost than PVC brick pallet, it is strong enough for block machine, life can be 6-8 years.

9.Why choose our block machine?
(1) For the steel raw materials , our block machine is buying from China standard big steel factory to guarantee the raw materials quality first.
(2) For the welding, our block machine manufacture workers are very experienced and skilled. They have many years work experience in brick machine making.
(3) For the PLC control panel, client can choose Germany Siemens brand, the hydraulic electromagnetic valves, our block machine provides standard Taiwan CLYCA brand, but client can choose Japan YUKEN brand for optional, also for the sensor, our block machine is using Japan Omron brand;

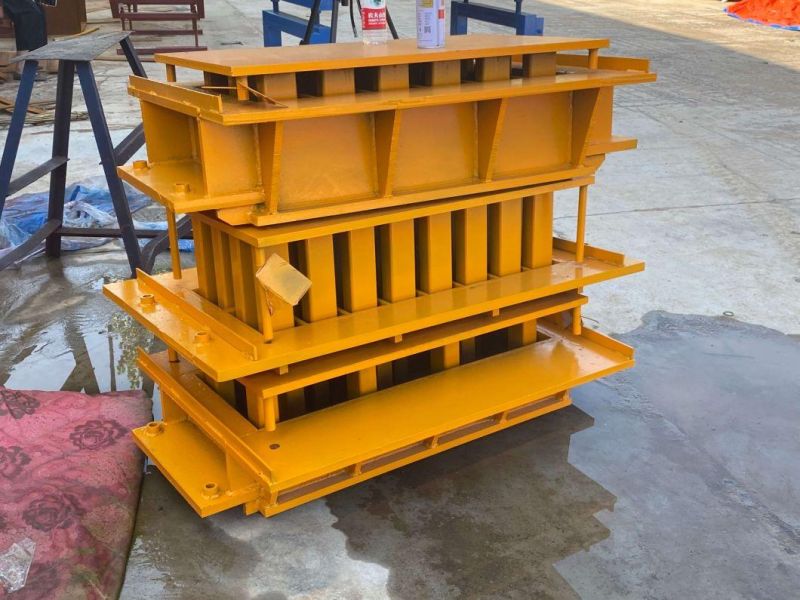

(4) our block machine is using high manganese steel for block moulds, and strictly via Linear cutting , carbonized and heat treatment procedures, to make sure the block mould is with enough hardness for long life.
(5) our block machine design is advanced by reasonable raw material distributing system, Synchronous mould lift structure and vibration system;
Qt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick PlantQt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick PlantQt12-15 Full Automatic Solid Brick Making Plant Hydraulic Brick Plant
Welcome contact us if you are interested in our block making machine .
