Automatic Aluzinc Steel Shutter Door Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:15 Months
  • Tile Type:Colored Steel

Base Info

  • Model NO.:NM1329
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Wall
  • Transmission Method:Electric
  • Name:Automatic Steel Shutter Door Roll Forming Machine
  • Raw Material:PPGI Sheet
  • Thickness Range:0.3-0.8mm
  • Machine Power:5.5kw+3kw
  • Work Speed:10-15m,Min
  • Operation Type:Touching Screen
  • PLC Brand:Panasonic,Siemens
  • Machine Weight:About 5 Tons
  • Afer-Sales Service:Engineer Is Availble to Overseas
  • Transport Package:Plastic Film & Steel Wire Fixed
  • Specification:6300mm*1500mm*1500mm(L*W*H)
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:30 Sets , Months
  • Package size per unit product:650.00cm * 150.00cm * 180.00cm
  • Gross weight per unit product:5000.000kg


Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm
Main motor power5.5kw
Drive1'' single chain
Type:Wall board
Main shaft dia¢70mm
material45forge steel and quenched
Roller material45# high grade forge steel ,chrome coated 0.05mm
Roll station13 groups-16 groups
Raw material0.3-0.8mm
Coil width 1000mm
Working speed10m--15m/min(Exclude cutting time)
Length Tolerance±1.5mm
Weight of machineAbout 5 ton
Size of machineAbout 7500×1800×1500mm L x W x H
Color of machineYellow and Blue
CoderOmron, made in Japan
ControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating paneltouching screen
Other electrical elementSchneider
CuttingHydraulic cutting. Auto cutting when reach the set length
Hydraulic power3KW
Blade materialCr12mov,quenched 58°-62°
Working pressure16mpa
Cutting tolerance+/- 1.0mm

3. Equipment list :
No.Product Name       QTY
15T Manual decoiler          1
2Main Roll Forming Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)
3Passive Output table          2
Sum           4

4. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

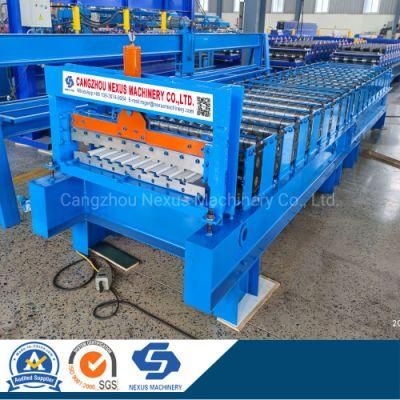

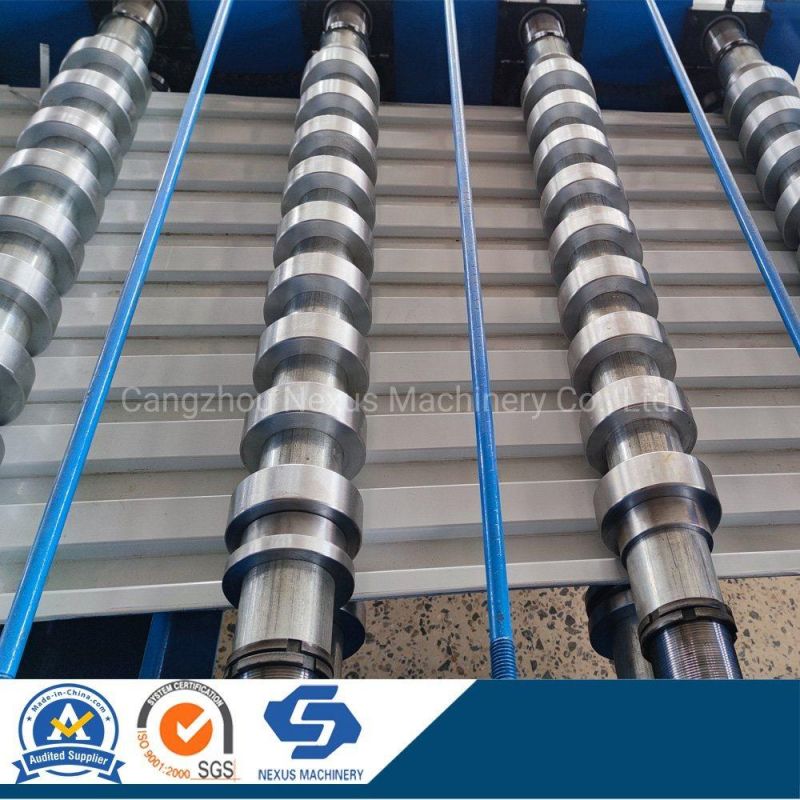

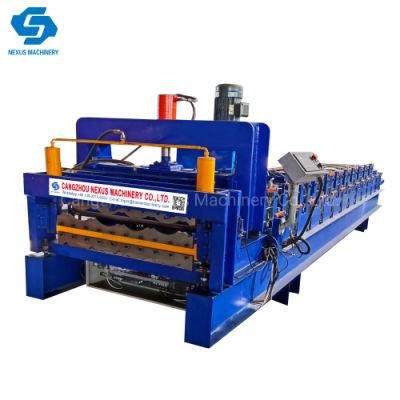

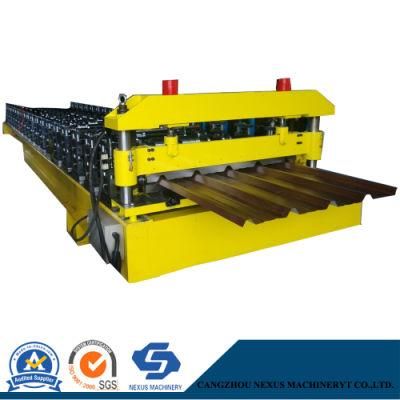

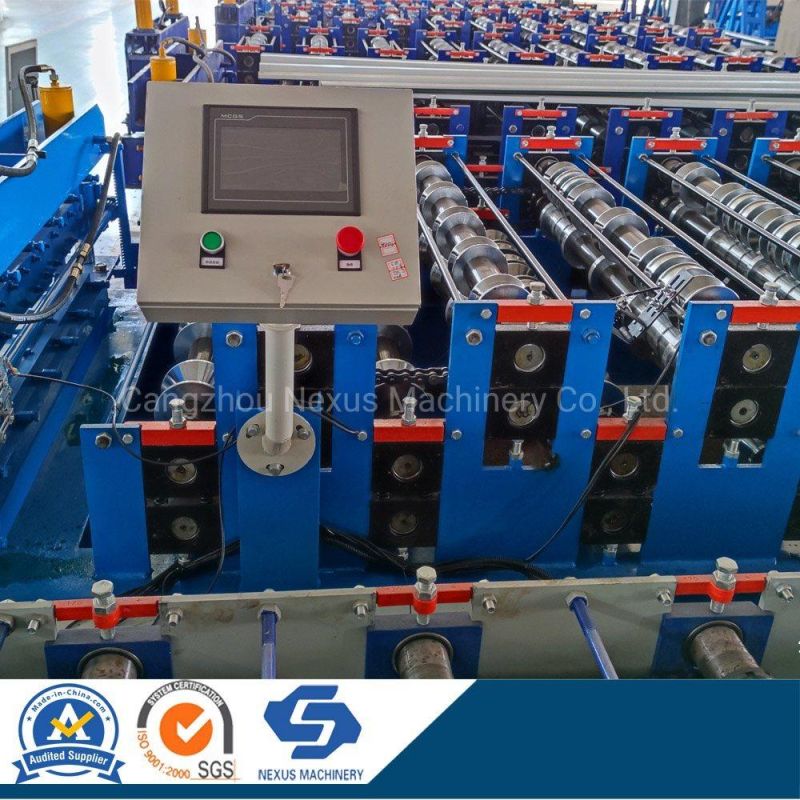

5. Machine Photos of for Reference:
Automatic Aluzinc Steel Shutter Door Roll Forming MachineAutomatic Aluzinc Steel Shutter Door Roll Forming MachineAutomatic Aluzinc Steel Shutter Door Roll Forming MachineAutomatic Aluzinc Steel Shutter Door Roll Forming MachineAutomatic Aluzinc Steel Shutter Door Roll Forming Machine
Fair Photos of Cangzhou Nexus Machinery Company:

Automatic Aluzinc Steel Shutter Door Roll Forming Machine
Machine Loading Photos:
Automatic Aluzinc Steel Shutter Door Roll Forming Machine


Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
