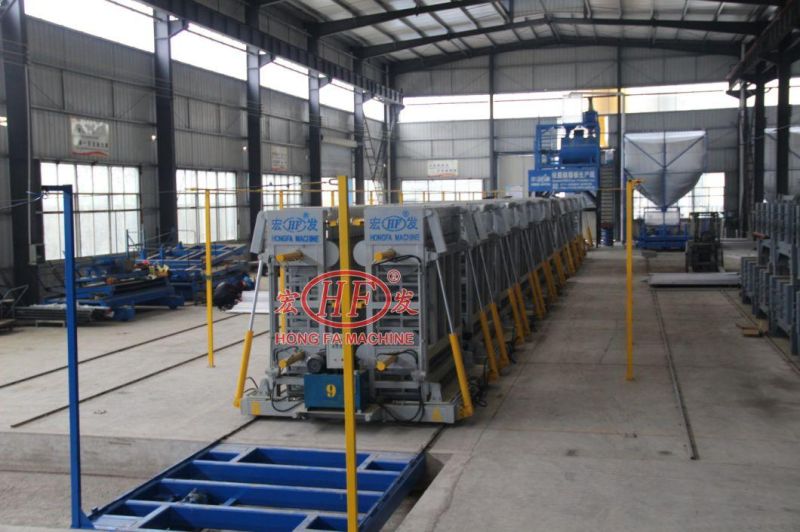

Hongfa Hollow and Solid Gypsum Board Wall Panel Production Line
Guangxi Hongfa Heavy Machinery Co., Ltd.- After-sales Service：Engineer Can Go to Install
- Warranty：1 Year
- Product Type：Concrete Wall Panel Machine
- Automatic Grade：Automatic
- Power Source：Electric
- Certification：CE, ISO
Base Info
- Model NO.：EPS
- Condition：New
- Application：Produce Wall Panel
- Power：380V or 220V
- Light Weight EPS Wall Panel：550kg ---650kg
- Thickness of The Light Weight Wall Panel：50mm, 60mm, 75mm, 90mm, 100mm, 125mm, 150mm
- Grade：7
- Transport Package：Export Standard
- Specification：2440X610mm
- Trademark：Hongfa
- Origin：Guangxi, China (Mainland)
- HS Code：8474802000
- Production Capacity：50,000-1,000,000m2,Year, 50,000-1,000,000m2,Year
Description
Main Feasture:
(1)The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
(2) With the same machine, it can adjust the panel size and thickness. The thickness will be from 60 to 180mm.
(3) The closed constant pressure foamng barrel features of high heating efficiency and saves stem.
(4)High precise guiding pressure reducing valve controls the temperature and steam pressure of the closed barrel, ensuring the outcome pressure of the valve constant and the inner temperature controlled wihin ±1%, which keeps the foamed material equal and prevents the bead agglomerate because of the bad temperature control.
(5)With photoelectric or vibration sensor to control material level, ensuring density tolerance within ±3%.
(6)The machine is equipped with fluidized bed dryer, including drying, automatic sieving, depluming and material conveying to silos.
(7)Most components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
(8)The machine can realize the primary and second expansion.
