• Model NO.：GCGZ-CNC-7000
• CNC Axis Numbers：3
• Function：Milling Drilling Aluminium Profile
• Tool Magazine：12 Tools
• CNC Control System：Siemens
• Advantage：Dual Worktalbe, High Efficiency
• Maximum Work Length：9 Meters
• Electrical Spindle：Hsd From Italy
• Transport Package：Pallet
• Specification：11300x2350x2550mm
• Trademark：TIANCHEN
• Origin：China
• HS Code：8461409000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. GCGZ-CNC-7000 CNC Axis Numbers 3 Function Milling Drilling Aluminium Profile Tool Magazine 12 Tools CNC Control System Siemens Advantage Dual Worktalbe, High Efficiency Maximum Work Length 9 Meters Electrical Spindle Hsd From Italy Transport Package Pallet Specification 11300x2350x2550mm Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/Year

Product Description

 Aluminum Milling Drilling 3 Axis CNC Machining Center  Model: GCGZ-CNC-7000
Product DescriptionApplicable for milling and cutting processing for various holes and slots of aluminum window and door curtain wall or industrial aluminum profile.
Features & Advantages

• Adopting SIEMENS high performance CNC system, coordinated with three-dimensional programming software, perfectly realized the milling process.
•

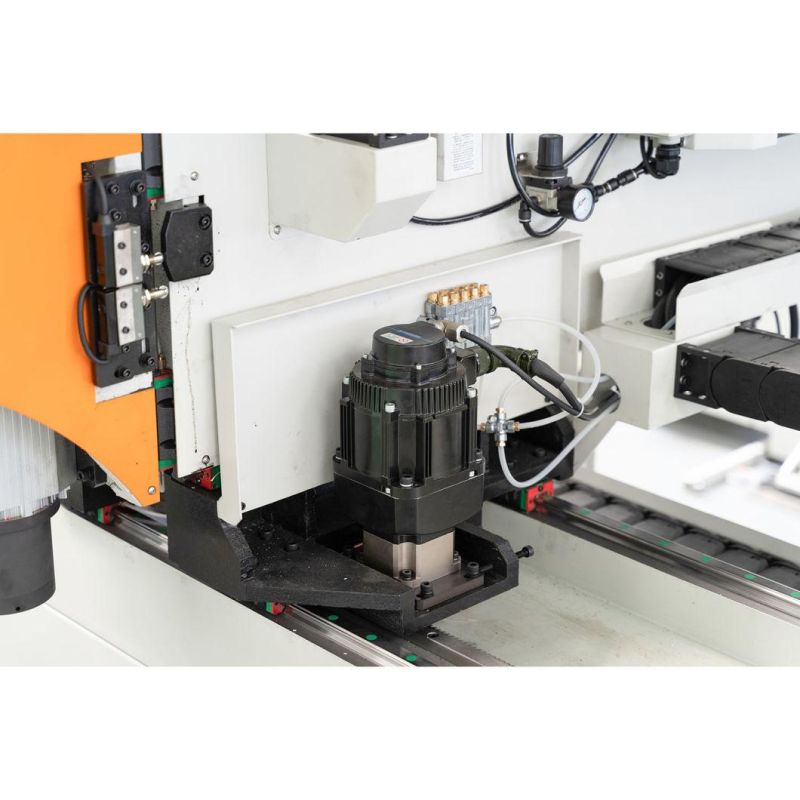

• Adopting original imported high quality servo motor, high quality ball screw, linear guide rail pair, bearing and other parts to make sure a high processing accuracy.
•


• The fixture can be located freely.
•

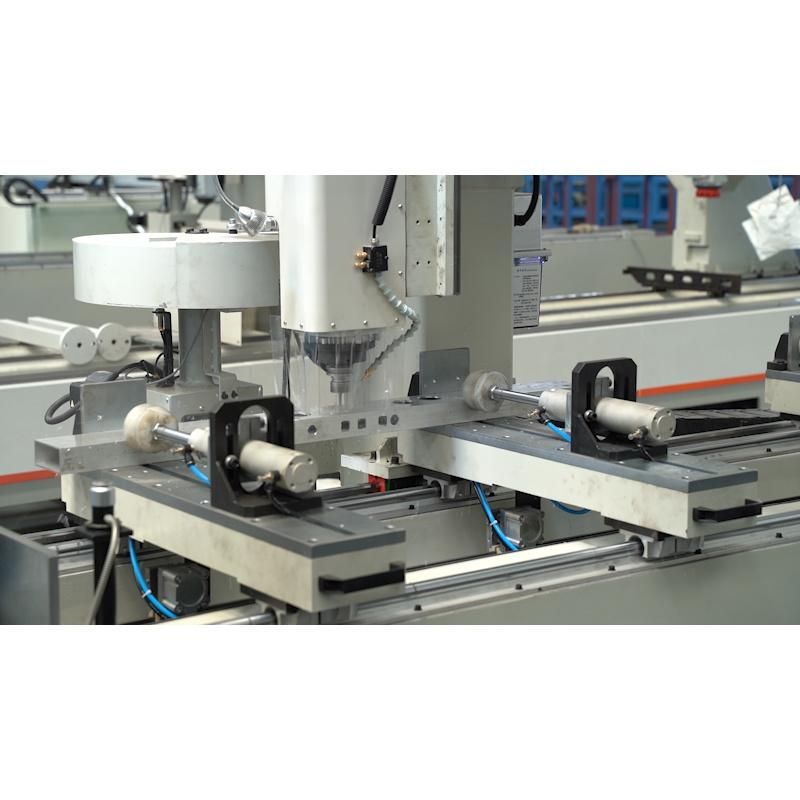

• Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.
•
• Equipped with 12 position cutting tool, and able to automatically changing tools.
  •

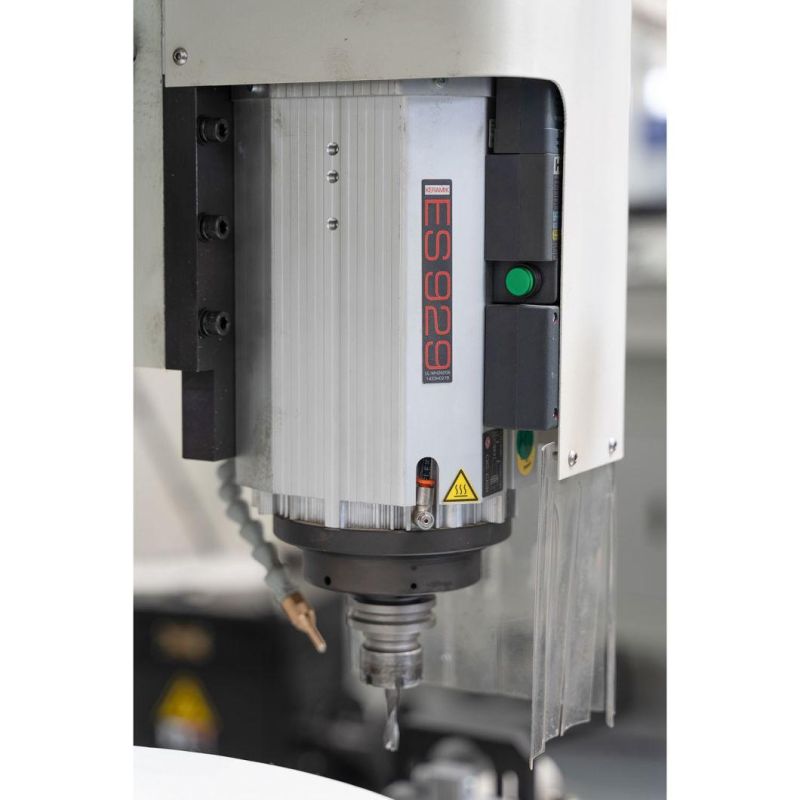

  • Adopting high speed electrical spindle imported from Italy, able to finished the process of milling and drilling in various figure on aluminium profiles
  •
  •
  • A 9 meter extra length model can be customized.
  Technical Parameters

  X-axis Range	7000mm
  Y-axis Range	1300mm
  Z-axis Range	550mm
  X-axis Speed	0~60m/min
  Y-axis Speed	0~30m/min
  Z-axis Speed	0~20m/min
  Main shaft Rev./power	0~18000rpm/7.5kw
  Cutter Magazine	12 cutter positions, cutters auto-change is available in the program
  Cutter Max length	165mm
  Total Power	12KW
  Clamp Station	8
  Work Area(W x H x L)	500x250x7000mm
  Contour Dimension (W x H x L)	11300x2350x2550mm
  Weight	about 4500kg











•
